OEM Electrical Wiring Diagram Introduction - Fusion (Hybrid/ENERGI): Introduction

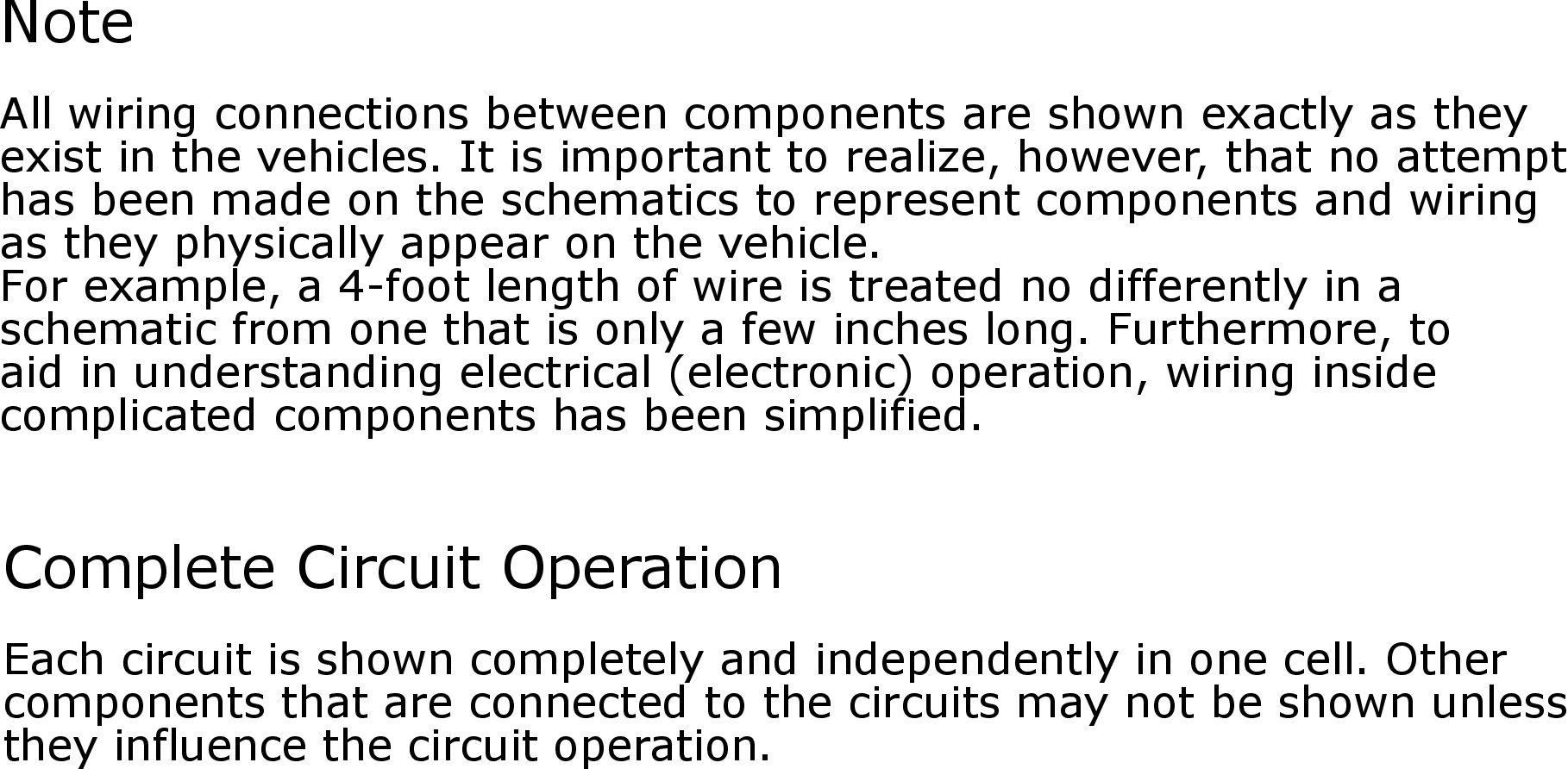

GFDW80872Courtesy of FORD MOTOR COMPANY

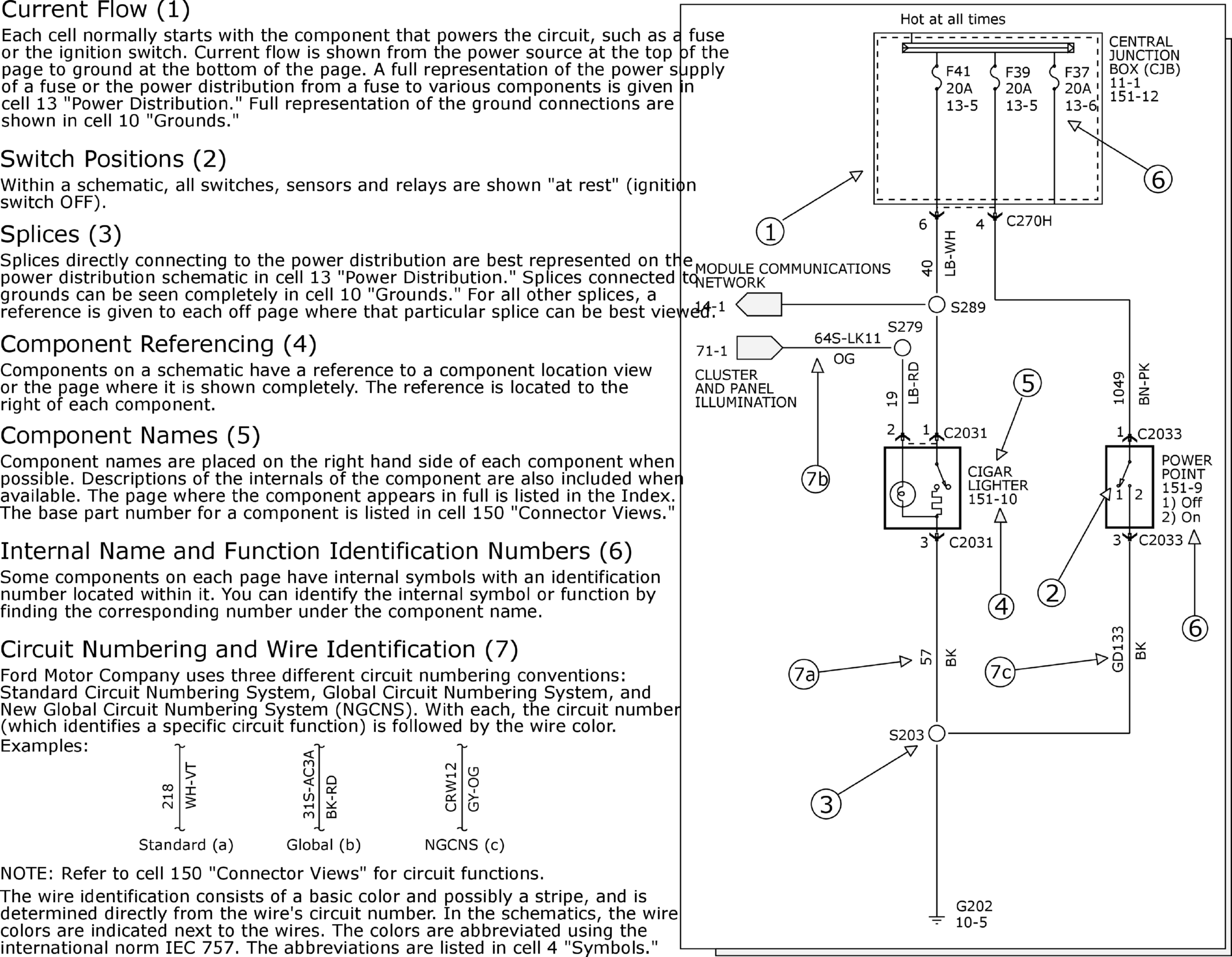

GFDW80873Courtesy of FORD MOTOR COMPANY

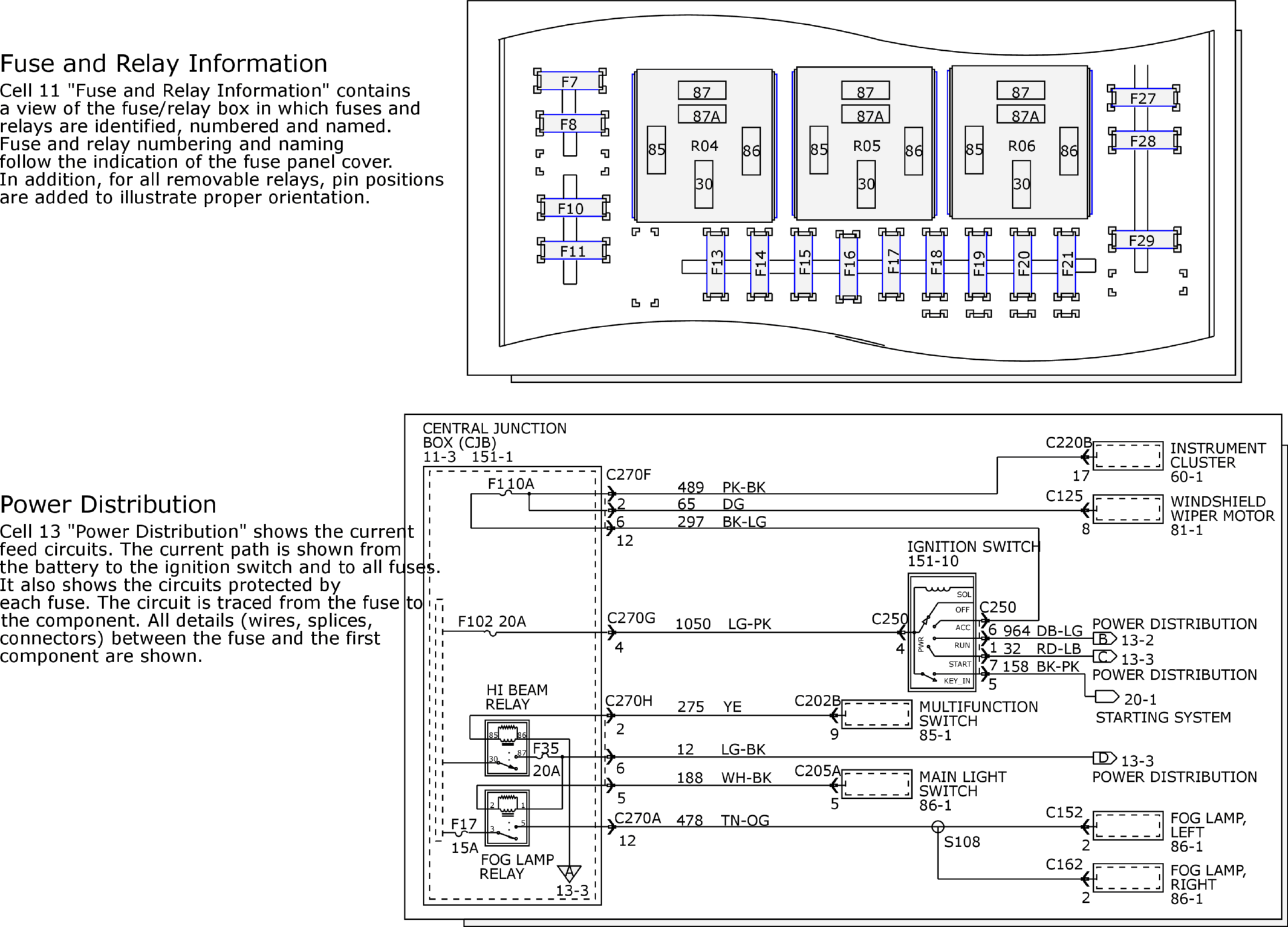

GFDW80874Courtesy of FORD MOTOR COMPANY

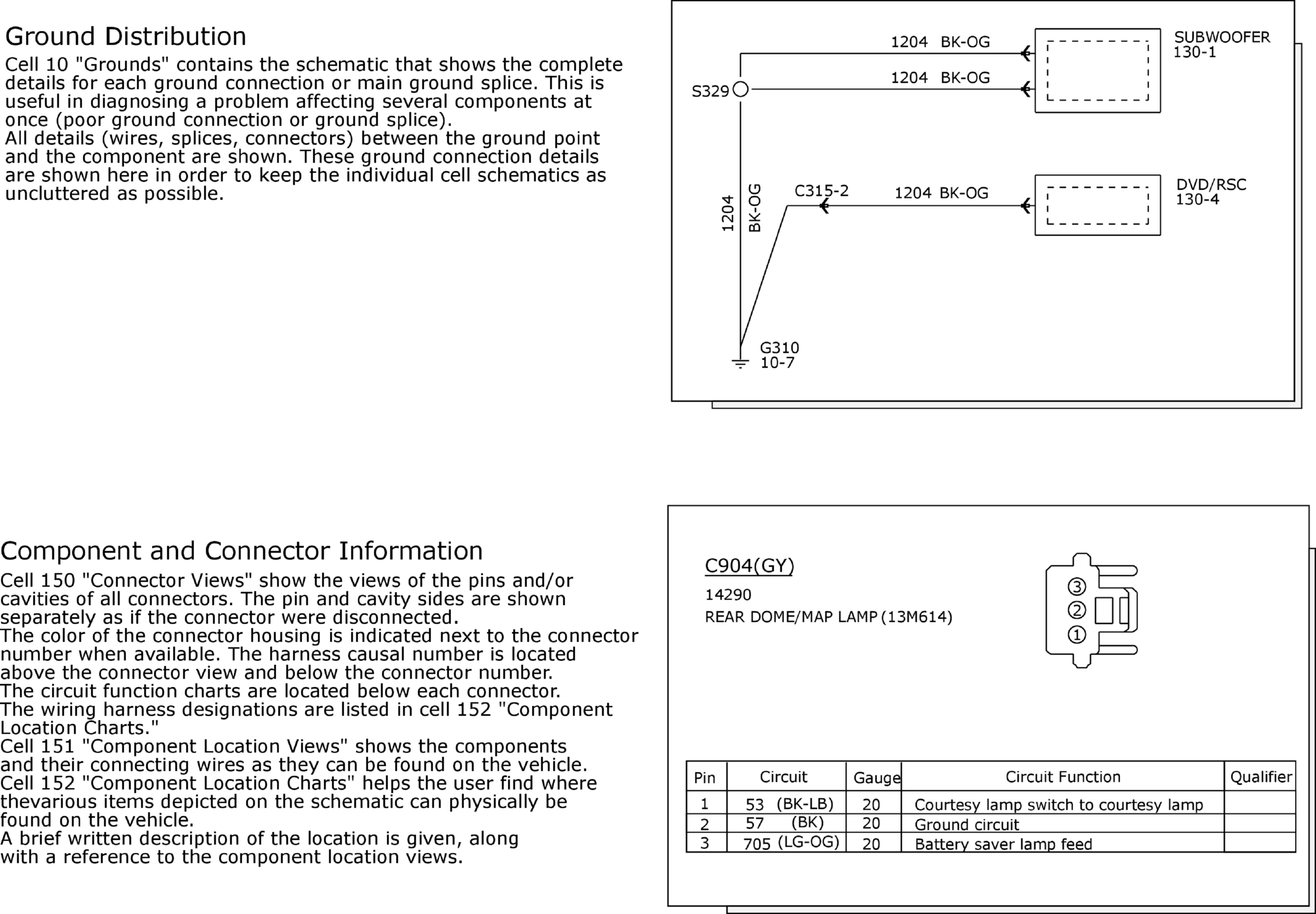

GFDW80875Courtesy of FORD MOTOR COMPANY

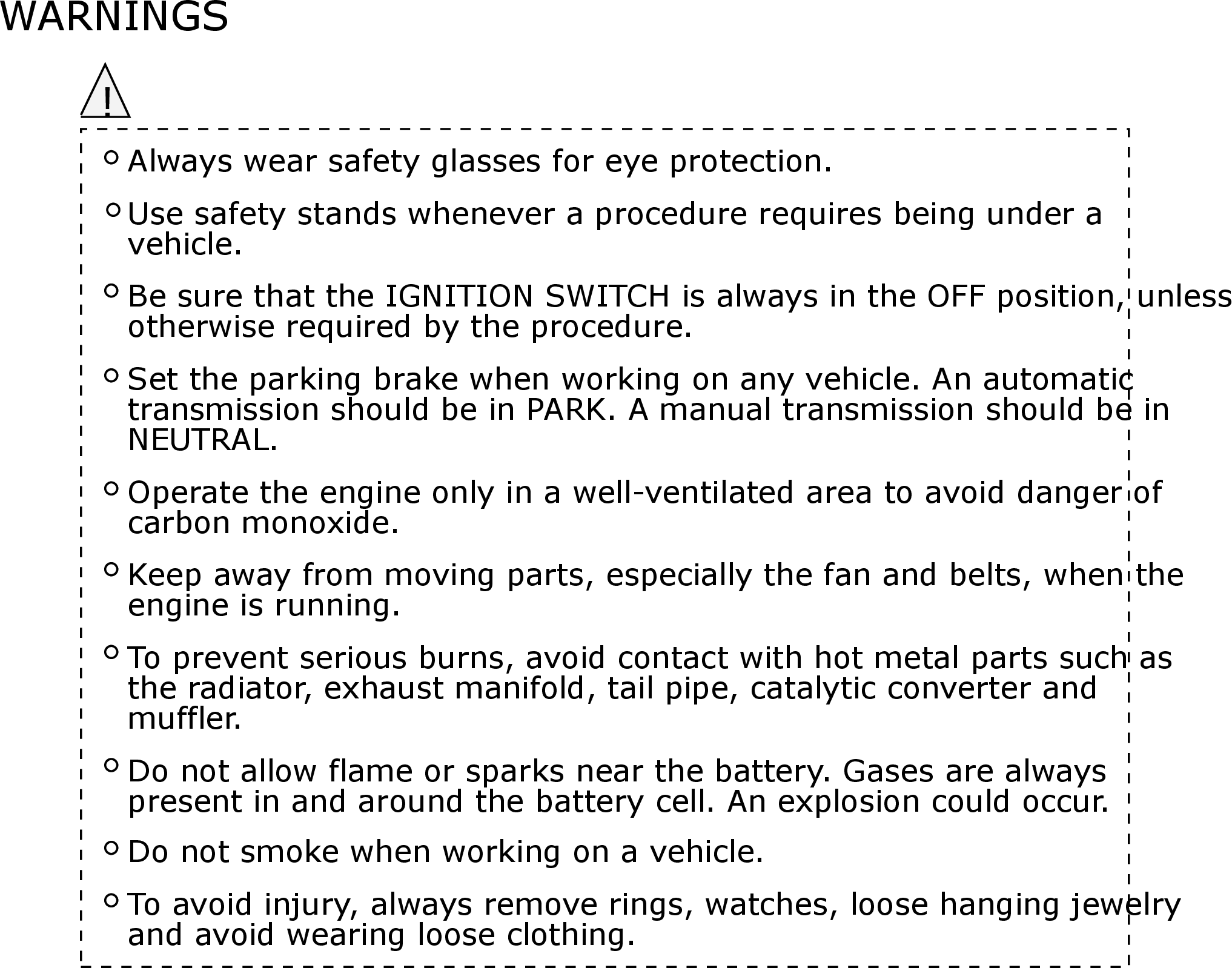

GFDW80876Courtesy of FORD MOTOR COMPANY
