Front Bumper Cover: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front wheel and tire assemblies. Refer to: Wheel And Tire .

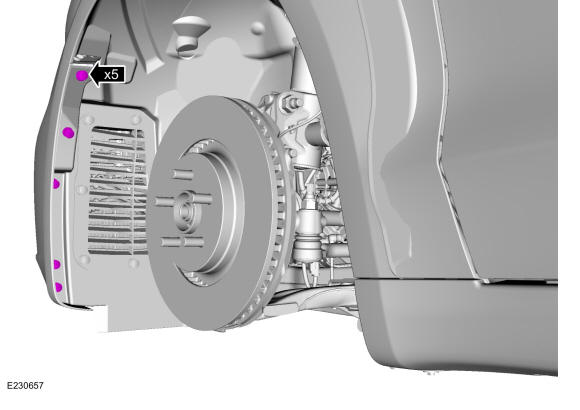

  2. Remove the plastic rivets from the front of the fender liner.
    GFD199625Courtesy of FORD MOTOR COMPANY

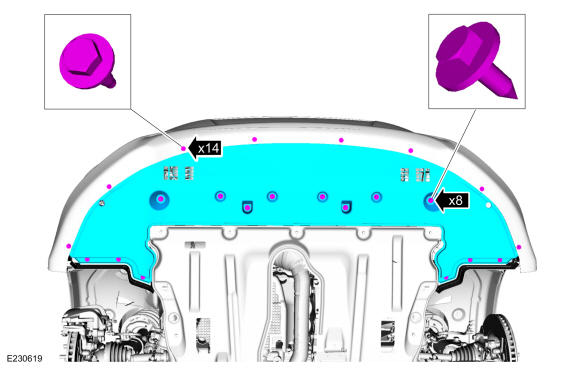

  3. Remove the screws and the lower radiator closeout.
    GFD199626Courtesy of FORD MOTOR COMPANY

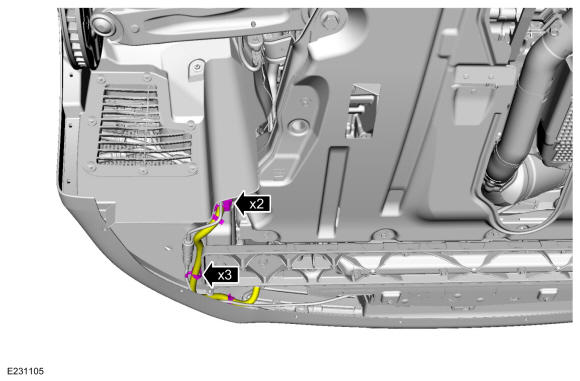

  4. Disconnect the electrical connectors and separate the wiring harness guides.
    GFD199627Courtesy of FORD MOTOR COMPANY

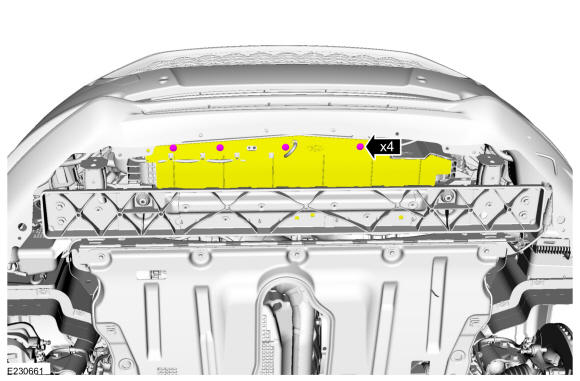

  5. Remove the pin-type retainers and position the air deflector down.
    GFD199628Courtesy of FORD MOTOR COMPANY

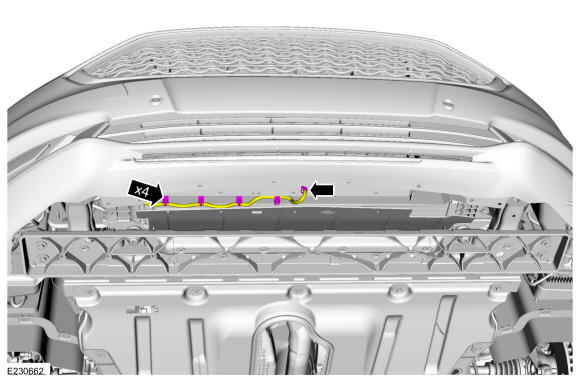

  6. Disconnect the electrical connector and release the wiring harness guides.
    GFD199629Courtesy of FORD MOTOR COMPANY

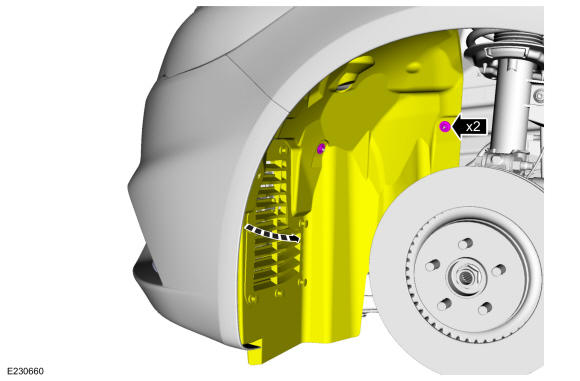

  7. Remove the nuts and position the fender liner aside.
    GFD199630Courtesy of FORD MOTOR COMPANY

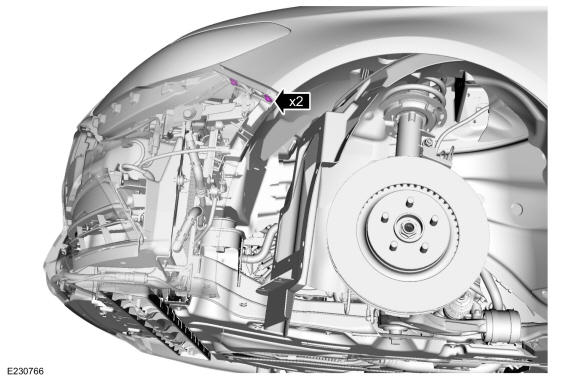

  8. Remove the front bumper cover-to-fender bolts.
    GFD199631Courtesy of FORD MOTOR COMPANY

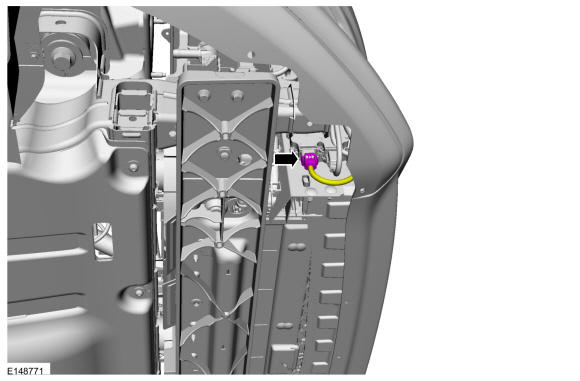

  9. Disconnect the electrical connector.
    GFD199632Courtesy of FORD MOTOR COMPANY

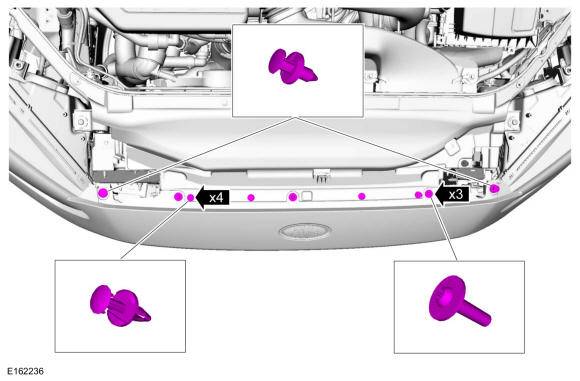

  10. Remove the upper front bumper cover bolts and push pins.
    GFD199633Courtesy of FORD MOTOR COMPANY

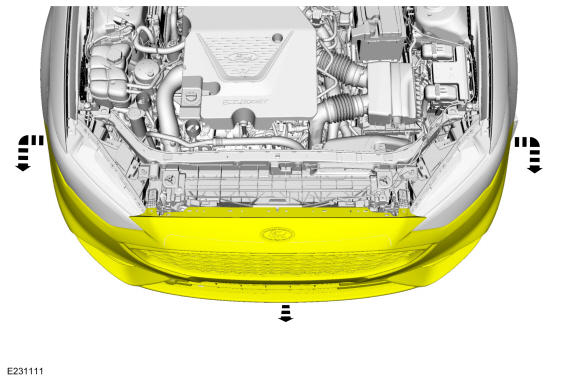

  11. Release the sides of the front bumper cover from the brackets and position forward.
    GFD199634Courtesy of FORD MOTOR COMPANY

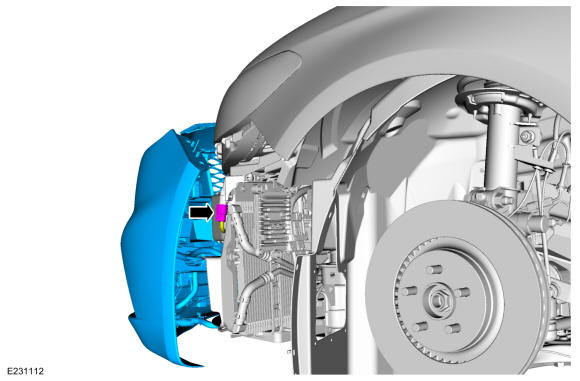

  12. Disconnect the electrical connector and remove the front bumper cover.
    GFD199635Courtesy of FORD MOTOR COMPANY
