Rear Bumper Cover: Disassembly
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- Remove the rear bumper cover. Refer to: Rear Bumper Cover .
- Remove the rear active parking assist sensors. Refer to: Rear Active Park Assist Sensors .
- Remove the rear parking aid sensors. Refer to: Rear Parking Aid Sensor .

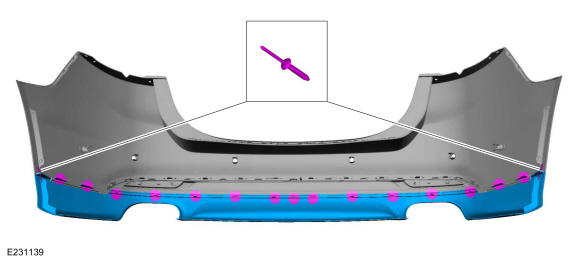

- Remove the rivets, release the tabs and remove the lower rear bumper cover.
- On both sides. Release the tabs and remove the rear bumper cover reflector.

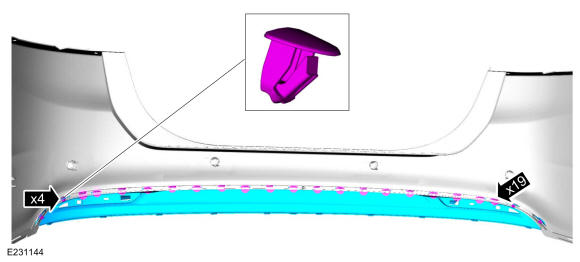

- Remove the locking retainers, release the tabs and remove the center rear bumper cover.
