Ignition Coil-On-Plug: Removal

WARNING: This page is about a different variant/trim than selected.

WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Health and Safety Precautions .
Refer to: Air Cleaner .
NOTE: Use compressed air to remove any foreign material from the ignition coil-on-plugs and surrounding area before removing the ignition coil-on-plugs.

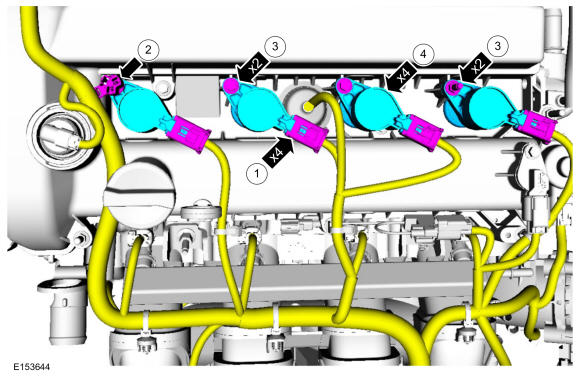

1. NOTE: If equipped with a sliding cover over the locking tab, then slide the cover back to gain access to the tab.

  Depress the locking tab on the ignition coil-on-plug electrical connector, and disconnect the electrical connector from the ignition coil-on-plug.
2. Torque: 89 lb.in (10 Nm)
3. NOTE: When removing the ignition coil-on-plugs, a slight twisting motion will break the seal and ease removal.

  NOTE: When installing the ignition coil-on-plugs, apply a small amount of silicone brake caliper grease and dielectric compound to the inside of the ignition coil-on-plug boots before installation.

  Material: Motorcraft ® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)
Courtesy of FORD MOTOR COMPANY
Inspect the ignition coil-on-plug rubber boot for cracks, rips, or tears. Replace any damaged coil-on-plug rubber boots.
