Section 92 (ENGINE IGNITION SYSTEM - 2.0L DURATEC - HYBRID/ENERGI (103kW/140PS) (UA))
>>
Description And Operation
>>

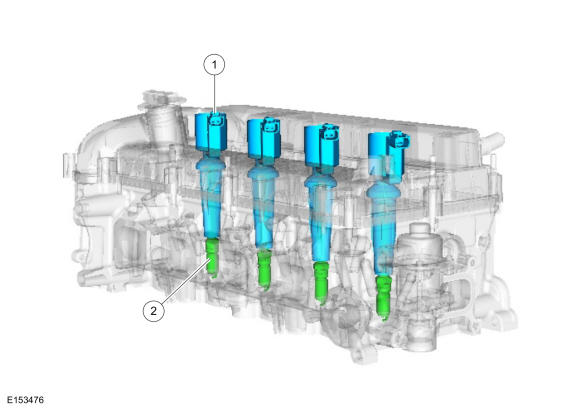

Engine Ignition - Component Location
>>
2.0L Hybrid
2.0L Hybrid
WARNING:
This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Ignition coil-on-plug(s)
2
Spark plug(s)
Courtesy of FORD MOTOR COMPANY
