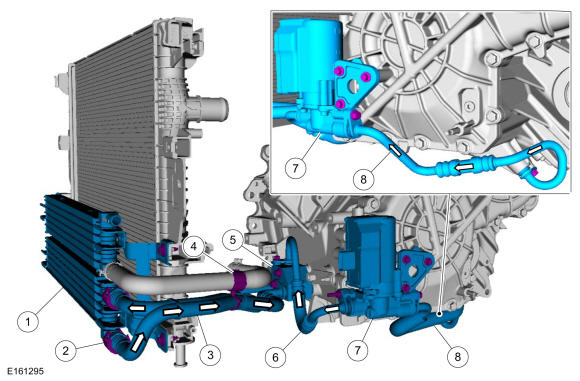

Component Location
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | 7A095 | Transmission fluid cooler |
| 2 | 7Z465 | Secondary latches |
| 3 | 7R081 | Transmission fluid cooler tubes |
| 4 | - | Transmission fluid cooler tube clip (part of 7R081) |
| 5 | 7H322 | Transmission fluid cooler tube manifold |
| 6 | 7A030 | Transmission fluid auxiliary pump outlet tube |
| 7 | 7A103 | Transmission fluid auxiliary pump |
| 8 | 7A031 | Transmission fluid auxiliary pump inlet tube |
