Section 112 (OEM Component Harness Location Charts - Fusion (Hybrid/ENERGI))
>>
Component Location Charts
>>
Passenger seat horizontal motor
Passenger seat horizontal motor
WARNING:
This page is about a different variant/trim than selected.

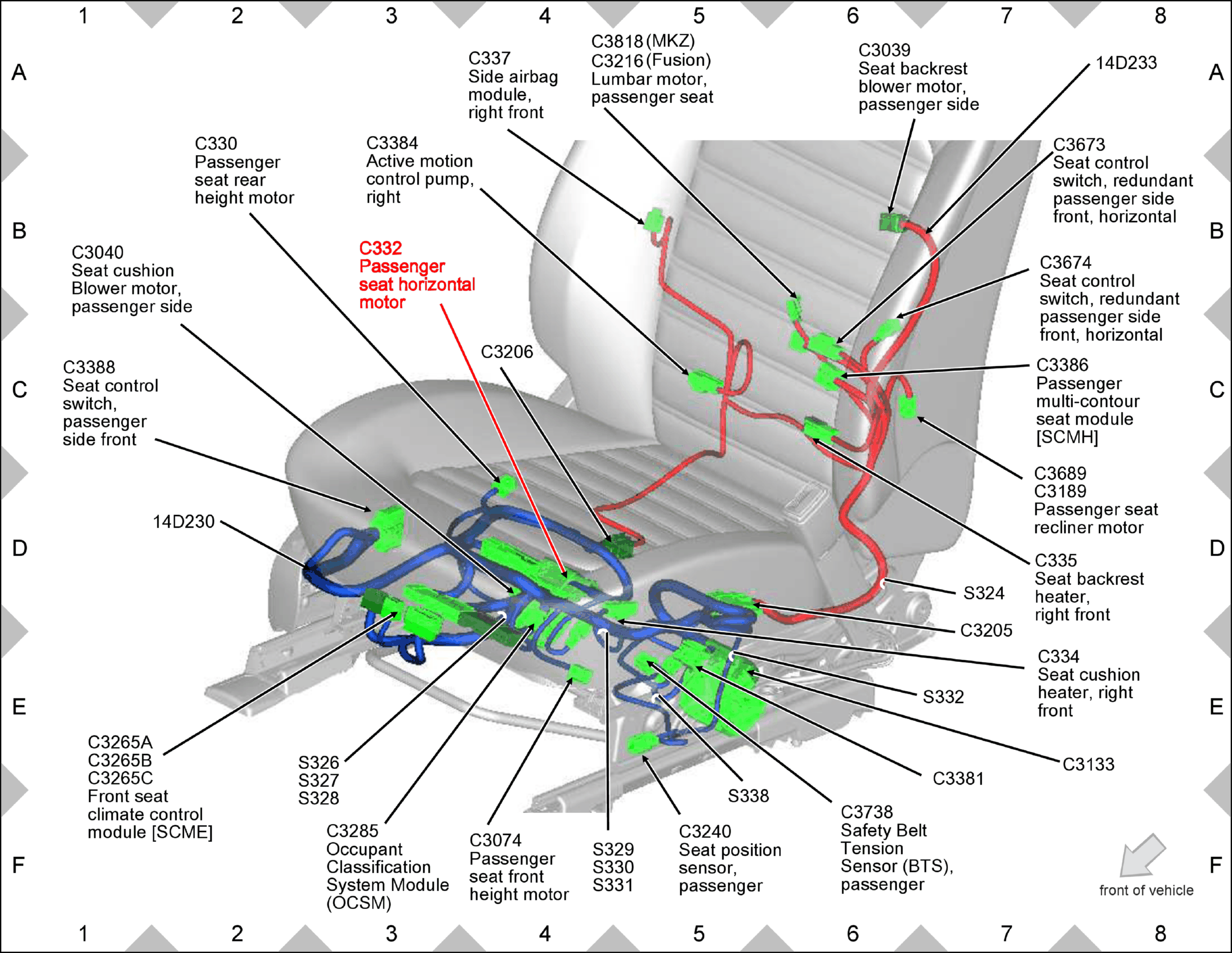

Fig 1: Passenger seat horizontal motor Components Location
Courtesy of FORD MOTOR COMPANY
