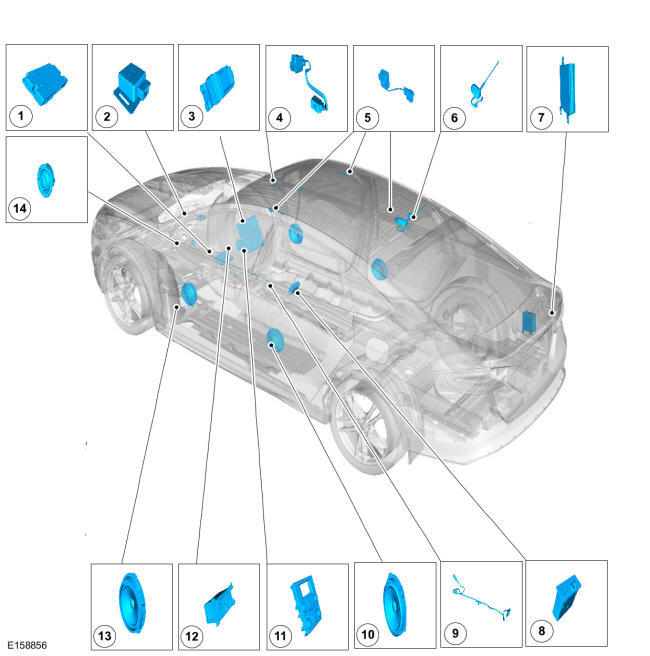

Information and Entertainment System - Component Location
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
APIM |
| 2 |
GPSM |
| 3 |
FCDIM |
| 4 |
SYNC ® microphone |
| 5 |
Active noise control microphones - HEV |
| 6 |
AM/ FM Antenna |
| 7 |
DACMC - HEV |
| 8 |
USB port |
| 9 |
USB cable |
| 10 |
Speaker - rear door |
| 11 |
FCIM |
| 12 |
ACM |
| 13 |
Speaker - front door |
| 14 |
Speaker - front door tweeter |
