Turbocharger RH: Removal

All Vehicles

NOTE: Whenever the turbocharger air intake system components are removed, always cover the open ports to protect them from debris. It is important that no foreign material enter the system. The turbocharger compressor vanes are susceptible to damage from even small particles. All of the components should be inspected and cleaned, if needed, prior to installation or reassembly.
NOTE: Special attention needs to be given to the sealing ports for the oil feed, the oil drain, and the coolant lines, on turbocharged engines. The sealing ports must be totally clean and free from O-ring residue, have no damage to the sealing surface and the lines to ensure that there are no leaks or repeat repairs.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
  3. Remove the front Wheels and Tires. Refer to: Wheel and Tire .
  4. Remove the underbody shield retainers and then remove the underbody shield.
    GFD192693Courtesy of FORD MOTOR COMPANY
  5. Remove the Engine Oil Pressure (EOP) Sensor. Refer to: Engine Oil Pressure (EOP) Sensor .
  6. Remove the turbocharger heat shield retainers and then remove the heat shield.
    GFD193548Courtesy of FORD MOTOR COMPANY
  7. Remove the turbocharger oil supply tube bolts and then remove the turbocharger oil supply tube.
    GFD193572Courtesy of FORD MOTOR COMPANY
  8. NOTE: Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a NYLON brush to clean. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

    Remove and discard the turbocharger oil supply tube O-ring seals and the turbocharger oil supply tube oil filter.

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    GFD193573Courtesy of FORD MOTOR COMPANY
  9. Remove the right catalytic converter to transmission bracket bolts.
    GFD193575Courtesy of FORD MOTOR COMPANY
  10. Remove and discard the right catalytic converter nuts, then position the right catalytic converter out of the way.
    GFD193576Courtesy of FORD MOTOR COMPANY
  11. Remove and discard the catalytic converter gasket.
    GFD193577Courtesy of FORD MOTOR COMPANY
  12. Remove the turbocharger coolant return tube bolt, then disconnect the turbocharger coolant return tube and position out of the way.
    GFD193549Courtesy of FORD MOTOR COMPANY
  13. NOTE: Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a NYLON brush to clean. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

    Remove and discard the turbocharger coolant return tube O-ring seal.

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    GFD193551Courtesy of FORD MOTOR COMPANY
  14. Release the clamp and then disconnect the turbocharger wastegate control hose.

    Use the General Equipment: Hose Clamp Remover/Installer

    GFD193578Courtesy of FORD MOTOR COMPANY

    15. AWD (All Wheel Drive) Vehicles

  15. Remove the right front halfshaft. Refer to: Front Halfshaft RH .
  16. Remove the PTU support bracket bolts, then remove the bracket.
    G00578788Courtesy of FORD MOTOR COMPANY

    17. All Vehicles

    NOTE: AWD (all-wheel drive) is displayed, FWD (front wheel drive) is similar.
  17. Remove the turbocharger oil return tube retainers and then remove the turbocharger oil return tube.
    GFD192901Courtesy of FORD MOTOR COMPANY
  18. NOTE: Inspect for blockage in the turbocharger tube. Check the tube, the sealing surfaces and the flange for flatness and damage. Use brake cleaner and a NYLON brush to clean. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.
    NOTE: Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a NYLON brush to clean. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

    Remove and discard the turbocharger oil return tube O-ring seal.

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    GFD193560Courtesy of FORD MOTOR COMPANY
  19. Remove and discard the turbocharger oil return tube tube-to-engine block gasket.
    GFD192900Courtesy of FORD MOTOR COMPANY
  20. Remove the turbocharger coolant supply tube bolt.
    GFD192946Courtesy of FORD MOTOR COMPANY

    21. AWD (All Wheel Drive) Vehicles

  21. NOTE: Left side displayed, right side is similar.

    Remove the left side and the right side upper stabilizer bar nuts, then position the stabilizer bar up all of the way.

    GFD193579Courtesy of FORD MOTOR COMPANY
  22. Remove the steering heat shield retainers and then remove the heat shield.
    GFD193580Courtesy of FORD MOTOR COMPANY
  23. Remove the turbocharger mounting nuts.
    GFD193581Courtesy of FORD MOTOR COMPANY
  24. NOTE: Remove the turbocharger coolant supply tube from the engine block while removing the turbocharger.

    • Remove the turbocharger mounting studs.
    • Remove the turbocharger mounting bolt, then remove the turbocharger and gasket.

    GFD193582Courtesy of FORD MOTOR COMPANY

    25. FWD (Front Wheel Drive) Vehicles

    NOTE: Remove the turbocharger coolant supply tube from the engine block while removing the turbocharger.

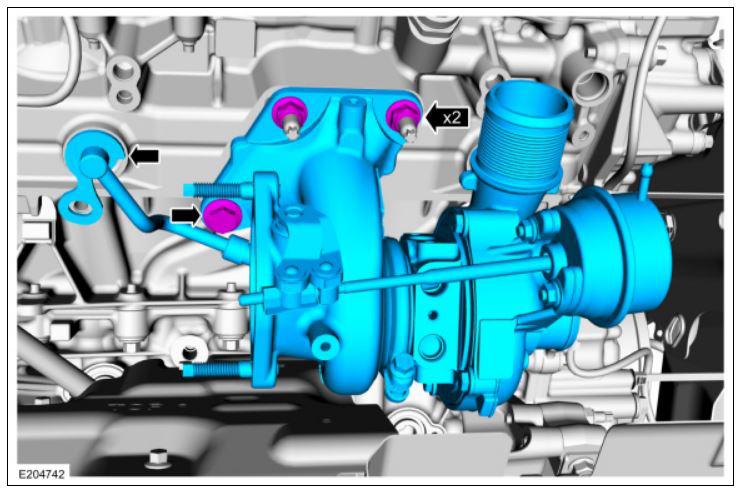

  25. Remove the turbocharger mounting retainers and then remove the turbocharger.
    G00578789Courtesy of FORD MOTOR COMPANY
  26. Remove and discard the turbocharger gasket.
    GFD193564Courtesy of FORD MOTOR COMPANY
  27. Remove the turbocharger mounting studs if they need to be removed.
    GFD192949Courtesy of FORD MOTOR COMPANY

    28. All Vehicles

  28. NOTE: Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a NYLON brush to clean. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

    Remove and discard the turbocharger coolant return tube O-ring seal.

    Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    GFD193563Courtesy of FORD MOTOR COMPANY
  29. Remove the turbocharger exhaust flange studs if they need to be removed.
    GFD193583Courtesy of FORD MOTOR COMPANY
