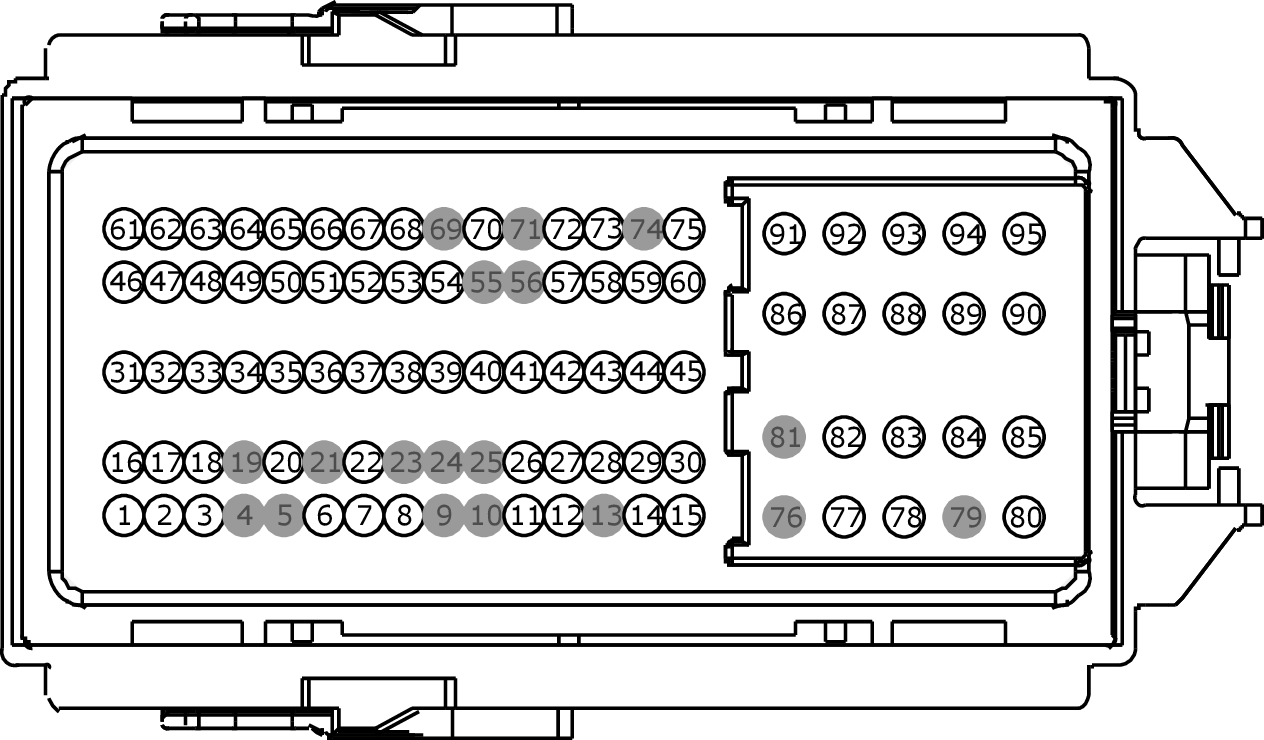

Connector End View (C1231E) - POWERTRAIN CONTROL MODULE (PCM)
Connector: C1231E
Description
POWERTRAIN CONTROL MODULE (PCM)
Color
Harness
12C508
Base Part #
#N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CE421 (VT) | 18 | CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 1 (VCT1) | |
| 2 | CET19 (VT-GY) | 20 | CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL LOW-SIDE 2 (SS2) | |
| 3 | VE175 (BN-WH) | 18 | CTRL MOD. - POWERTRAIN # ELECTRONIC COMPRESSOR BYPASS VALVE (ECBV PWM) | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | LE459 (GY) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 3 (VREF3) | |
| 7 | LE134 (YE) | 20 | CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) | |
| 8 | LE423 (GN-VT) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1) | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | VE711 (YE-VT) | 18 | SENSOR - CRANKSHAFT POSITION (CKPP) + | |
| 12 | RET04 (YE-OG) | 20 | CTRL MOD. - POWERTRAIN # SENSOR OUTPUT SHAFT SPEED (OSS) | |
| 13 | * | * | Not Used | |
| 14 | CE236 (GY-VT) | 18 | CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 2ND (HTR21) | |
| 15 | CE235 (GN-BN) | 18 | CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (HTR11) | |
| 16 | VE824 (YE-GN) | 20 | SENSOR - BOOST PRESSURE | |
| 17 | CE443 (BN-VT) | 20 | CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 4 | |
| 18 | CE442 (YE-GY) | 20 | CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 3 | |
| 19 | * | * | Not Used | |
| 20 | RE454 (YE-GN) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 | |
| 21 | * | * | Not Used | |
| 22 | LE111 (VT-GN) | 18 | CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR) | |
| 23 | * | * | Not Used | |
| 24 | * | * | Not Used | |
| 25 | * | * | Not Used | |
| 26 | VE707 (GN-VT) | 18 | SENSOR - CAMSHAFT POSITION BANK 2 IN+EX / IN (CMP2) [CID-H] (CID2) + | |
| 27 | RET33 (WH-VT) | 20 | SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) - | |
| 28 | VE706 (BN-BU) | 18 | SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP1) [CID-H] (CID1) + | |
| 29 | CE422 (WH-OG) | 18 | CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 2 (VCT2) | |
| 30 | CET08 (BN-WH) | 20 | CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 4 (PC4) [EPC] [VFS] | |
| 31 | RE134 (BU-OG) | 20 | CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) | |
| 32 | RET24 (BN-BU) | 20 | CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND) | |
| 33 | VE740 (VT-GY) | 18 | SENSOR - INTAKE AIR TEMPERATURE (IAT) | |
| 34 | VE804 (GN-BN) | 18 | SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP) + | |
| 35 | VE727 (BU-BN) | 18 | SENSOR - FUEL RAIL PRESSURE/INJECTION PRESSURE (FRP) (IPS) | |
| 36 | VE712 (BU-GY) | 20 | SENSOR - CYLINDER HEAD TEMPERATURE (CHT) | |
| 37 | VE716 (YE) | 18 | SENSOR - ENGINE COOLANT TEMPERATURE (ECT) | |
| 38 | VET32 (VT) | 20 | SENSOR - TRANSMISSION RANGE # PWM OUTPUT (TR -P) | |
| 39 | VET30 (YE) | 20 | SENSOR - TRANSMISSION RANGE # 2 (TR2) [DTRS] | |
| 40 | VET31 (BU-OG) | 20 | SENSOR - TRANSMISSION RANGE # 4 (TR4) [DTRS] | |
| 41 | VET29 (VT-WH) | 20 | SENSOR - TRANSMISSION RANGE # 1 (TR1) [DTRS] | |
| 42 | CE303 (WH-VT) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP-A) | |
| 43 | CE306 (GN-VT) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP-D) | |
| 44 | CET10 (BU-GY) | 20 | CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 6 (PC6) [EPC] [VFS] | |
| 45 | CET06 (GN-BN) | 20 | CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 2 (PC2) [EPC] [VFS] | |
| 46 | LE452 (GN) | 18 | CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED PUMPING CURRENT 1ST (UO2SIA-11) | |
| 47 | LE448 (GY-BU) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UREF-11) | |
| 48 | LE453 (BN-BU) | 18 | CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED 2ND (UO2SIA-21) | |
| 49 | LE449 (VT-GN) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 2ND (UREF-21) | |
| 50 | VE802 (BN-BU) | 18 | SENSOR - KNOCK 2ND BANK 1ST (KS2P) [KSL2+] | |
| 51 | RE324 (BN-GN) | 18 | CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 1ST (KS2N) [KSL2-] | |
| 52 | VE819 (GN-VT) | 20 | SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2-PS) | |
| 53 | RE405 (GN-WH) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A) | |
| 54 | LE143 (GN-BN) | 18 | CTRL MOD. - POWERTRAIN # CAMSHAFT SENSOR 1 + | |
| 55 | * | * | Not Used | |
| 56 | * | * | Not Used | |
| 57 | CE304 (YE-BU) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP-B) | |
| 58 | CE307 (WH-BN) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 5 (COP-E) | |
| 59 | CET09 (YE-VT) | 20 | CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 5 (PC5) [EPC] [VFS] | |
| 60 | CET05 (BU-GN) | 20 | CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 1 (PC1) [EPC] [VFS] | |
| 61 | LE451 (BN-YE) | 18 | CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SIP-11) | |
| 62 | VE826 (BN-VT) | 18 | SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2SN-11) | |
| 63 | LE450 (WH) | 18 | CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 2ND (UO2SIP-21) | |
| 64 | VE827 (WH-GN) | 18 | SENSOR - UNIVERSAL HEATED OXYGEN 2ND (UO2SN-21) | |
| 65 | VE801 (VT-OG) | 18 | SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1P) [KSL1+] | |
| 66 | RE323 (WH-BN) | 18 | CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1N) [KSL1-] - | |
| 67 | VET27 (BN-YE) | 20 | SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) | |
| 68 | VE818 (BN) | 20 | SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1-NS) | |
| 69 | * | * | Not Used | |
| 70 | LE144 (YE-VT) | 18 | CTRL MOD. - POWERTRAIN # CAMSHAFT SENSOR 2 + | |
| 71 | * | * | Not Used | |
| 72 | CE305 (BU-OG) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP-C) | |
| 73 | CE308 (VT-BN) | 18 | CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 6 (COP-F) | |
| 74 | * | * | Not Used | |
| 75 | CET07 (GY-OG) | 20 | CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 3 (PC3) [EPC] [VFS] | |
| 76 | * | * | Not Used | |
| 77 | RE226 (GN-VT) | 16 | CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) - | |
| 78 | CE226 (YE-VT) | 16 | CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + | |
| 79 | * | * | Not Used | |
| 80 | CET25 (BU-GN) | 18 | CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC) | |
| 81 | * | * | Not Used | |
| 82 | CE207 (VT-GY) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) + | |
| 83 | CE208 (YE-OG) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) + | |
| 84 | CE205 (GN-BU) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) + | |
| 85 | CE209 (BN) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ) + | |
| 86 | CE412 (YE-VT) | 18 | CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) | |
| 87 | RE205 (YE-BU) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) - | |
| 88 | RE208 (BU) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) - | |
| 89 | RE206 (BU-OG) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) - | |
| 90 | CE206 (GY-YE) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) + | |
| 91 | CE426 (BU-GN) | 18 | CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-) | |
| 92 | RE209 (WH-GN) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ) - | |
| 93 | RE207 (GN-VT) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) - | |
| 94 | RE210 (BN-VT) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 6 (INJ) - | |
| 95 | CE210 (GN-WH) | 16 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 6 (INJ) + |
