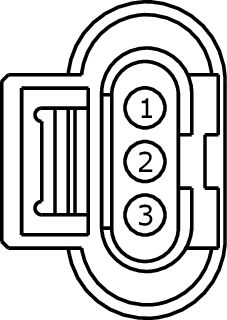

Connector End View (C1217) - CHARGE AIR COOLER (CAC) PUMP

Connector: C1217

Description

CHARGE AIR COOLER (CAC) PUMP

Color

Harness

12C508

Base Part #

#N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD108 (BK-VT)	16	GROUND - CHASSIS / BATTERY
2	CBK03 (GY)	20	FUSE - 3 OR CIRCUIT BREAKER (VPWR 3)
3	CE258 (YE-GN)	20	CTRL MOD. - POWERTRAIN # FUEL COOLANT PUMP RELAY

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1301

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-ANA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Sensor - Front Park Aid (FPA)
