Window Control Switch - Passenger Door, Rear Door LH And Rear Door RH

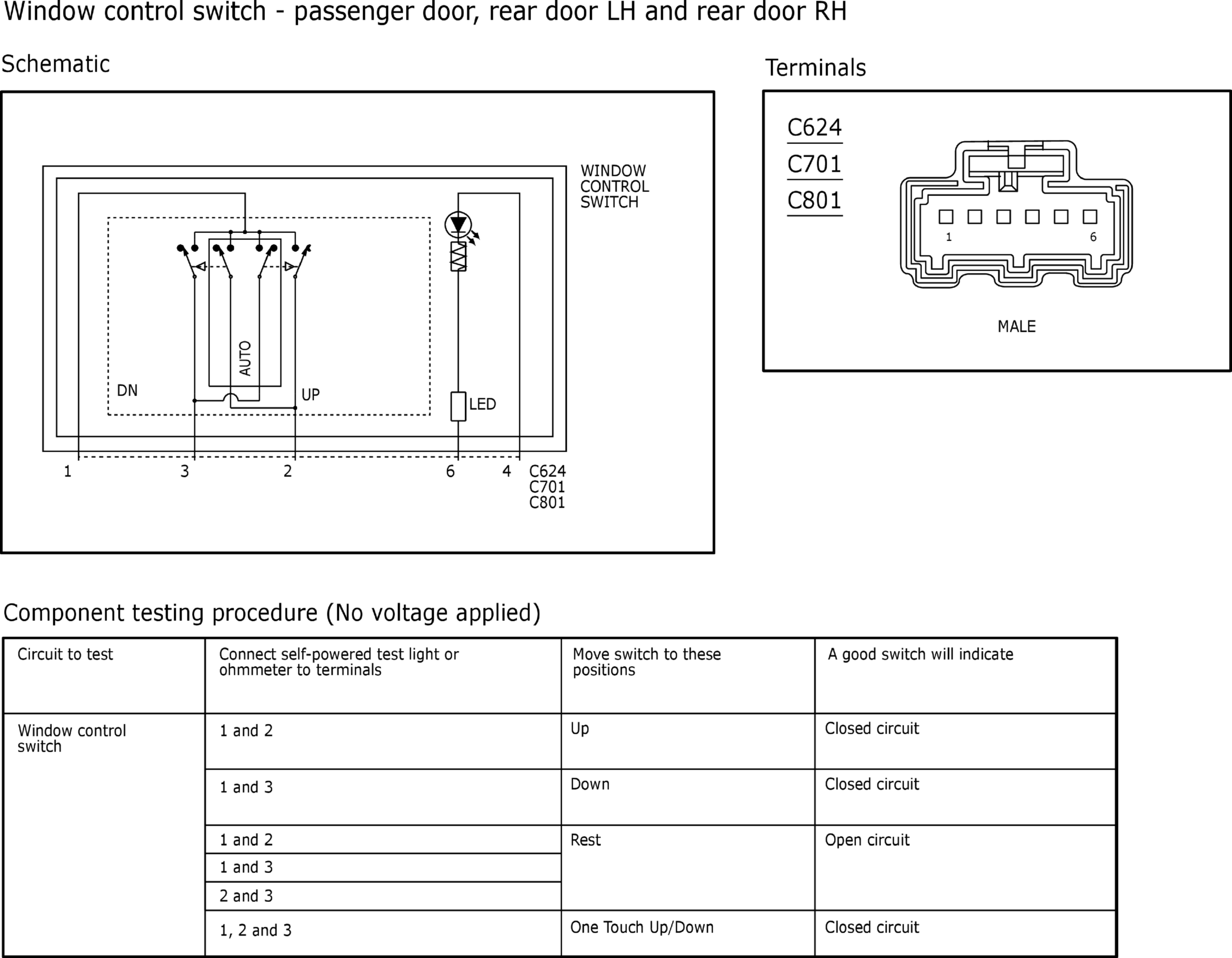

Fig 1: Window Control Switch - Passenger Door, Rear Door LH And Rear Door RH

GFDW80101

Courtesy of FORD MOTOR COMPANY
