Wipers And Washers

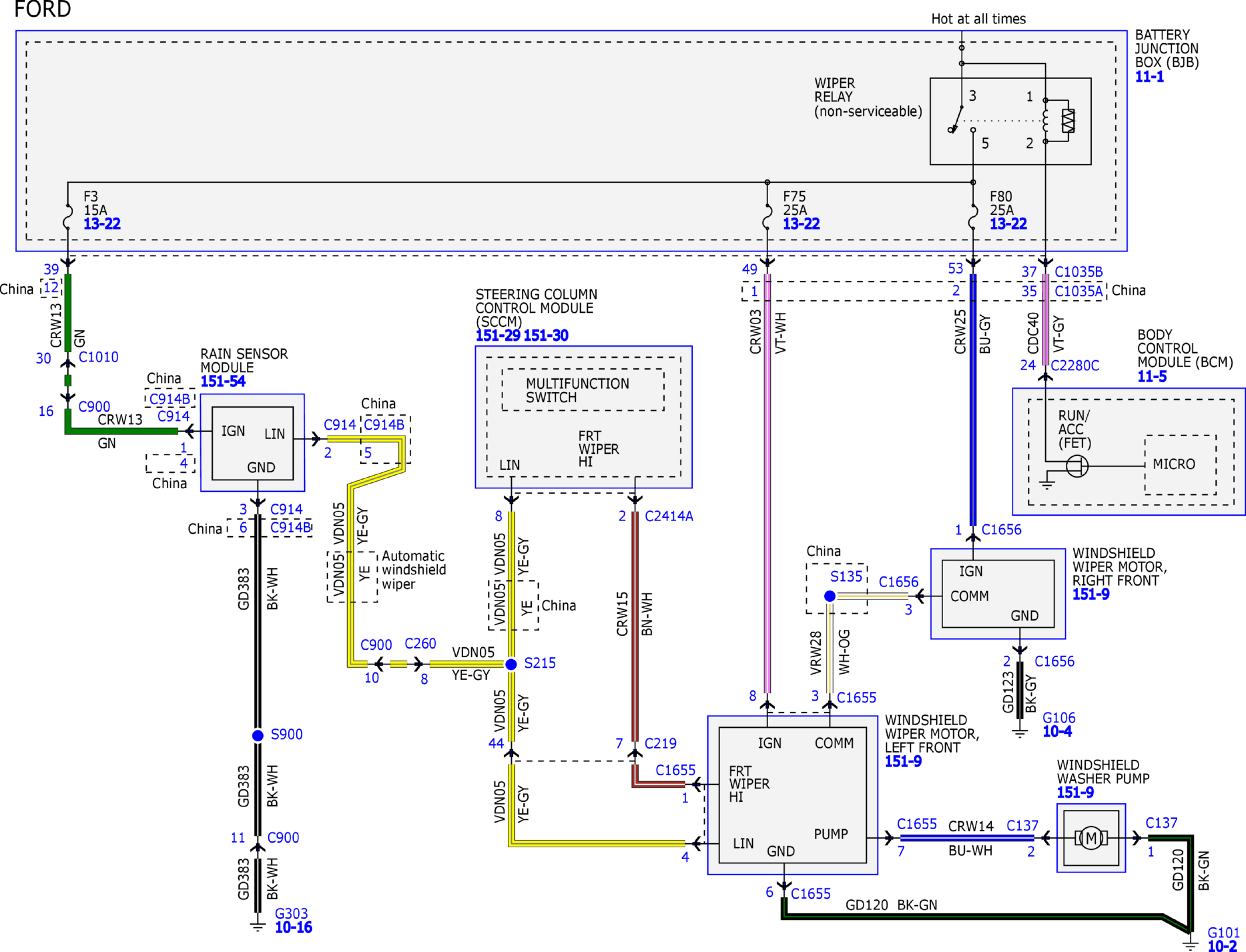

Fig 1: Wipers and Washers Wiring Diagram

GFDW80090

Courtesy of FORD MOTOR COMPANY
