OEM Wiring Diagrams - Fusion (Except Hybrid)
>>
Vehicle Emergency Messaging System
Vehicle Emergency Messaging System
Fig 1: Vehicle Emergency Messaging System Wiring Diagram (1 Of 6)
Courtesy of FORD MOTOR COMPANY
Fig 2: Vehicle Emergency Messaging System Wiring Diagram (2 Of 6)
Courtesy of FORD MOTOR COMPANY
Fig 3: Vehicle Emergency Messaging System Wiring Diagram (3 Of 6)
Courtesy of FORD MOTOR COMPANY

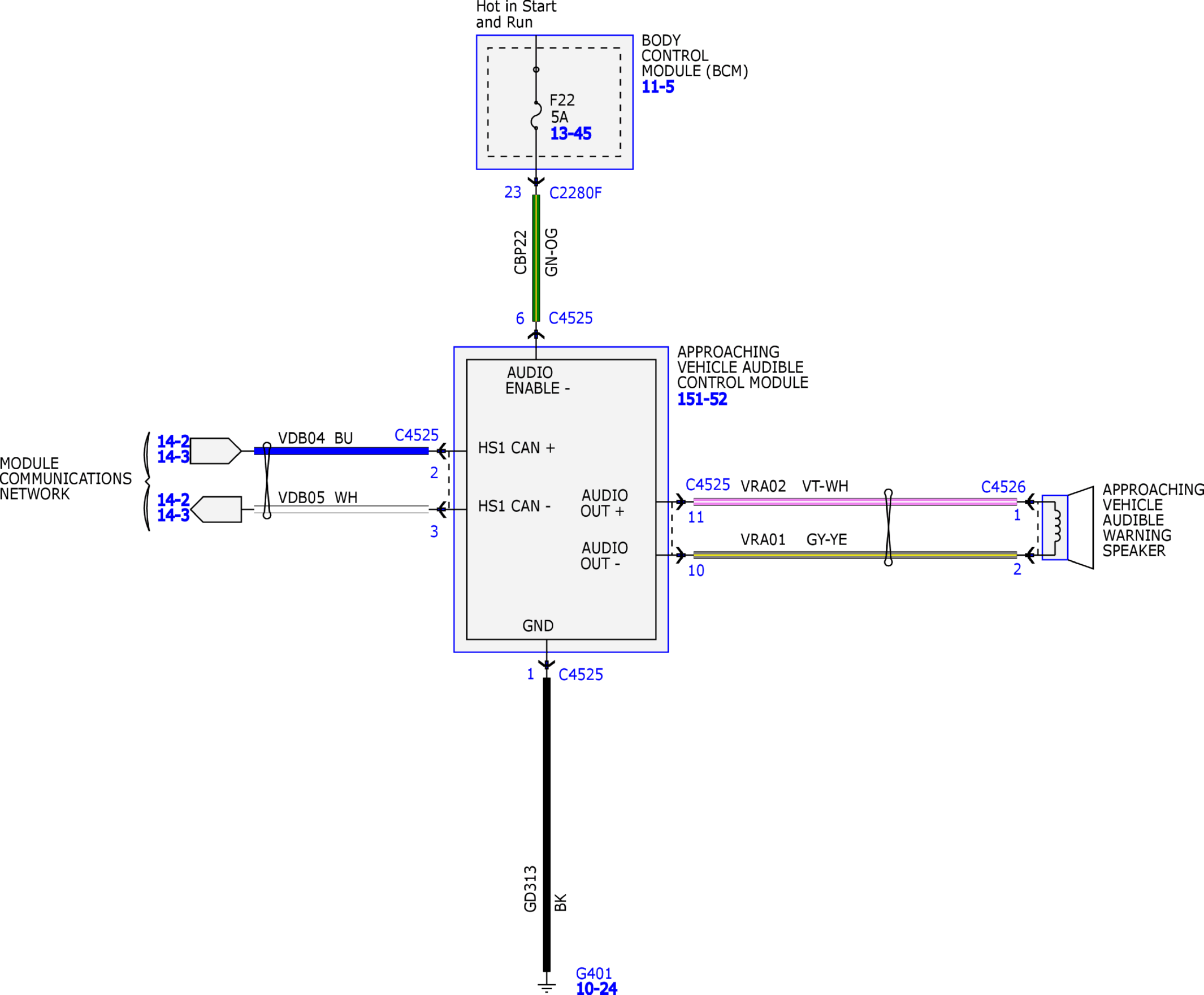

Fig 4: Vehicle Emergency Messaging System Wiring Diagram (4 Of 6)
Courtesy of FORD MOTOR COMPANY
Fig 5: Vehicle Emergency Messaging System Wiring Diagram (5 Of 6)
Courtesy of FORD MOTOR COMPANY
Fig 6: Vehicle Emergency Messaging System Wiring Diagram (6 Of 6)
Courtesy of FORD MOTOR COMPANY
