Turn Signal/Stop/Hazard Lamps

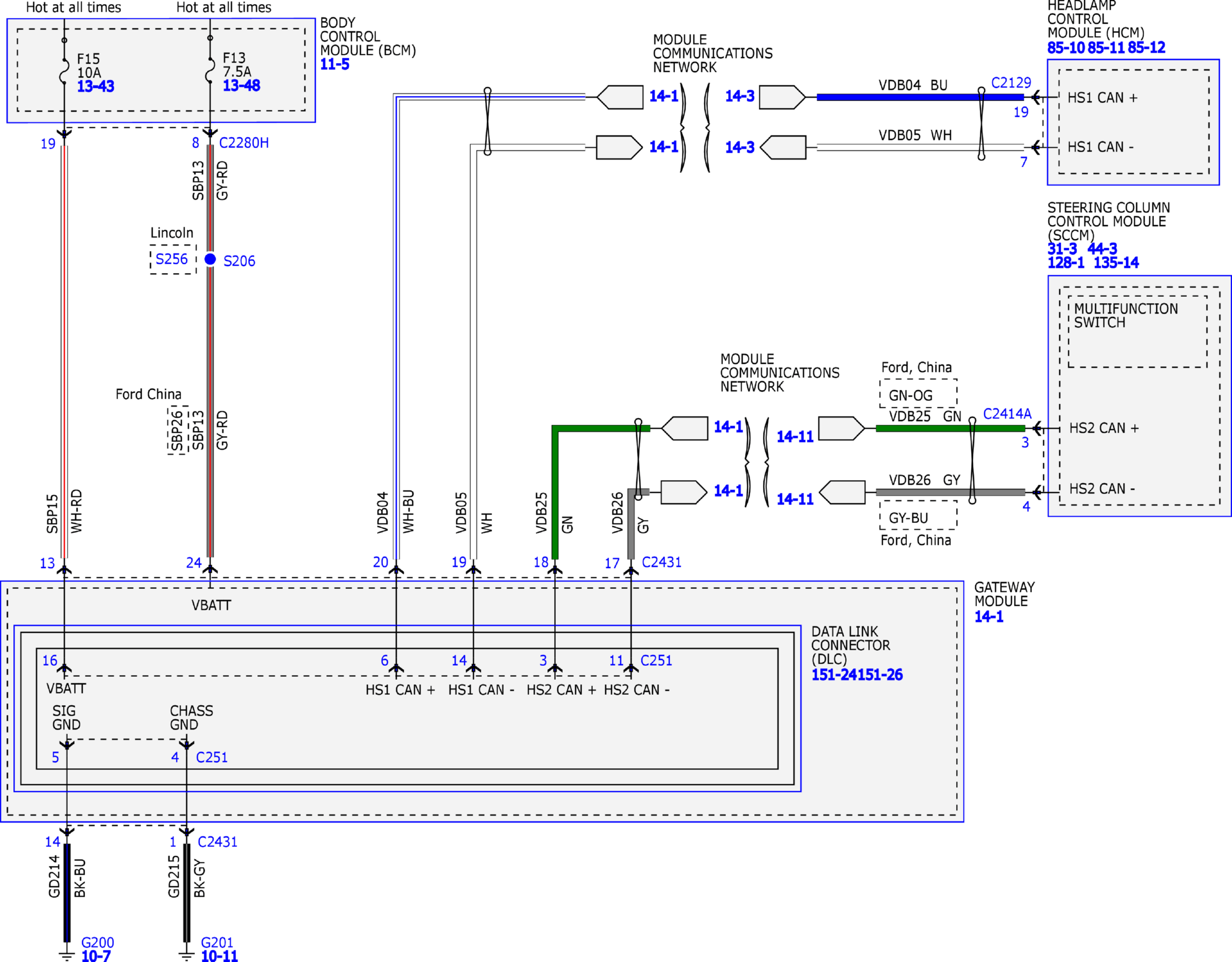

Fig 1: Turn Signal/Stop/Hazard Lamps Wiring Diagram (1 Of 6)
GFDW80072Courtesy of FORD MOTOR COMPANY

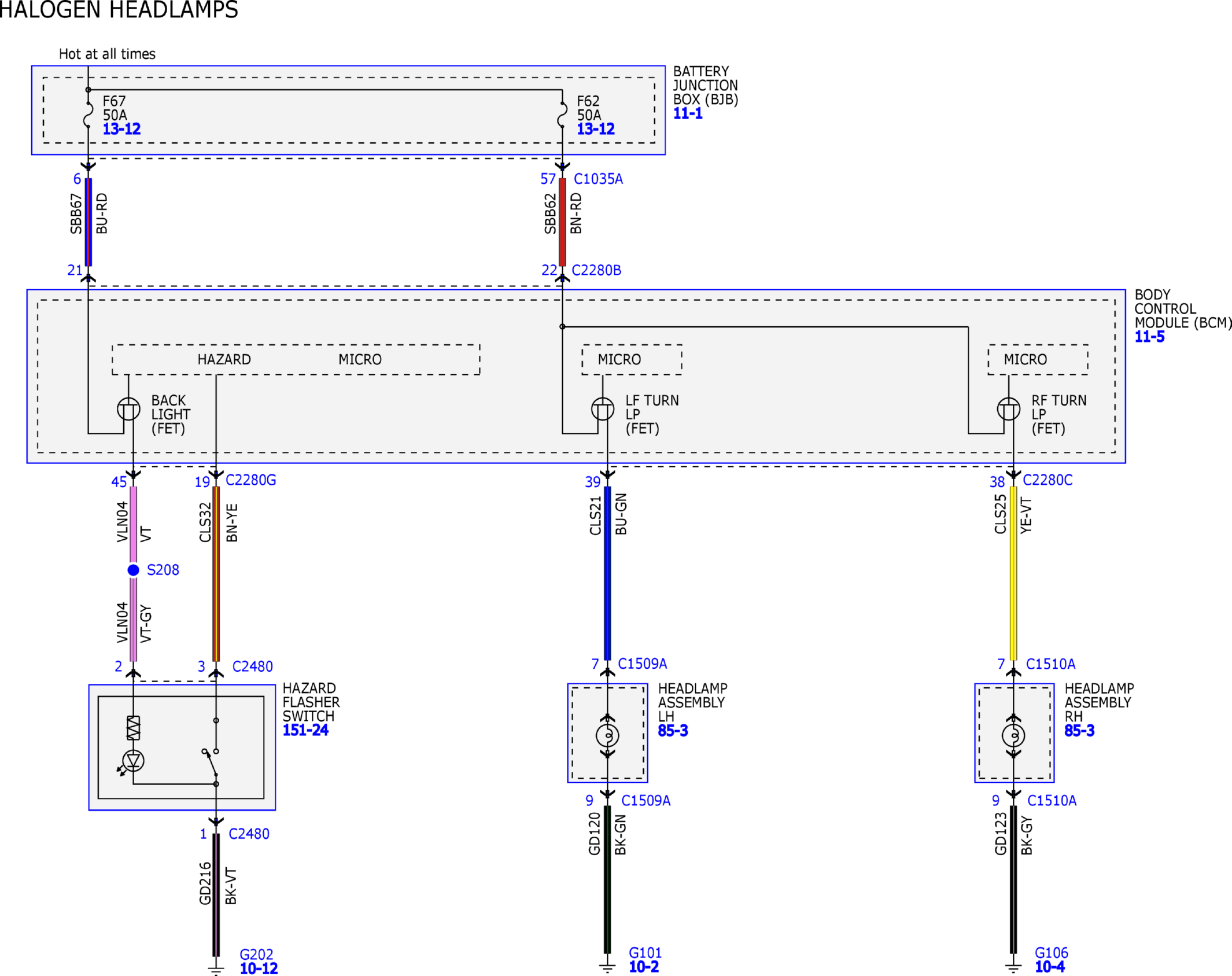

Fig 2: Turn Signal/Stop/Hazard Lamps Wiring Diagram (2 Of 6)
GFDW80073Courtesy of FORD MOTOR COMPANY

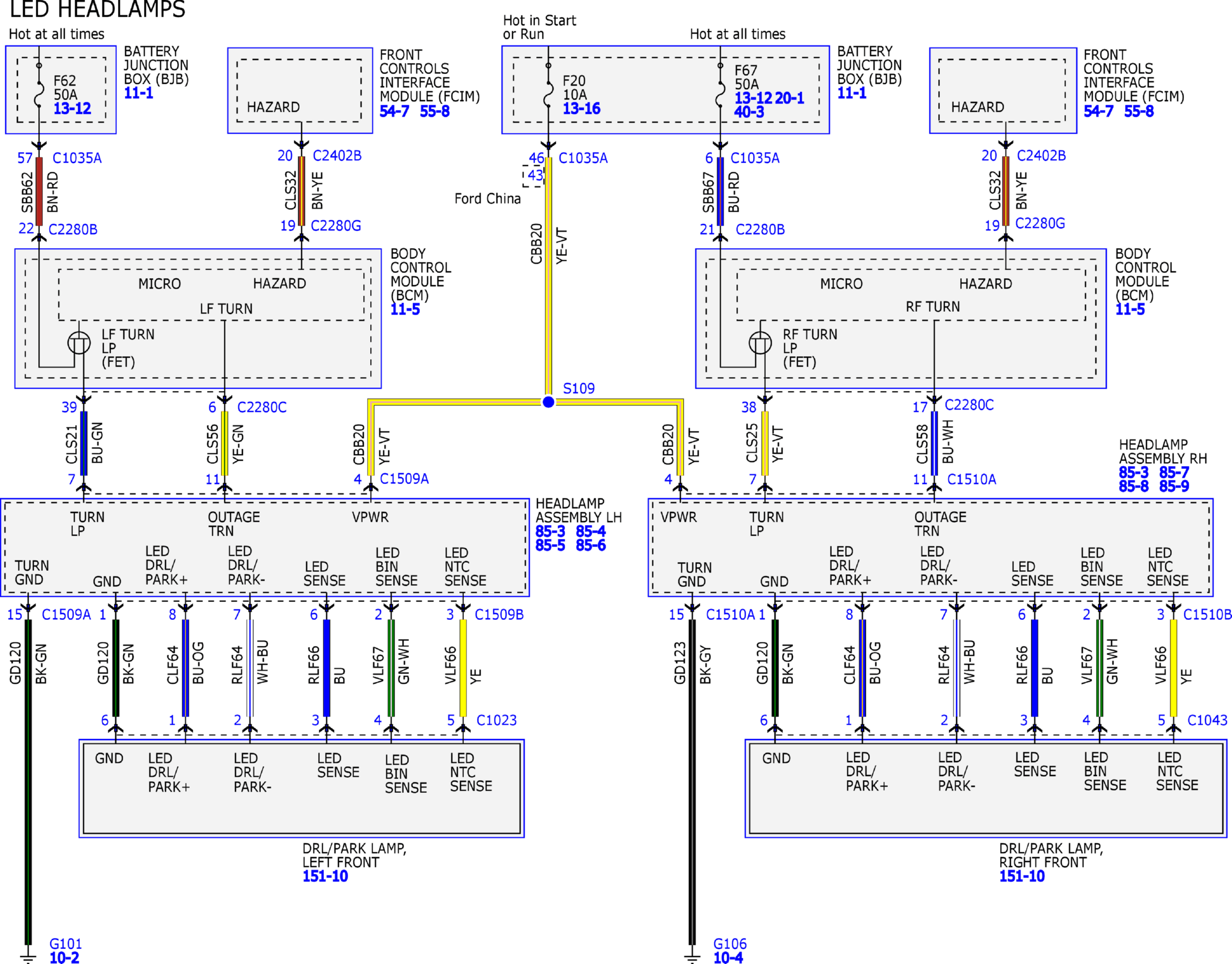

Fig 3: Turn Signal/Stop/Hazard Lamps Wiring Diagram (3 Of 6)
GFDW80074Courtesy of FORD MOTOR COMPANY

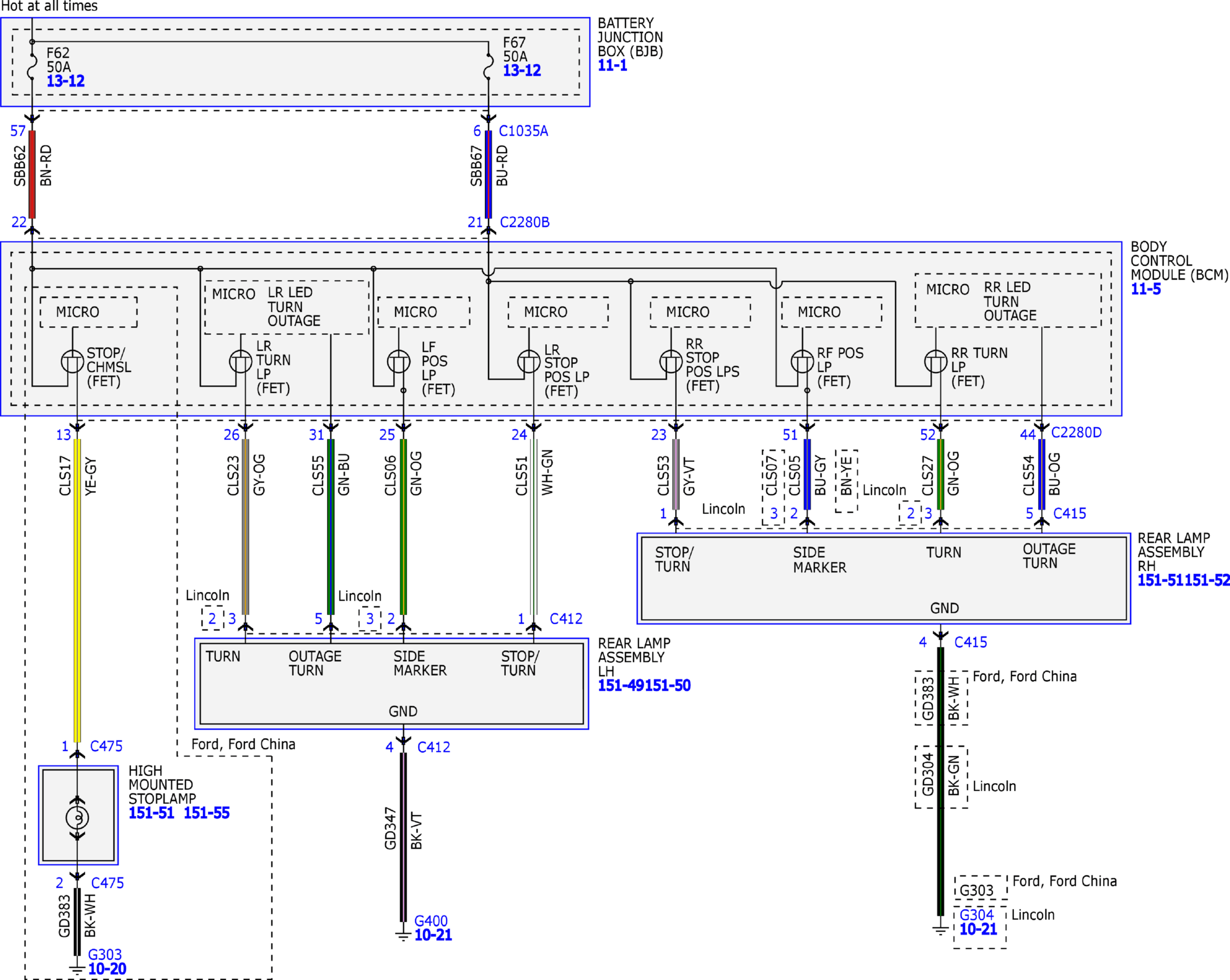

Fig 4: Turn Signal/Stop/Hazard Lamps Wiring Diagram (4 Of 6)
GFDW80075Courtesy of FORD MOTOR COMPANY

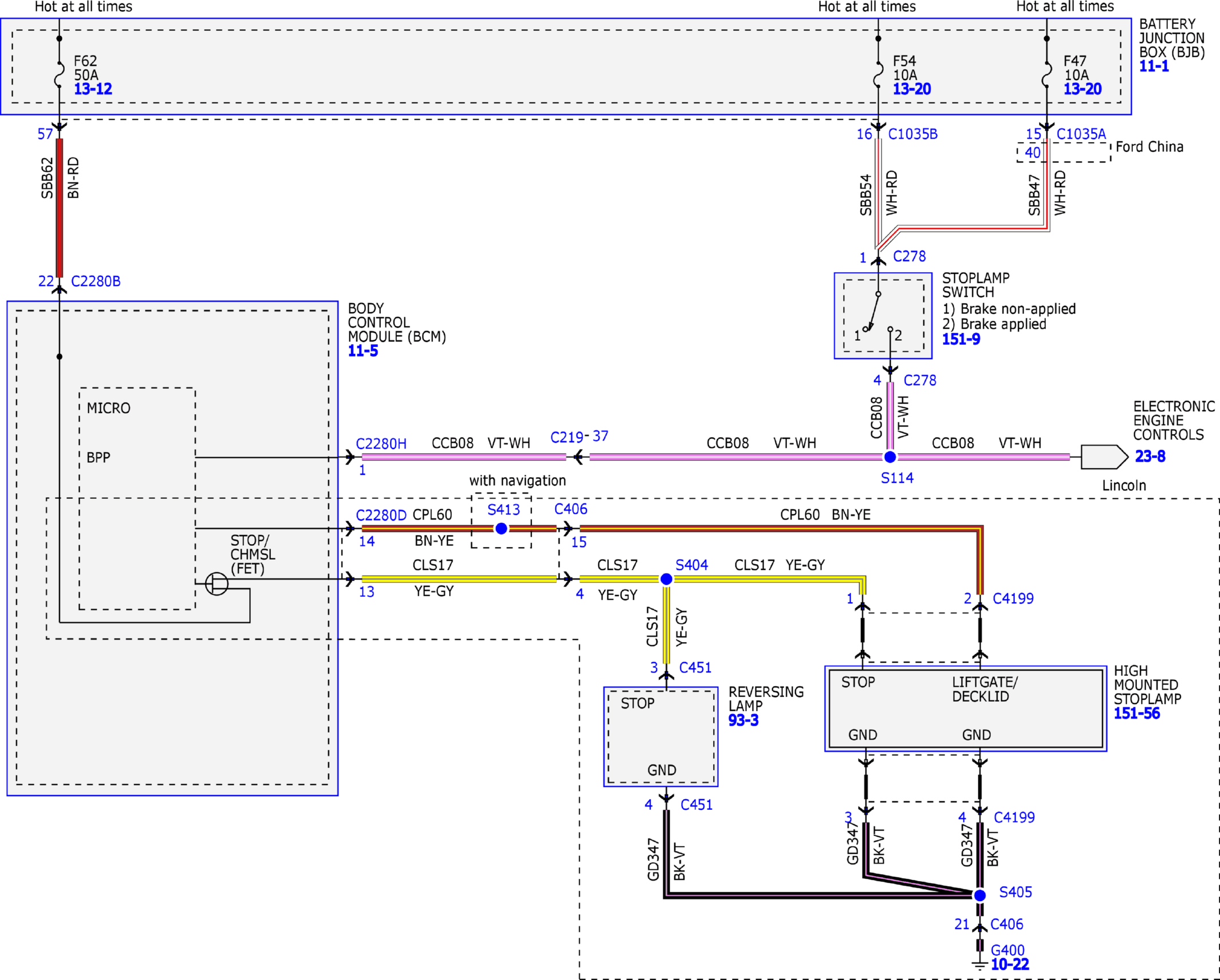

Fig 5: Turn Signal/Stop/Hazard Lamps Wiring Diagram (5 Of 6)
GFDW80076Courtesy of FORD MOTOR COMPANY

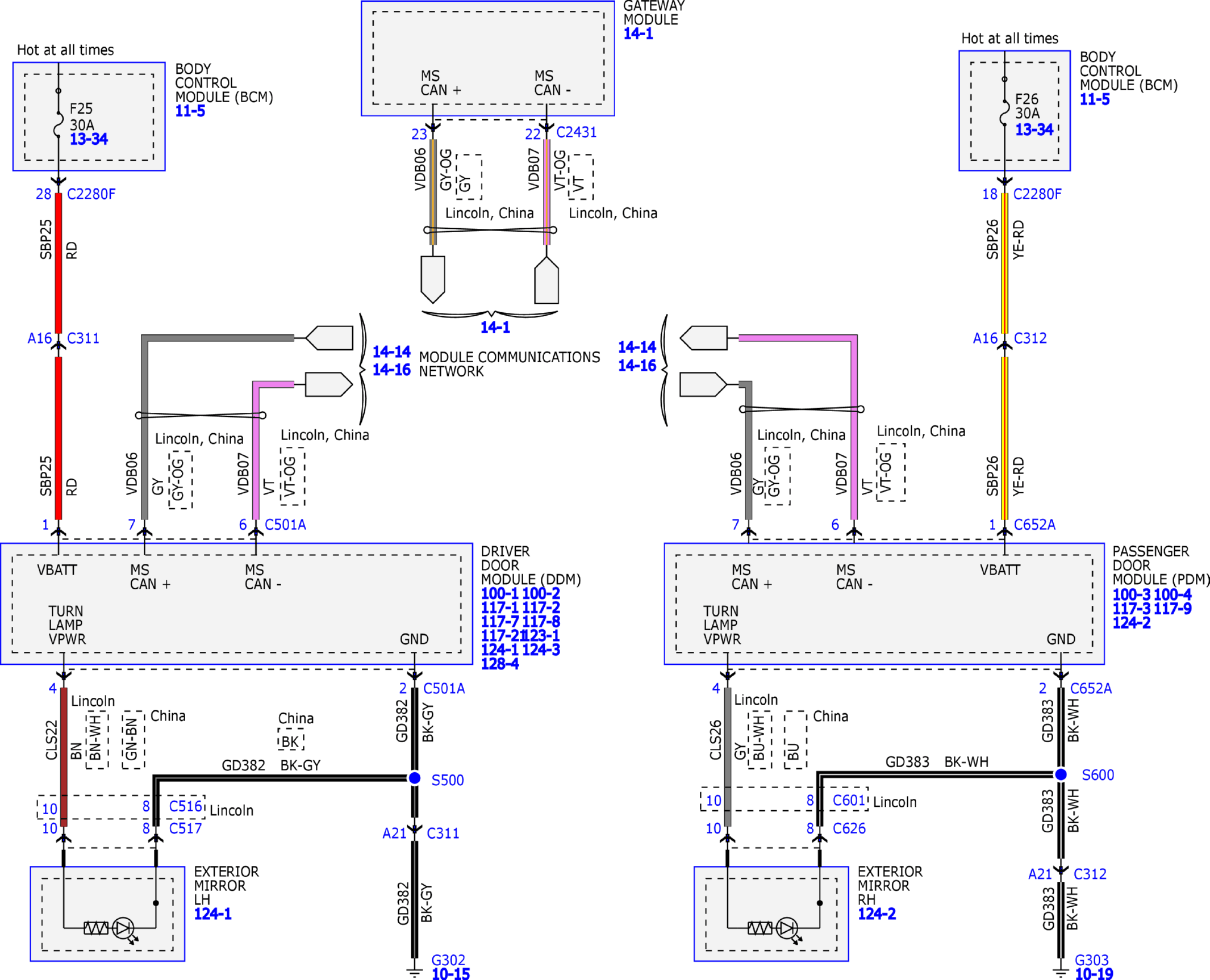

Fig 6: Turn Signal/Stop/Hazard Lamps Wiring Diagram (6 Of 6)
GFDW80077Courtesy of FORD MOTOR COMPANY
