Transmission Controls - 6F50/6F55

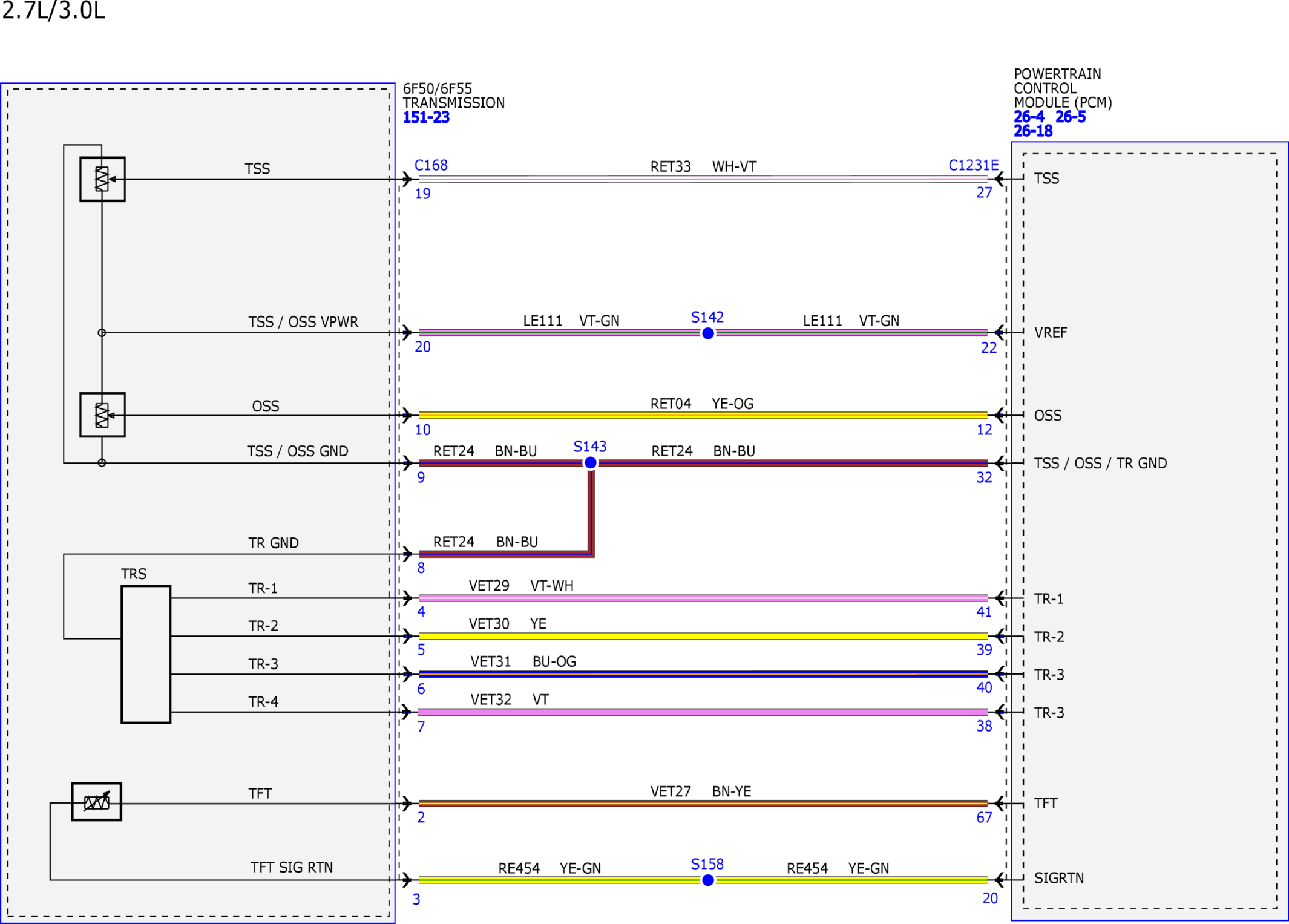

Fig 1: Transmission Controls Wiring Diagram - 6F50/6F55 (1 Of 4)
GFDW80067Courtesy of FORD MOTOR COMPANY

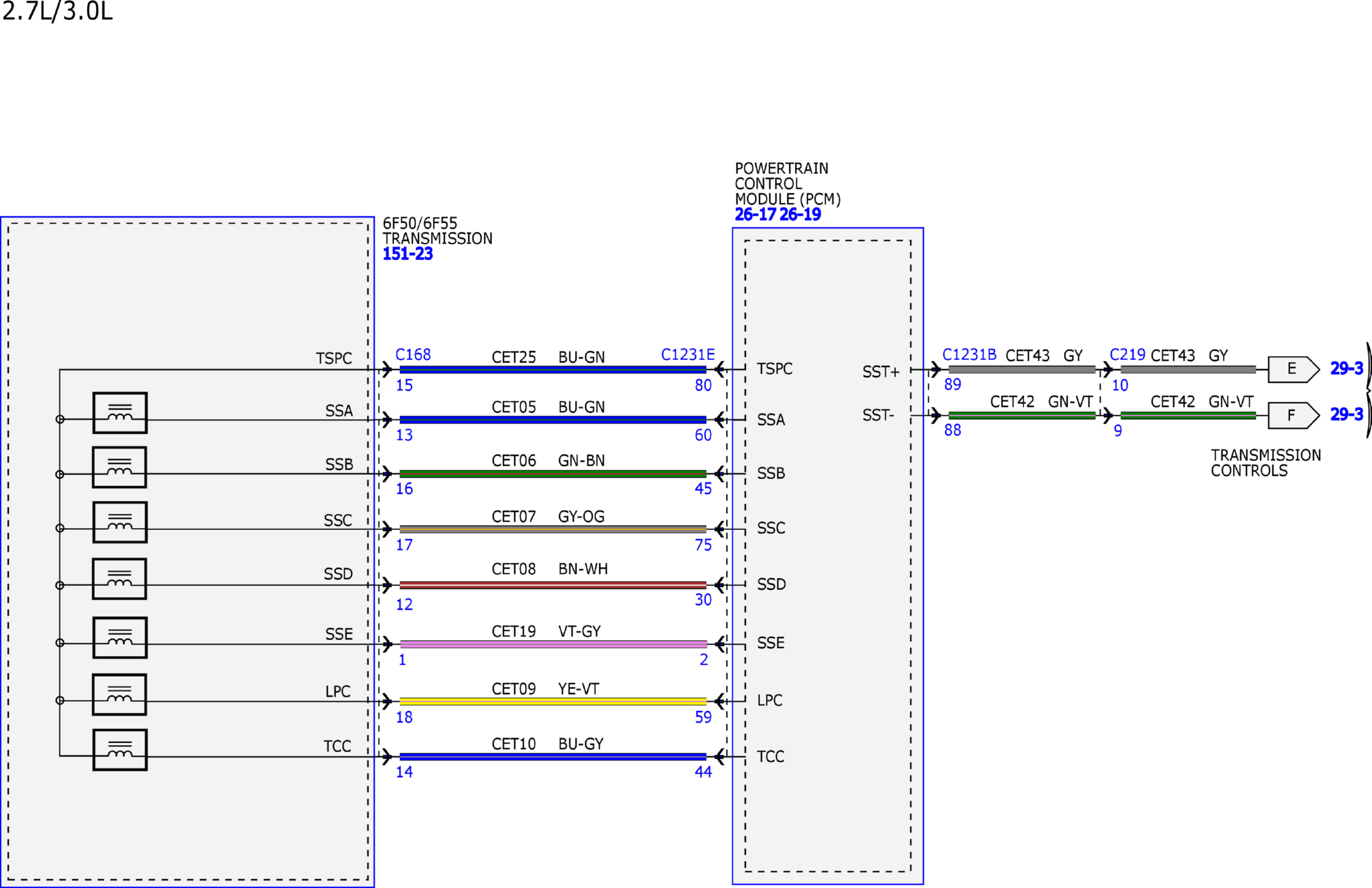

Fig 2: Transmission Controls Wiring Diagram - 6F50/6F55 (2 Of 4)
GFDW80068Courtesy of FORD MOTOR COMPANY

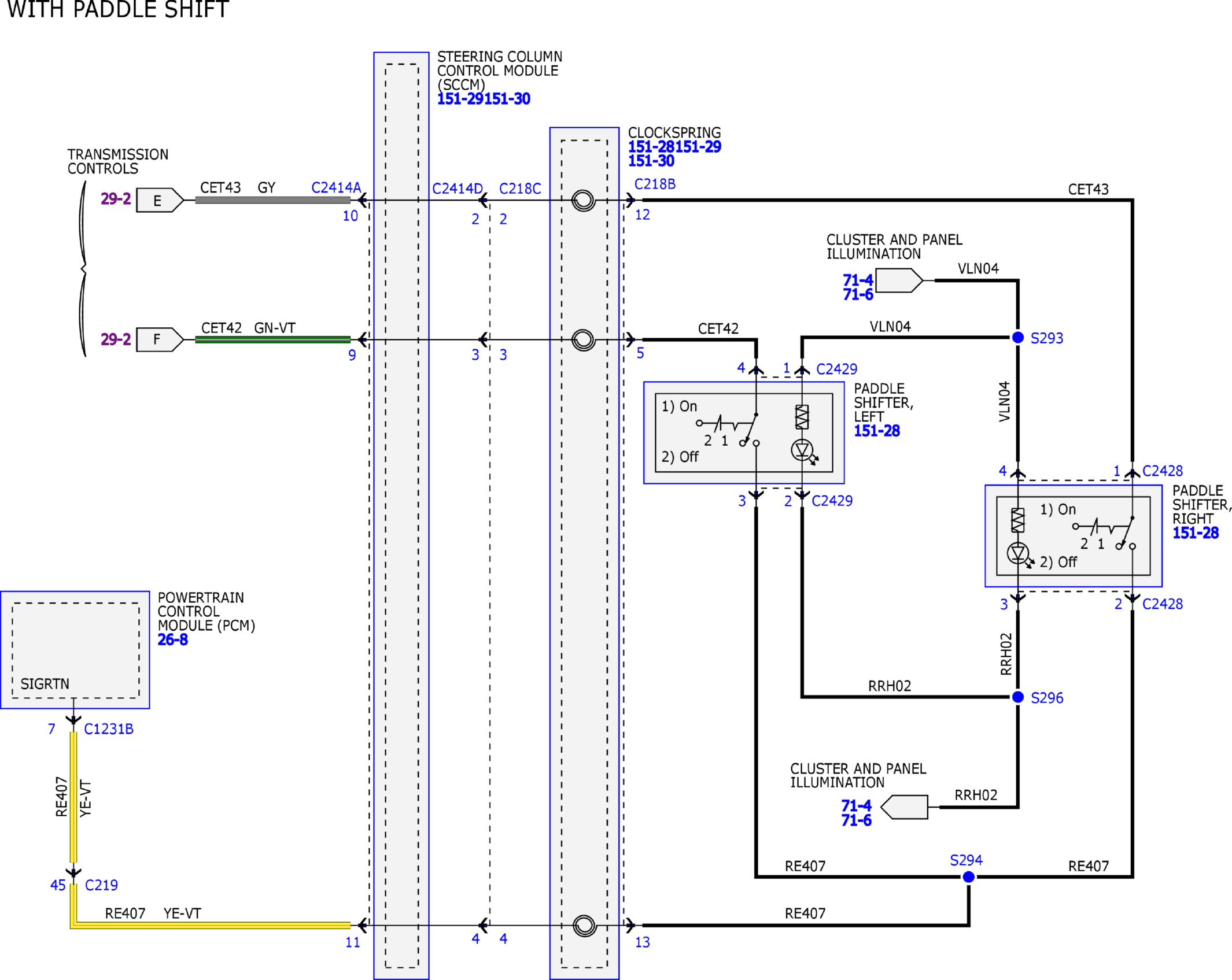

Fig 3: Transmission Controls Wiring Diagram - 6F50/6F55 (3 Of 4)
GFDW80069Courtesy of FORD MOTOR COMPANY

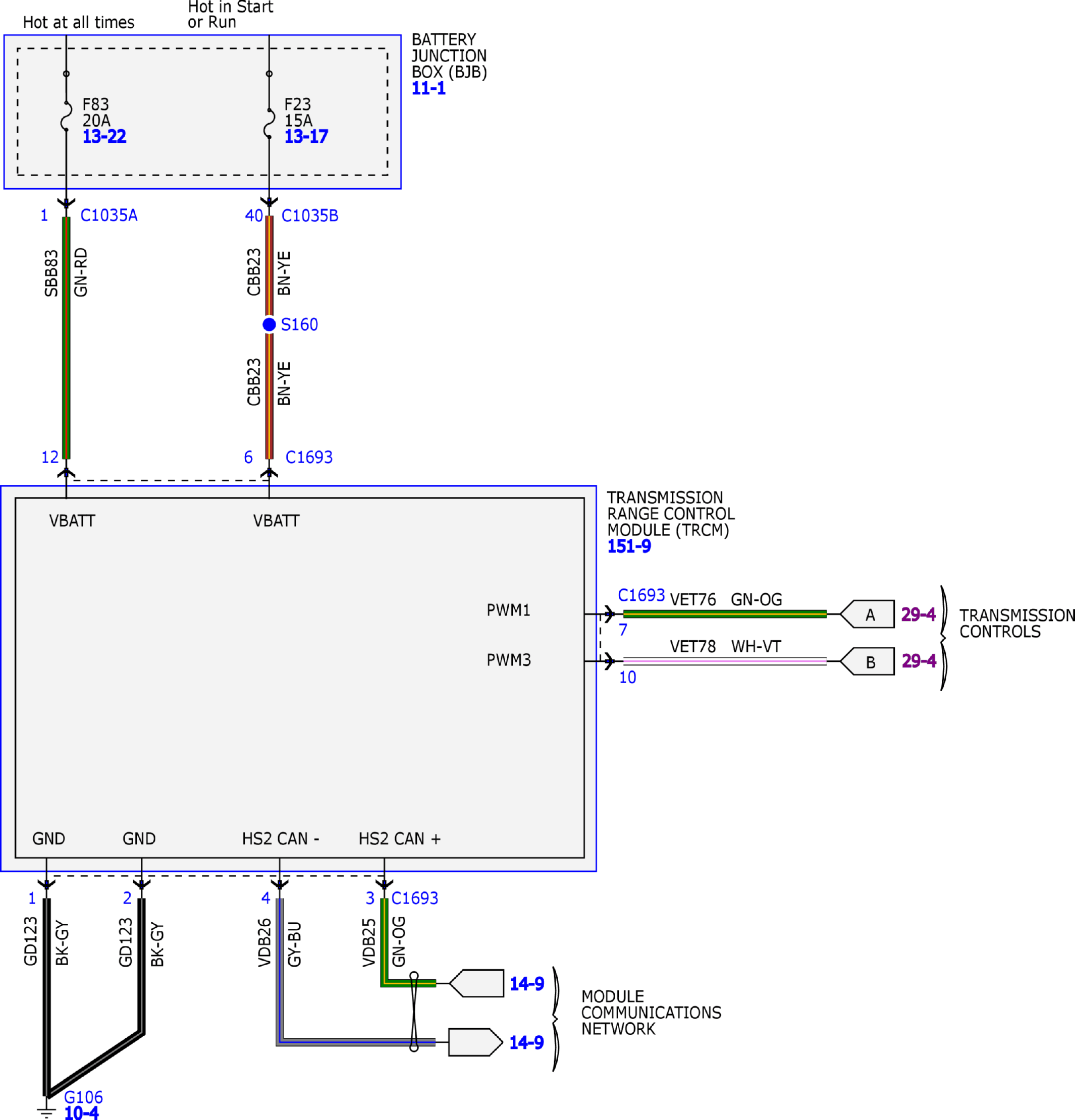

Fig 4: Transmission Controls Wiring Diagram - 6F50/6F55 (4 Of 4)
GFDW80071Courtesy of FORD MOTOR COMPANY
