Transmission Controls - 6F35

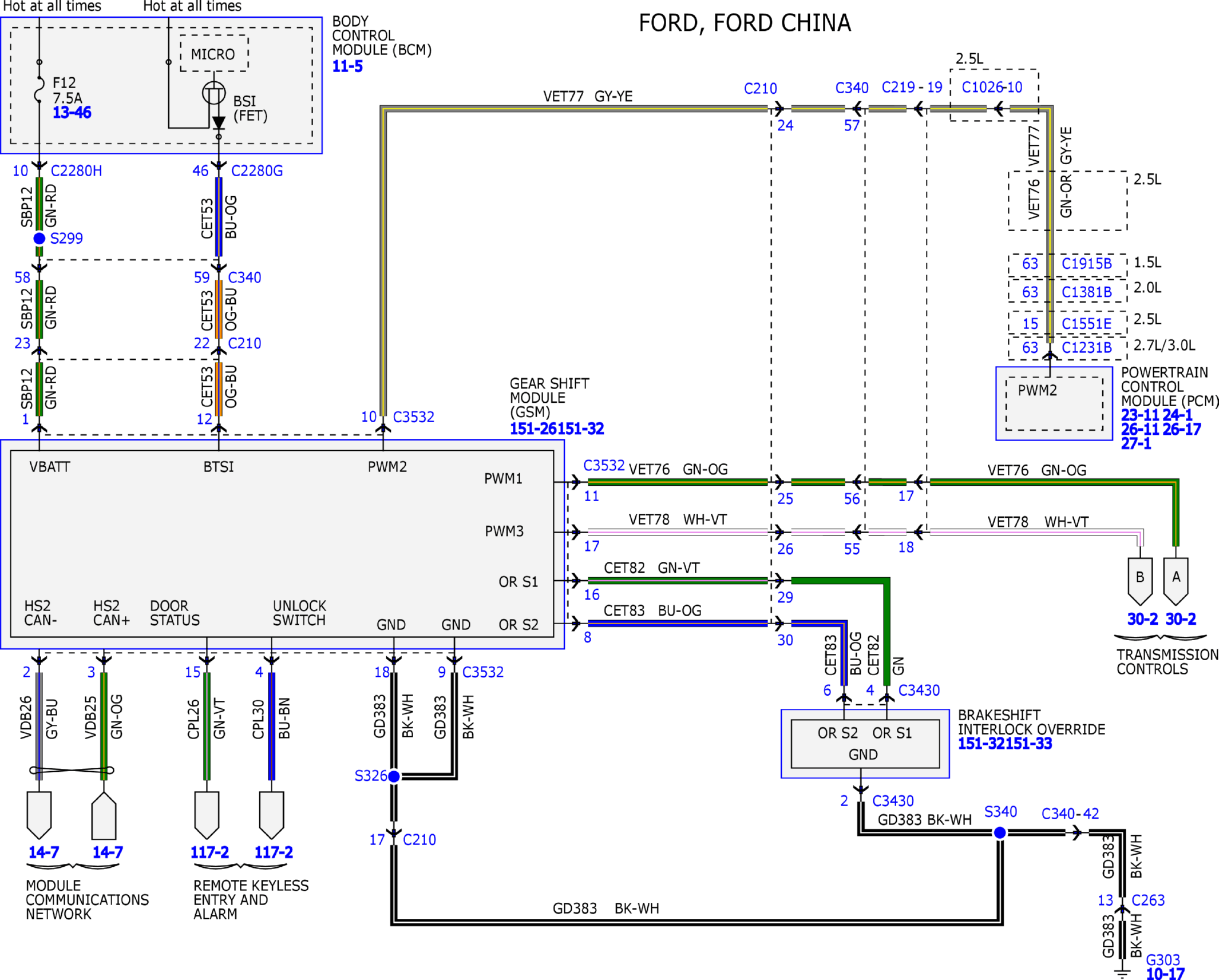

Fig 1: Transmission Controls Wiring Diagram - 6F35 (1 Of 7)
GFDW80060Courtesy of FORD MOTOR COMPANY

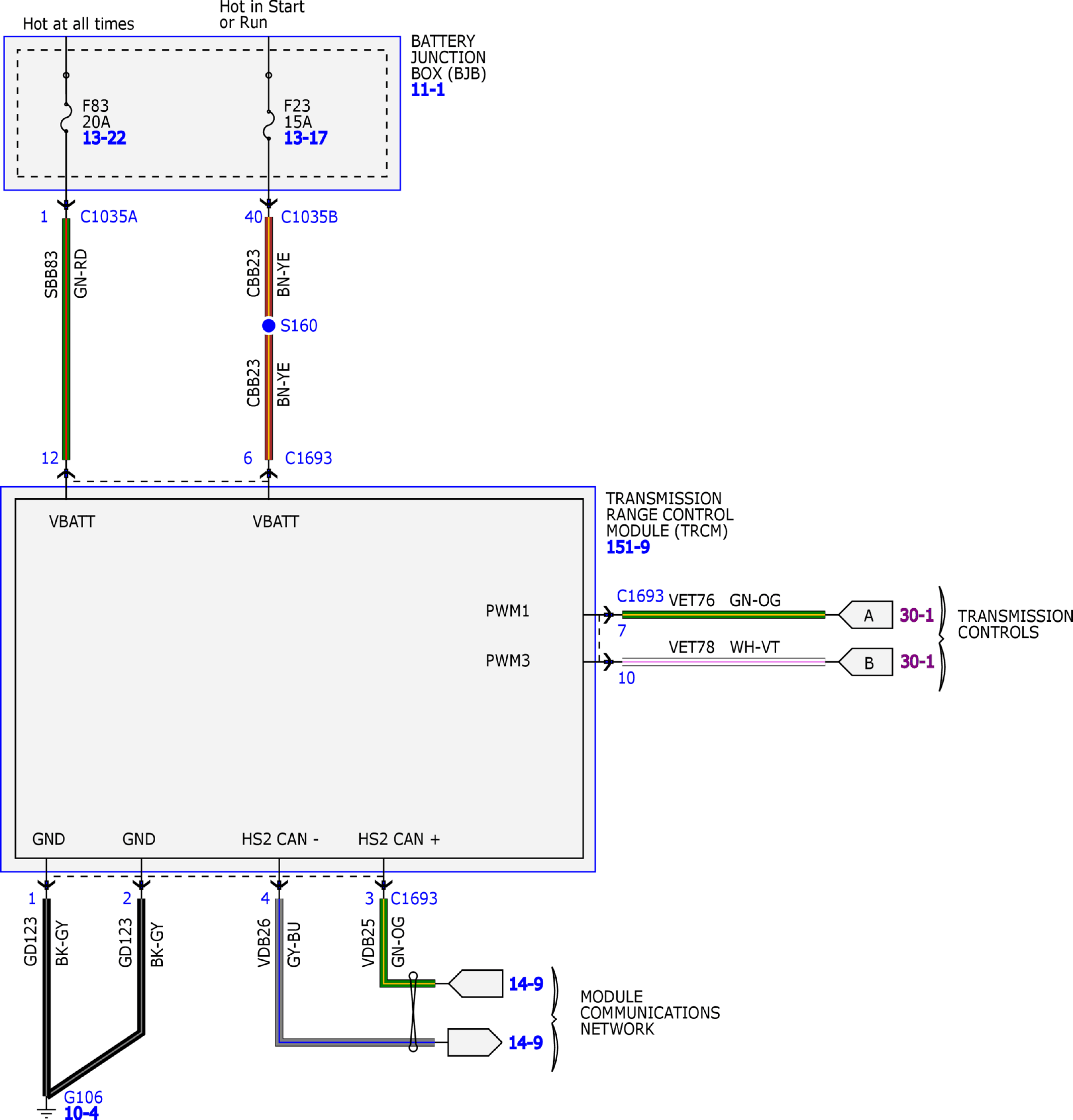

Fig 2: Transmission Controls Wiring Diagram - 6F35 (2 Of 7)
GFDW80061Courtesy of FORD MOTOR COMPANY

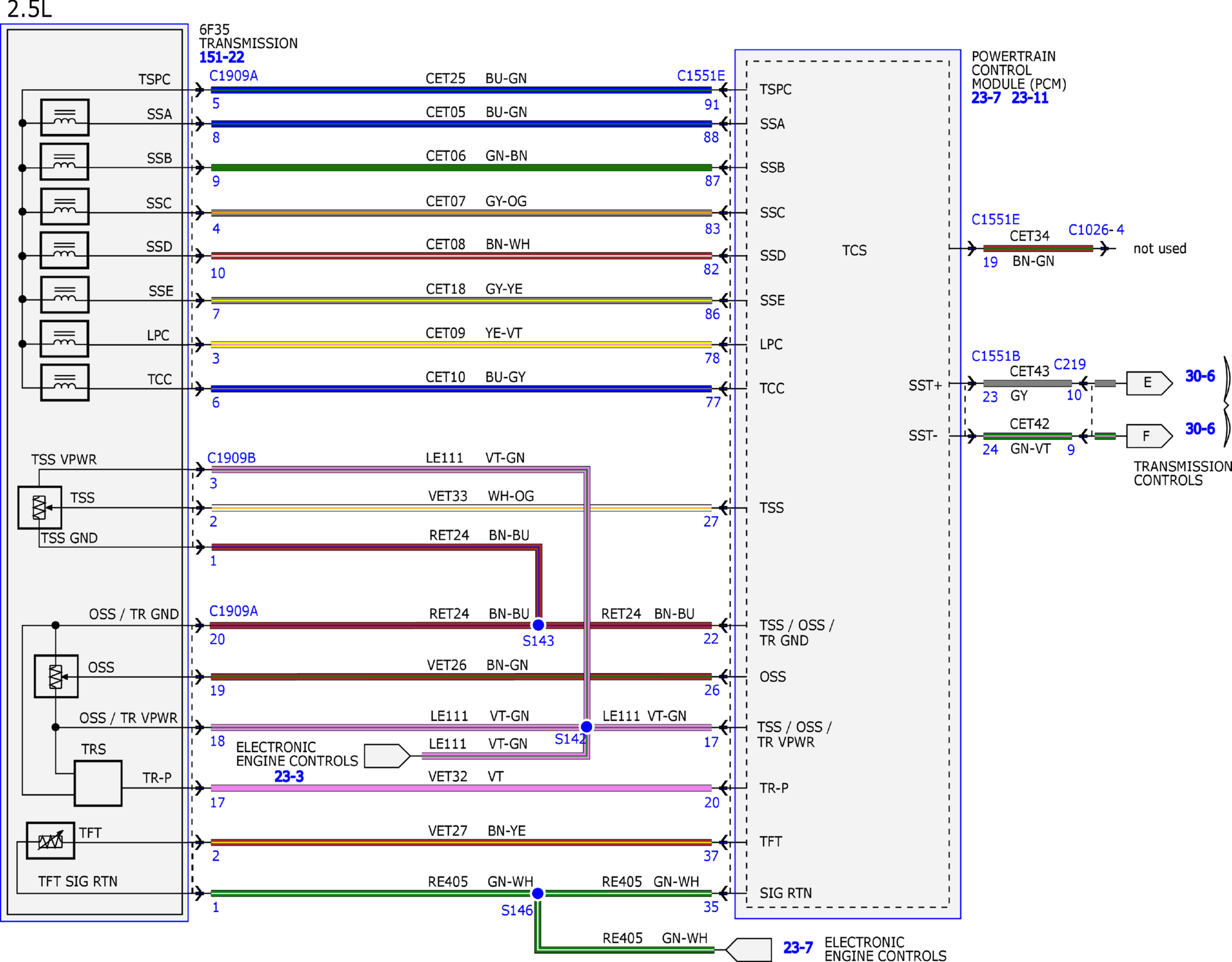

Fig 3: Transmission Controls Wiring Diagram - 6F35 (3 Of 7)
GFDW80062Courtesy of FORD MOTOR COMPANY

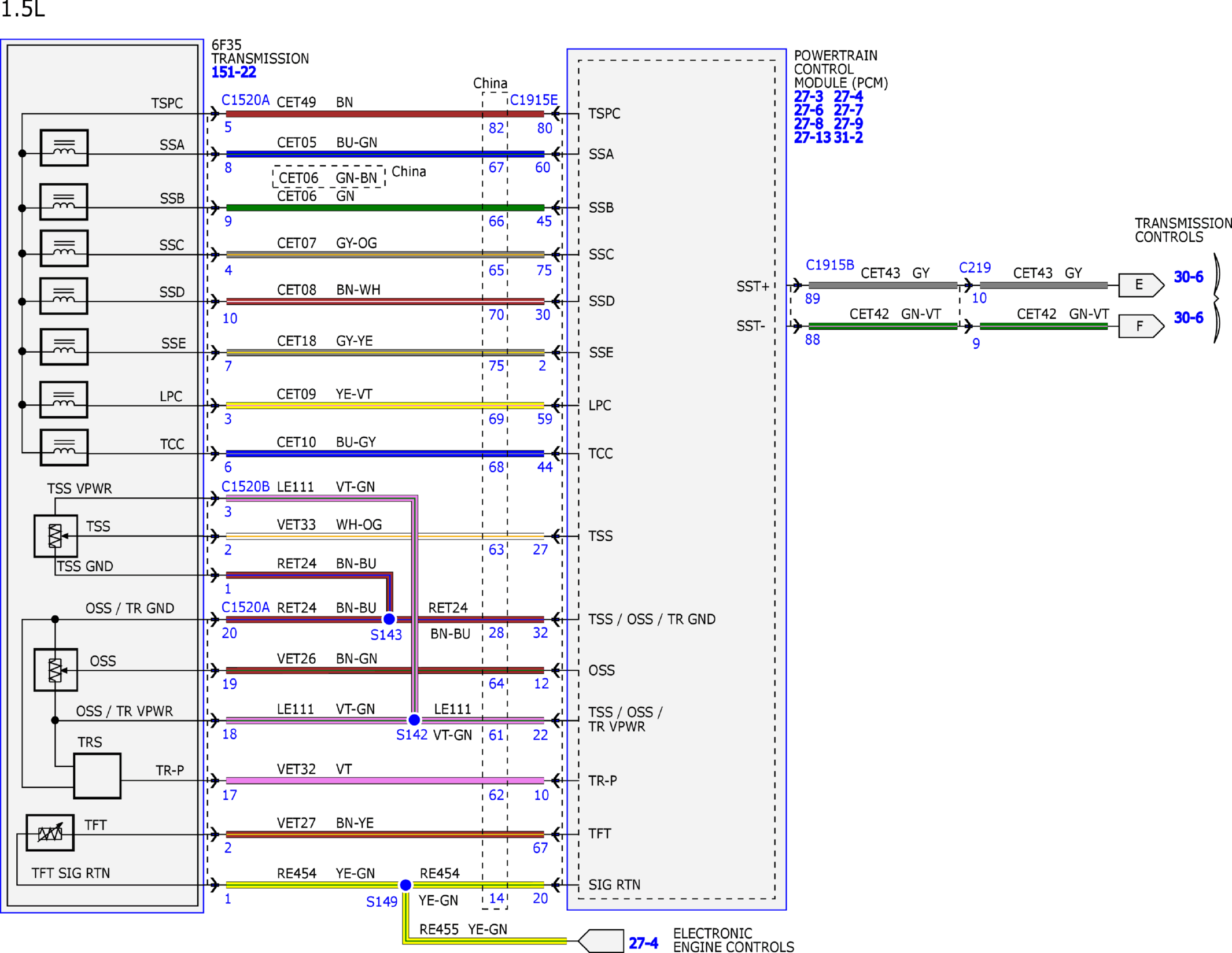

Fig 4: Transmission Controls Wiring Diagram - 6F35 (4 Of 7)
GFDW80063Courtesy of FORD MOTOR COMPANY

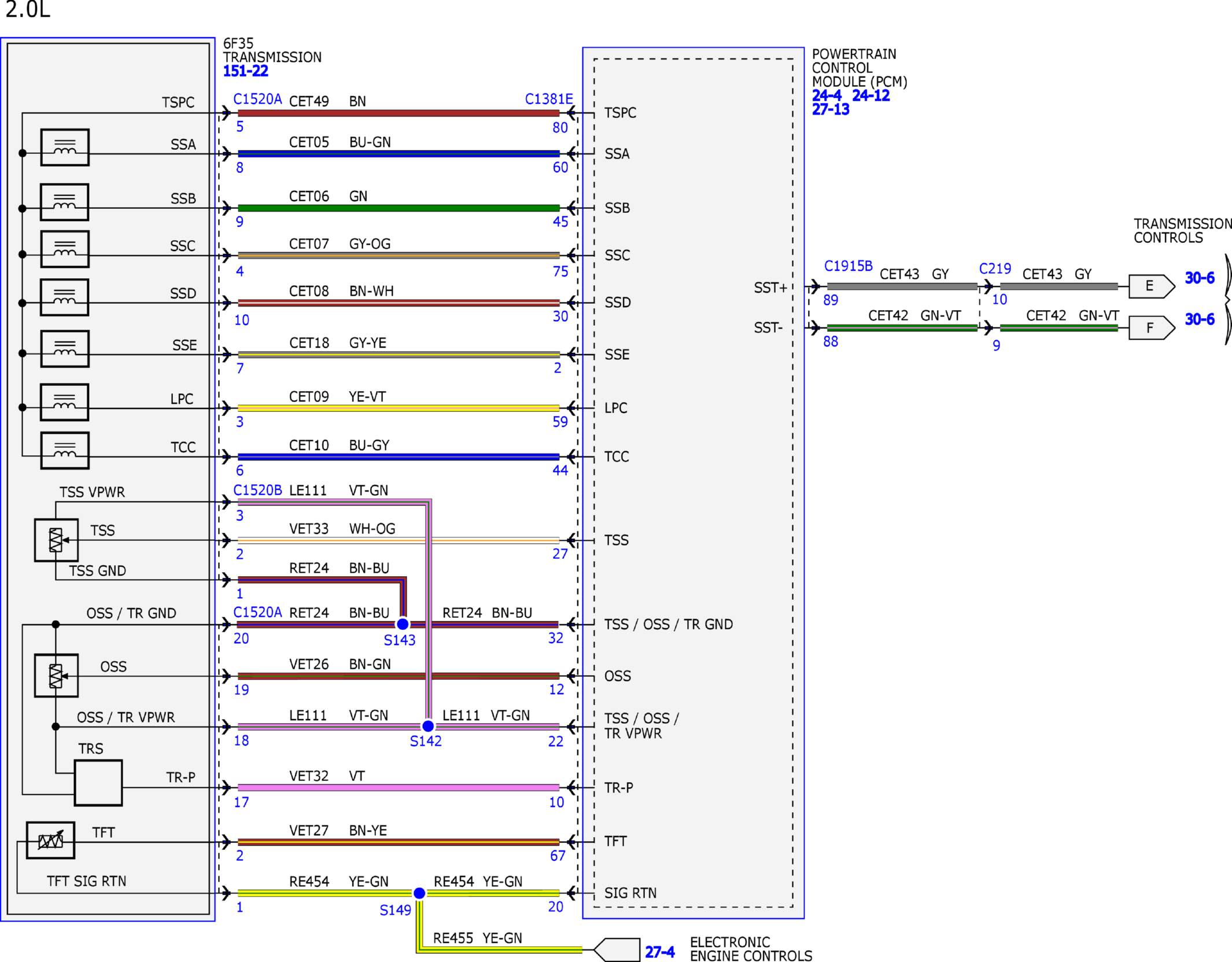

Fig 5: Transmission Controls Wiring Diagram - 6F35 (5 Of 7)
GFDW80064Courtesy of FORD MOTOR COMPANY

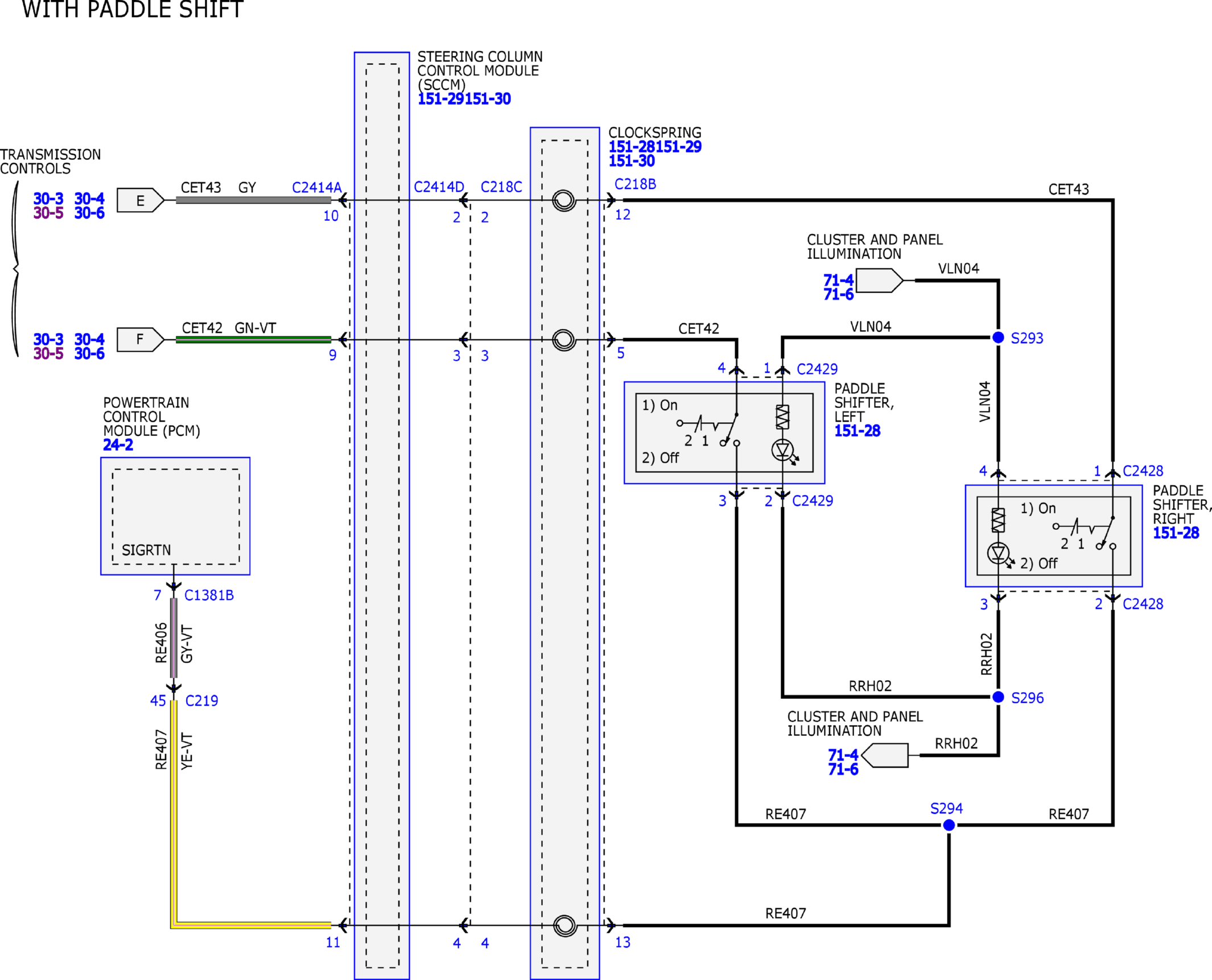

Fig 6: Transmission Controls Wiring Diagram - 6F35 (6 Of 7)
GFDW80065Courtesy of FORD MOTOR COMPANY

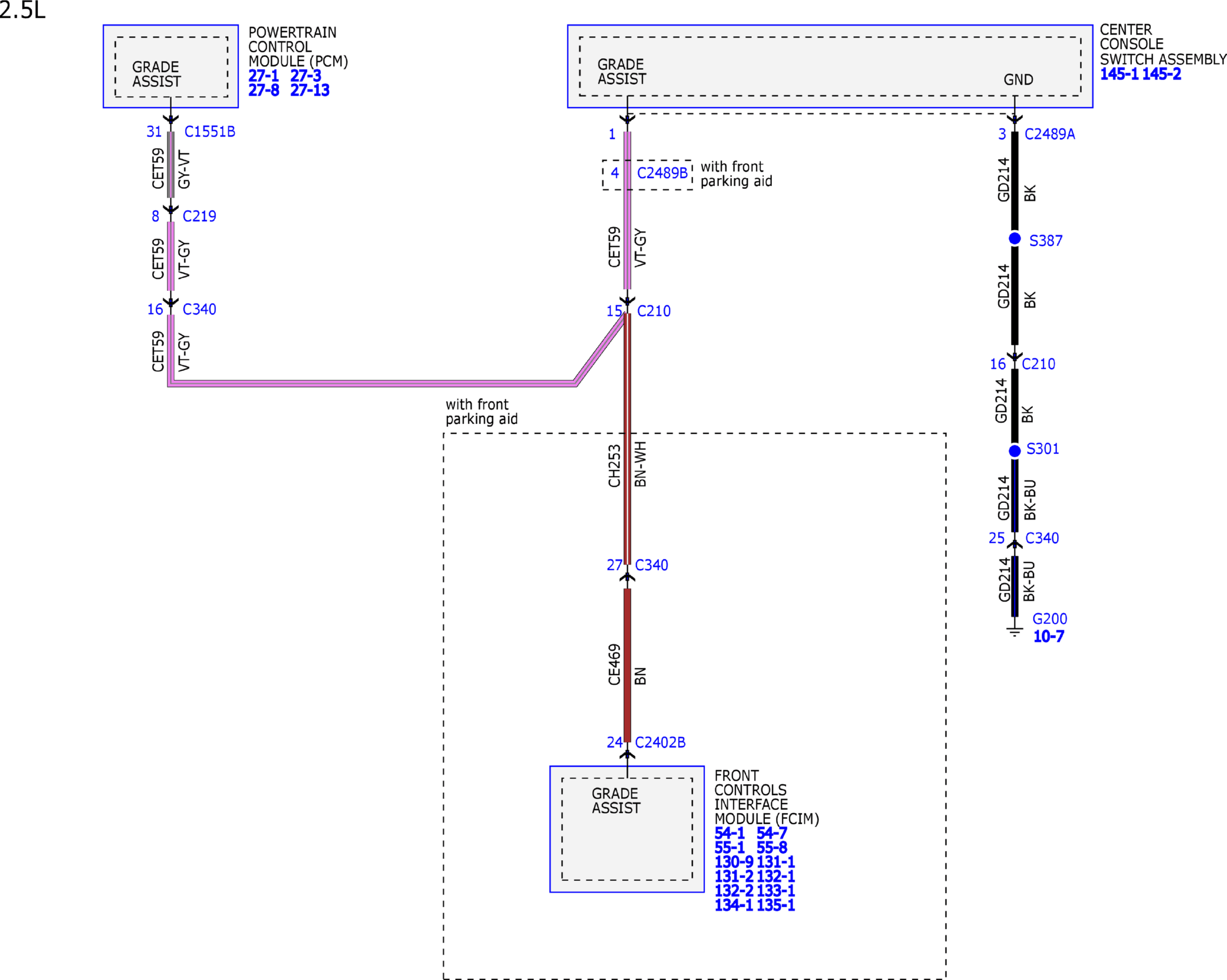

Fig 7: Transmission Controls Wiring Diagram - 6F35 (7 Of 7)
GFDW80066Courtesy of FORD MOTOR COMPANY
