Supplemental Restraint System

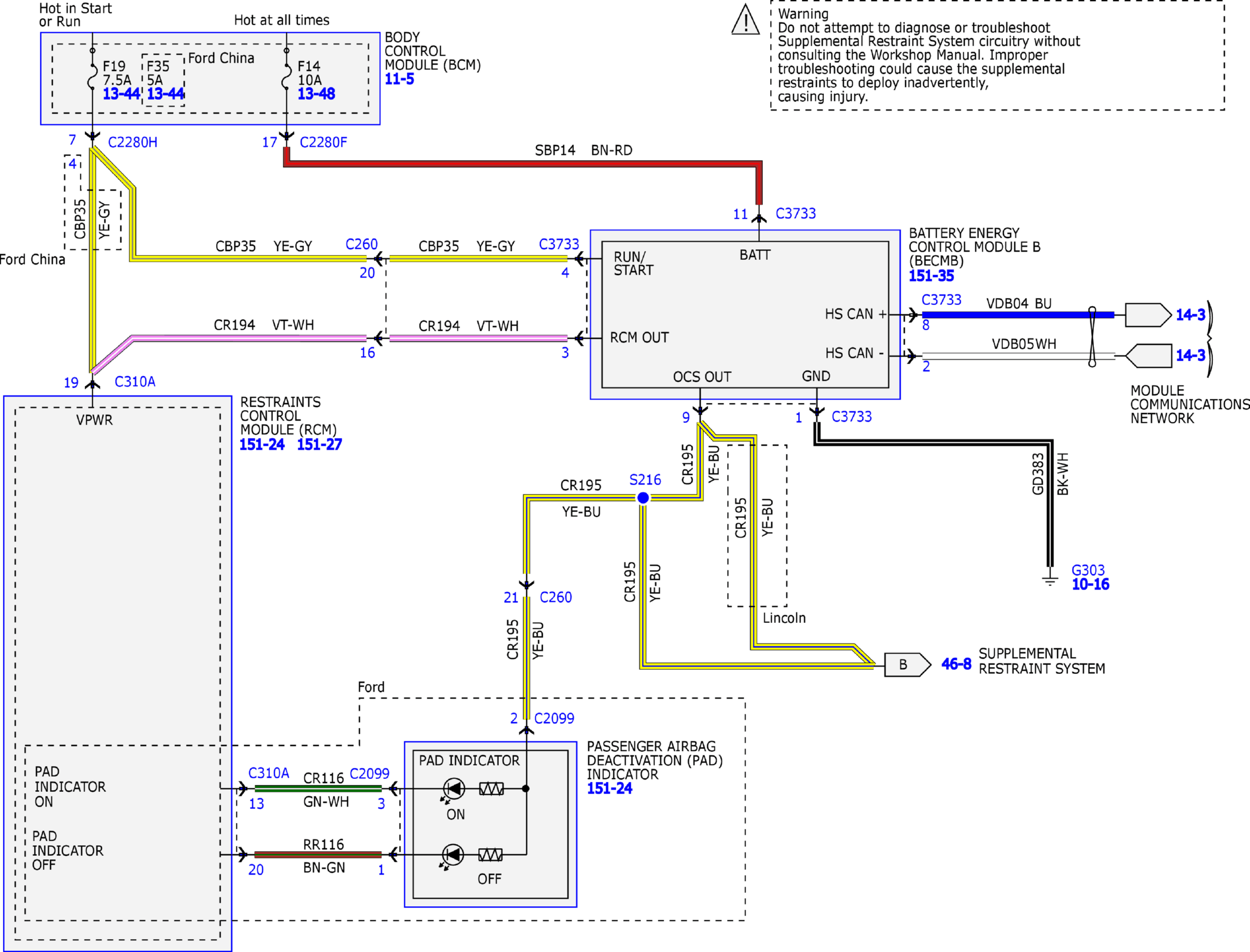

Fig 1: Supplemental Restraint System Wiring Diagram (1 Of 10)
GFDW80049Courtesy of FORD MOTOR COMPANY

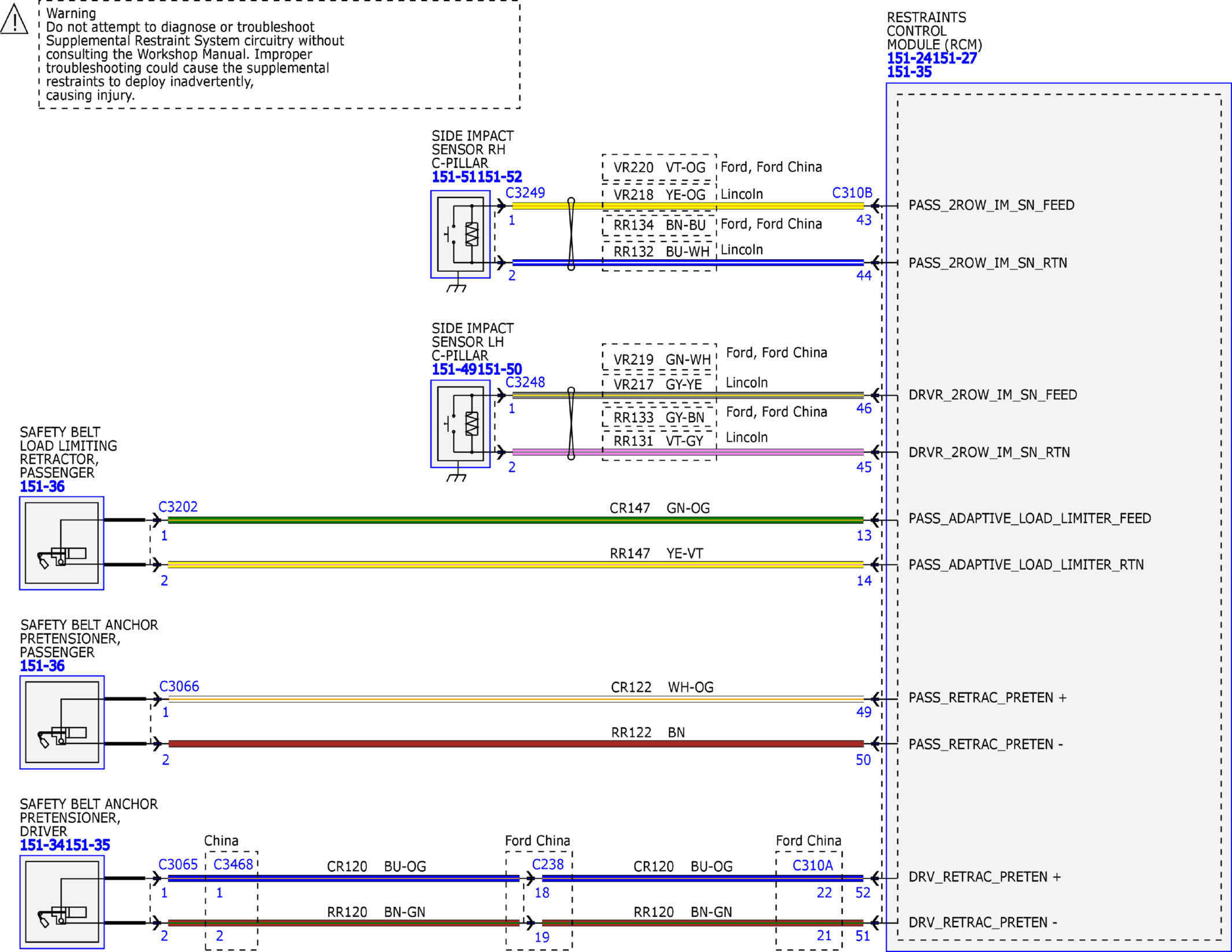

Fig 2: Supplemental Restraint System Wiring Diagram (2 Of 10)
GFDW80050Courtesy of FORD MOTOR COMPANY

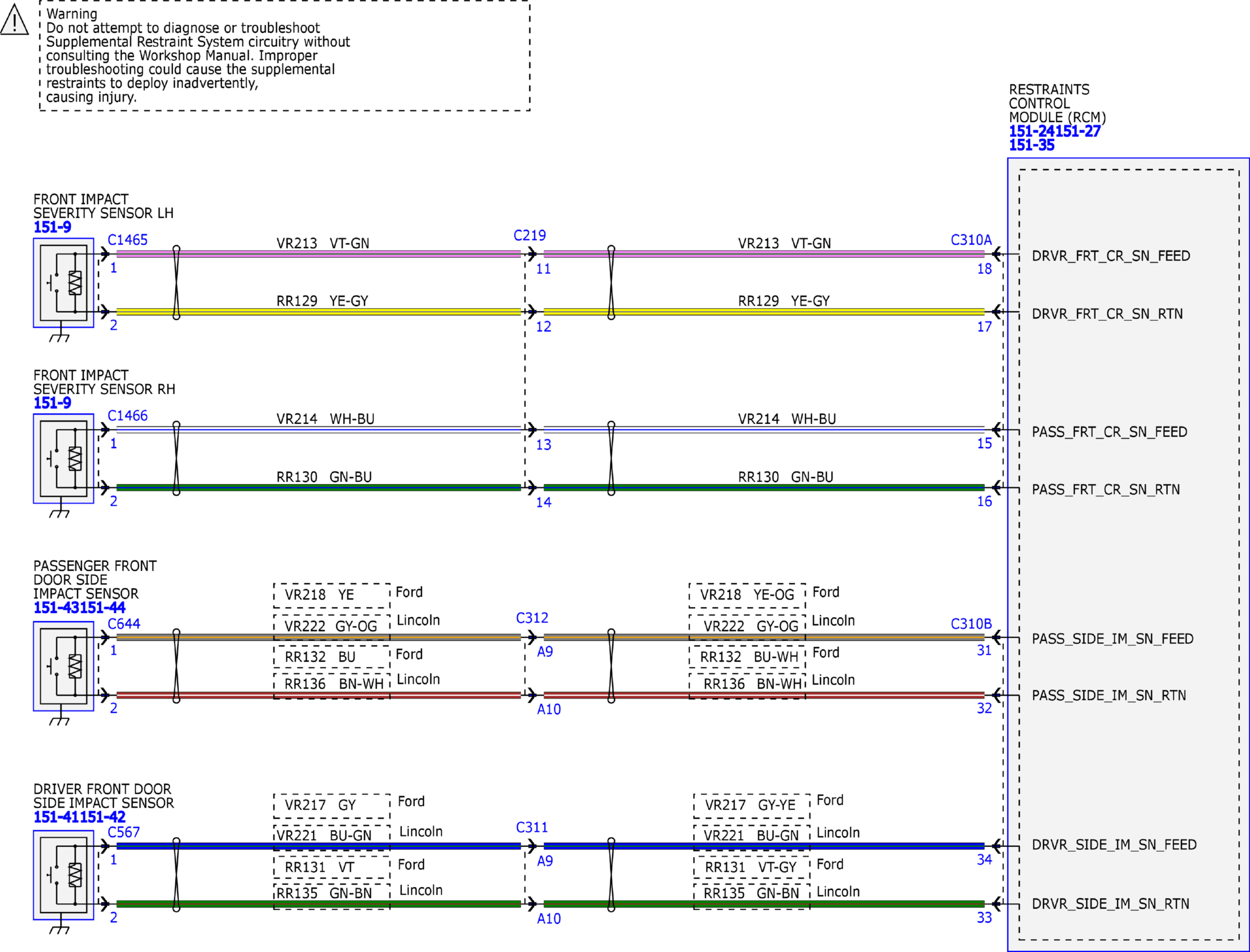

Fig 3: Supplemental Restraint System Wiring Diagram (3 Of 10)
GFDW80051Courtesy of FORD MOTOR COMPANY

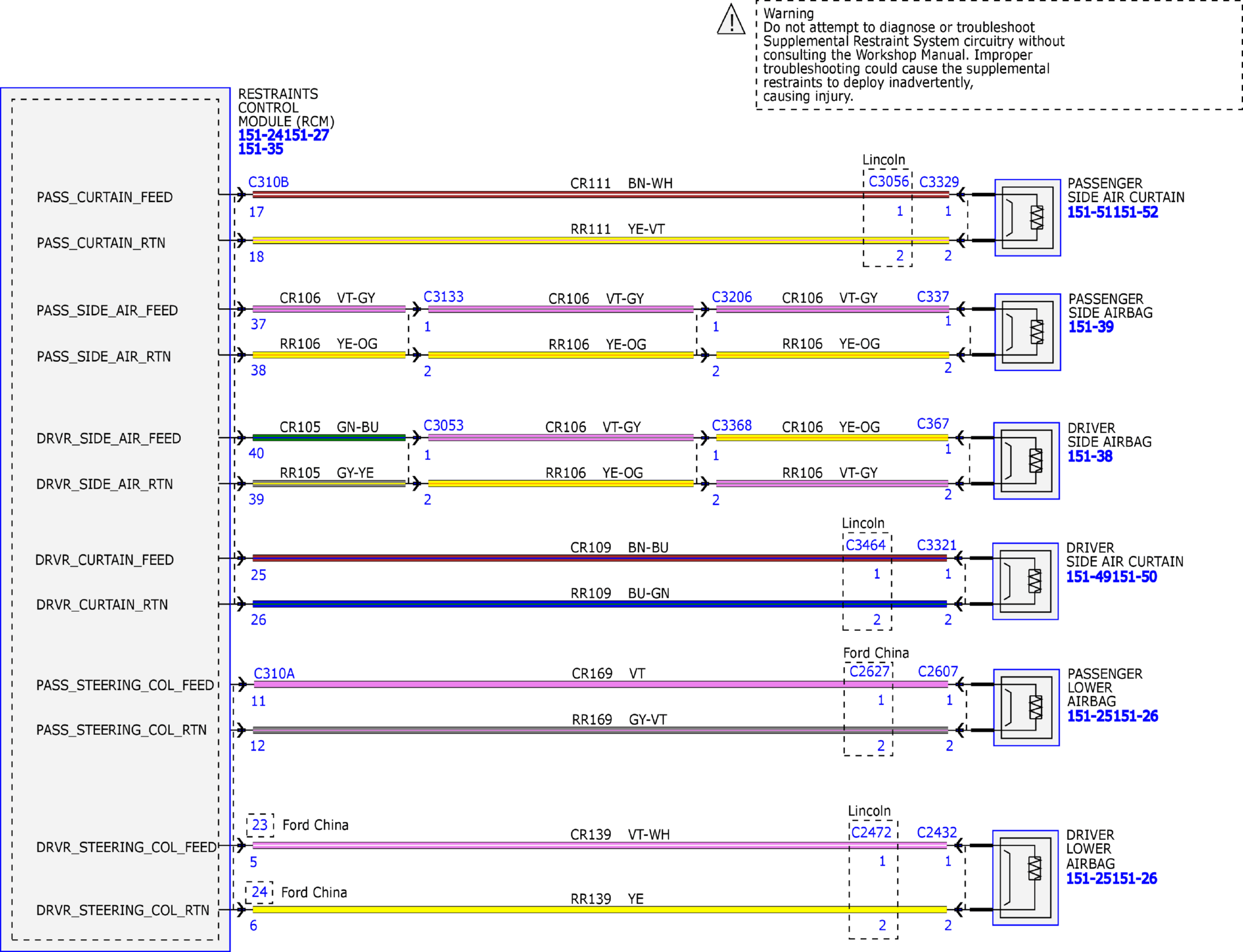

Fig 4: Supplemental Restraint System Wiring Diagram (4 Of 10)
GFDW80052Courtesy of FORD MOTOR COMPANY

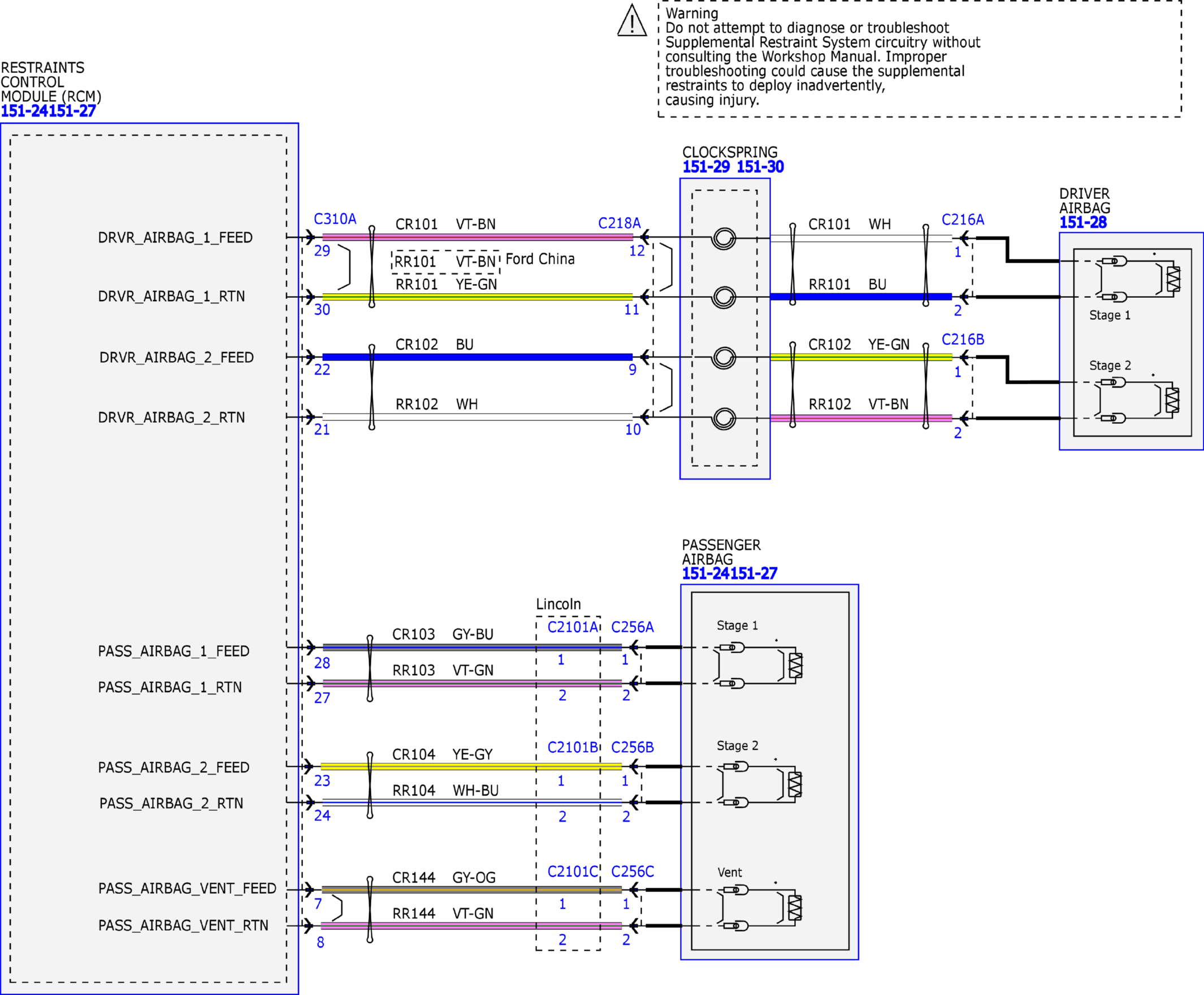

Fig 5: Supplemental Restraint System Wiring Diagram (5 Of 10)
GFDW80053Courtesy of FORD MOTOR COMPANY

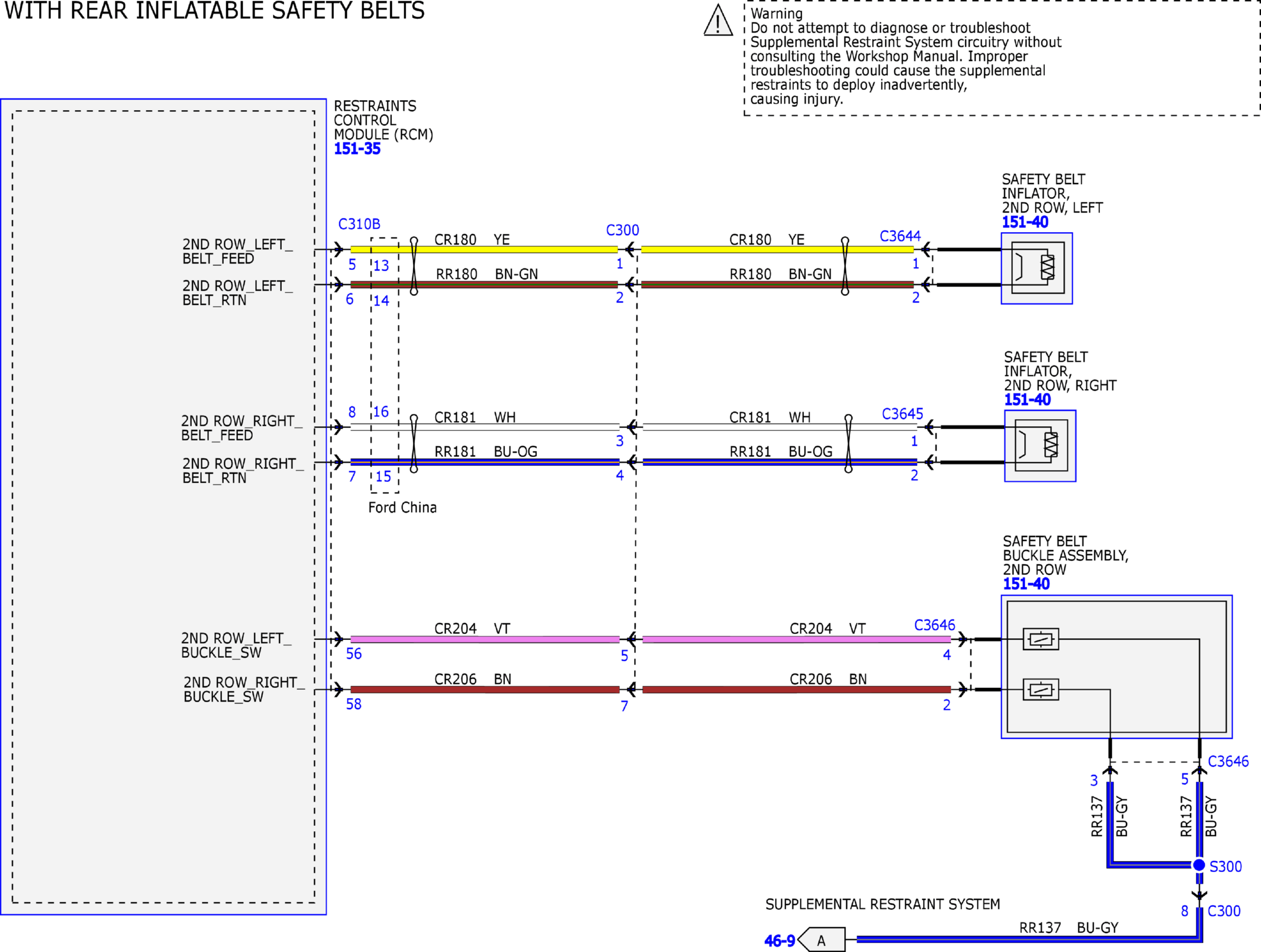

Fig 6: Supplemental Restraint System Wiring Diagram (6 Of 10)
GFDW80054Courtesy of FORD MOTOR COMPANY

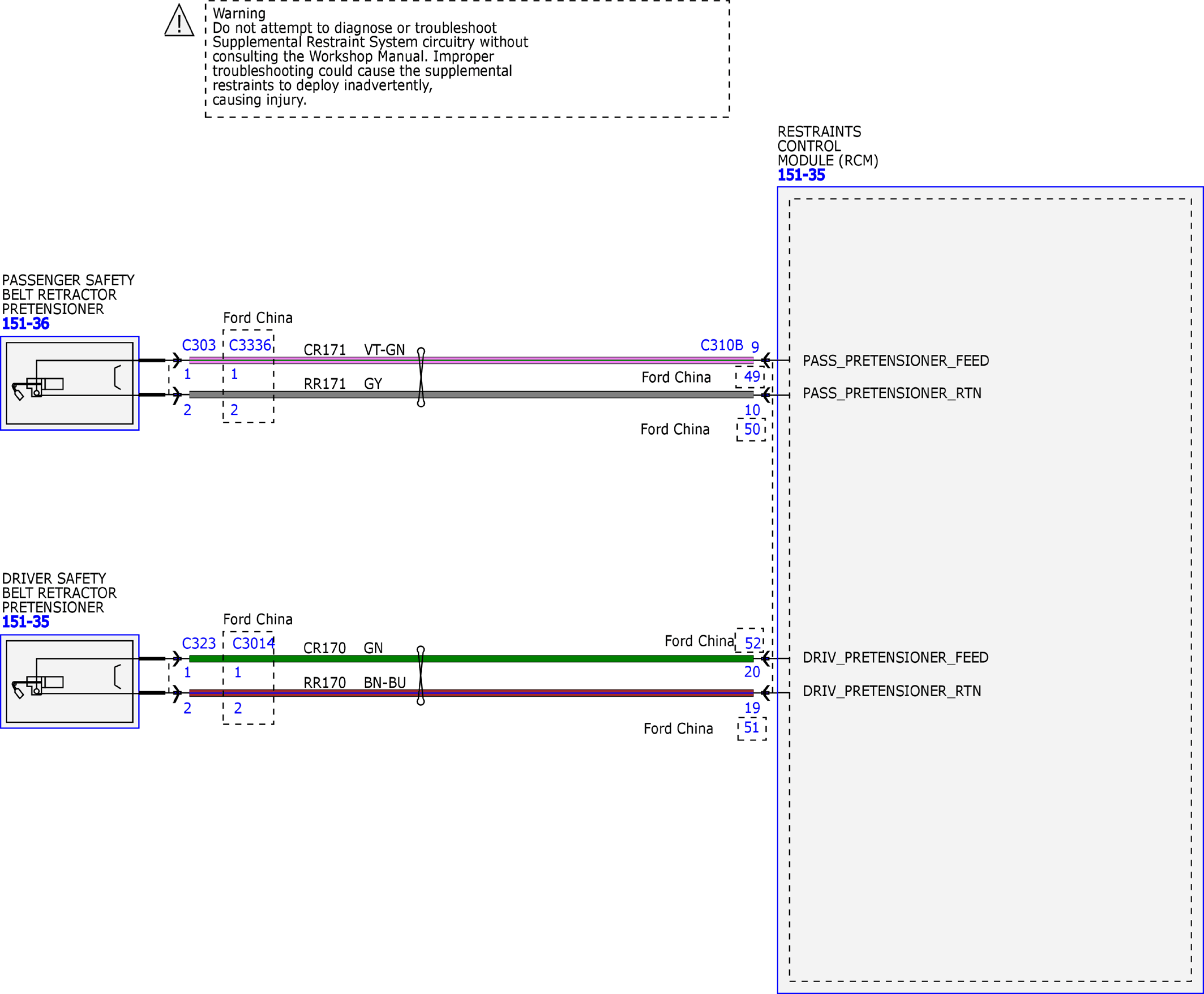

Fig 7: Supplemental Restraint System Wiring Diagram (7 Of 10)
GFDW80055Courtesy of FORD MOTOR COMPANY

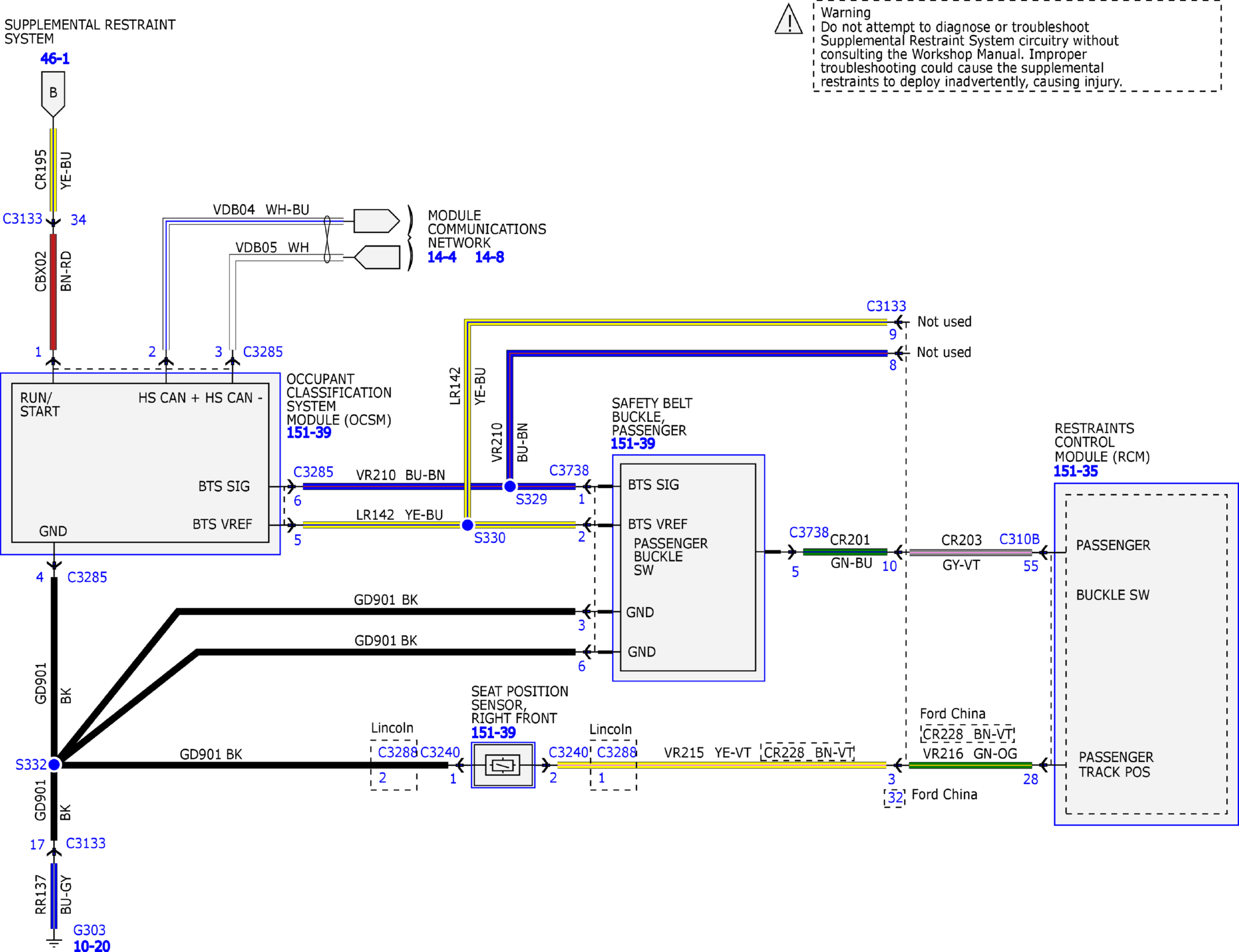

Fig 8: Supplemental Restraint System Wiring Diagram (8 Of 10)
GFDW80056Courtesy of FORD MOTOR COMPANY

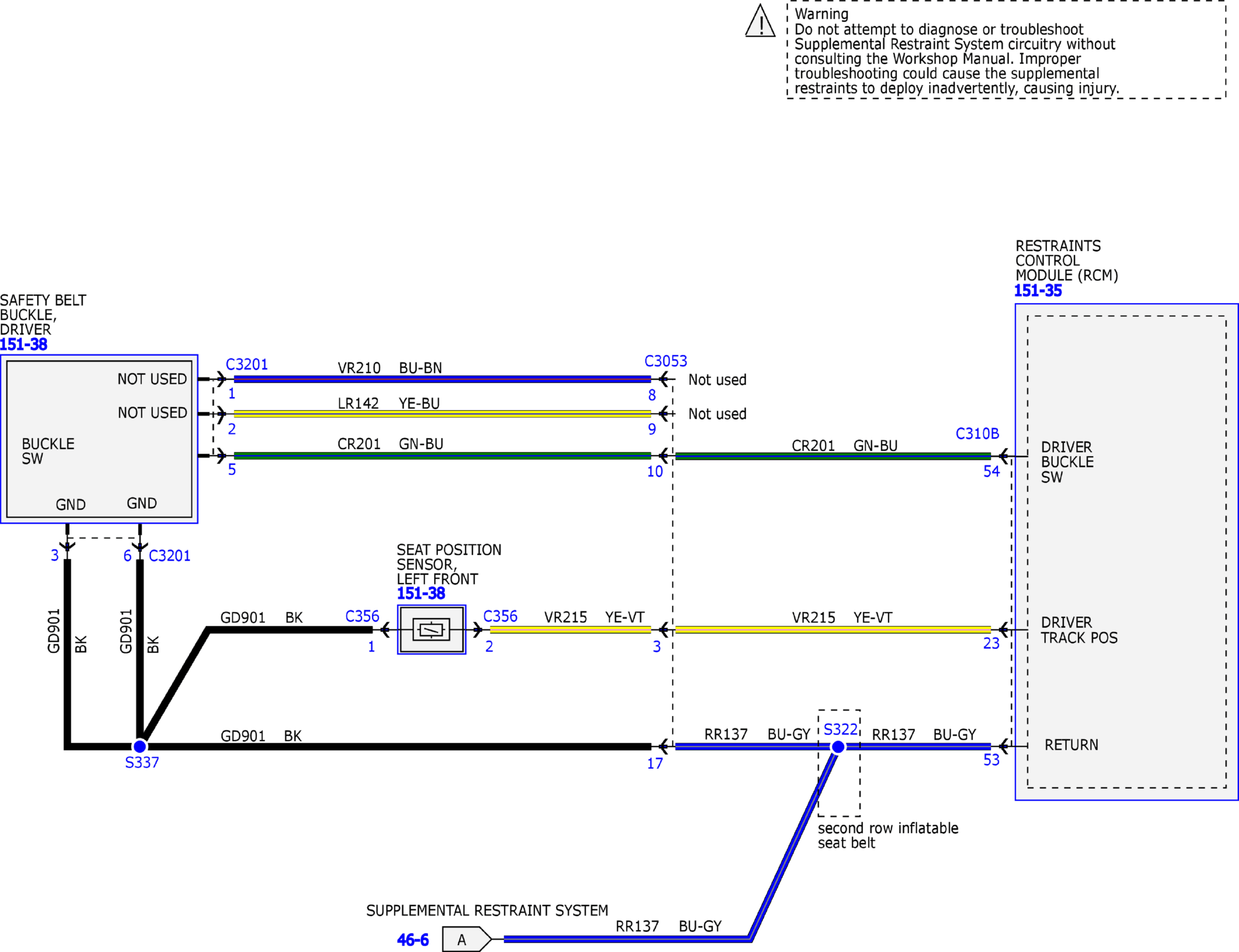

Fig 9: Supplemental Restraint System Wiring Diagram (9 Of 10)
GFDW80057Courtesy of FORD MOTOR COMPANY

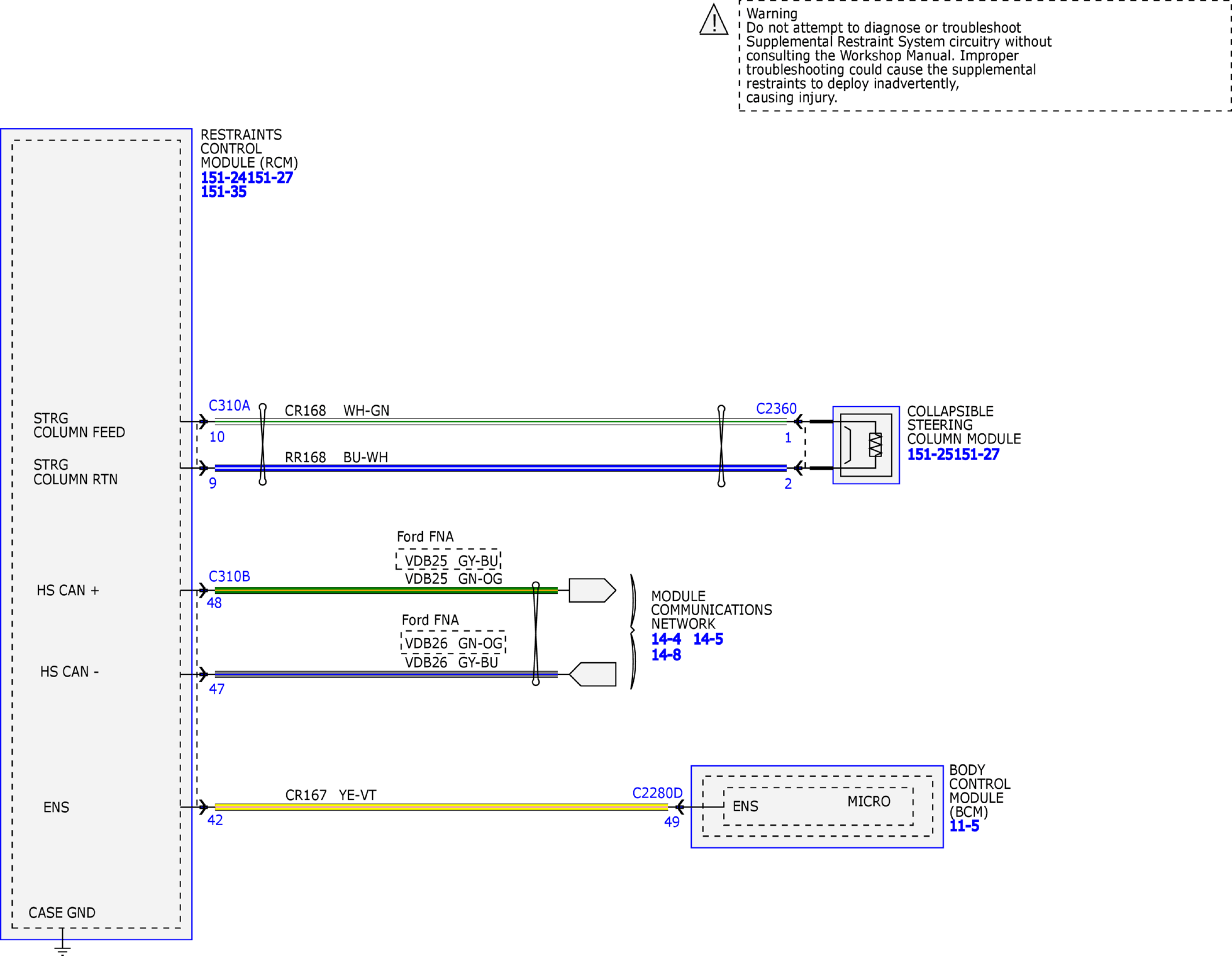

Fig 10: Supplemental Restraint System Wiring Diagram (10 Of 10)
GFDW80058Courtesy of FORD MOTOR COMPANY
