Parking Aid

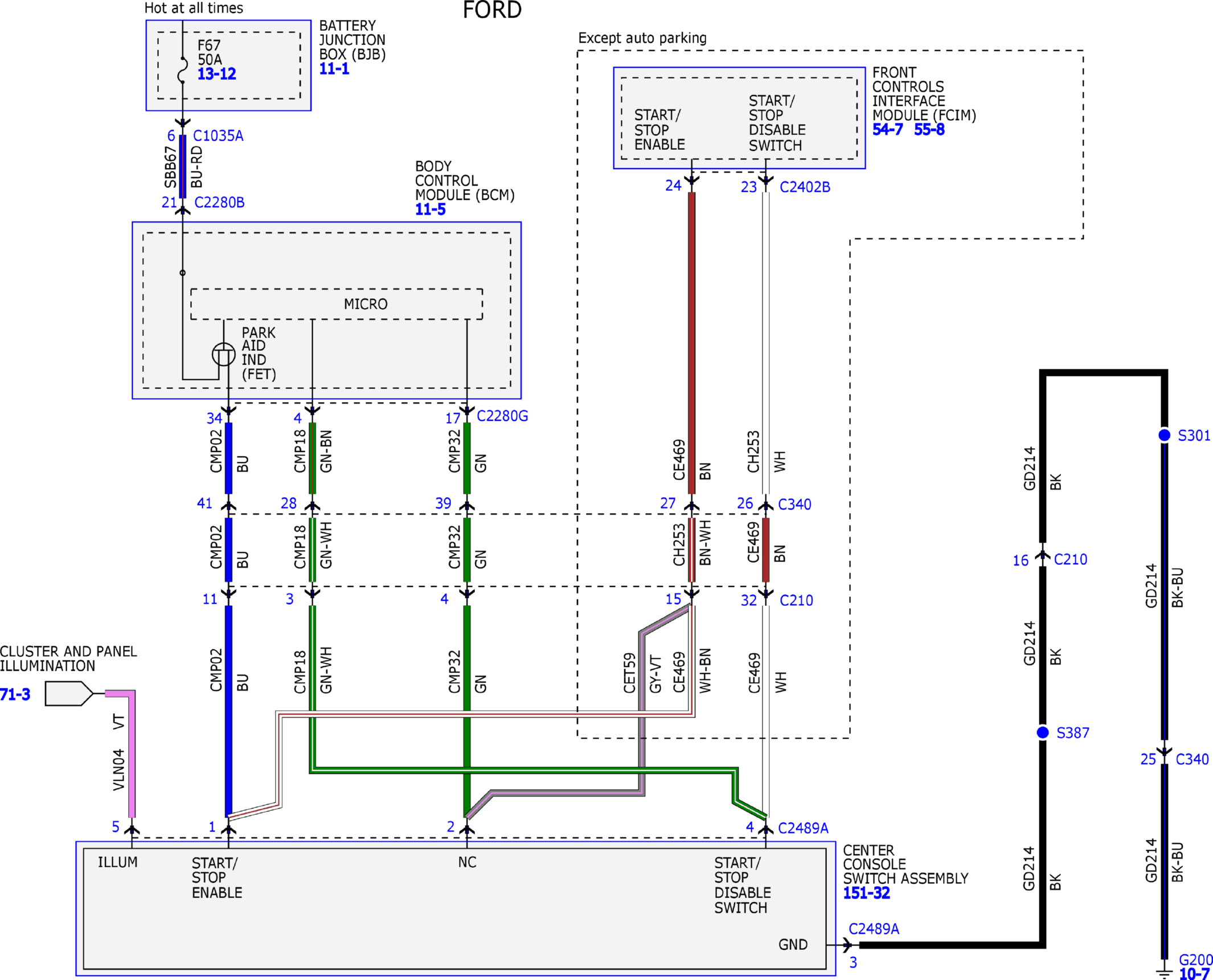

Fig 1: Parking Aid Wiring Diagram (1 Of 8)
GFDW79920Courtesy of FORD MOTOR COMPANY

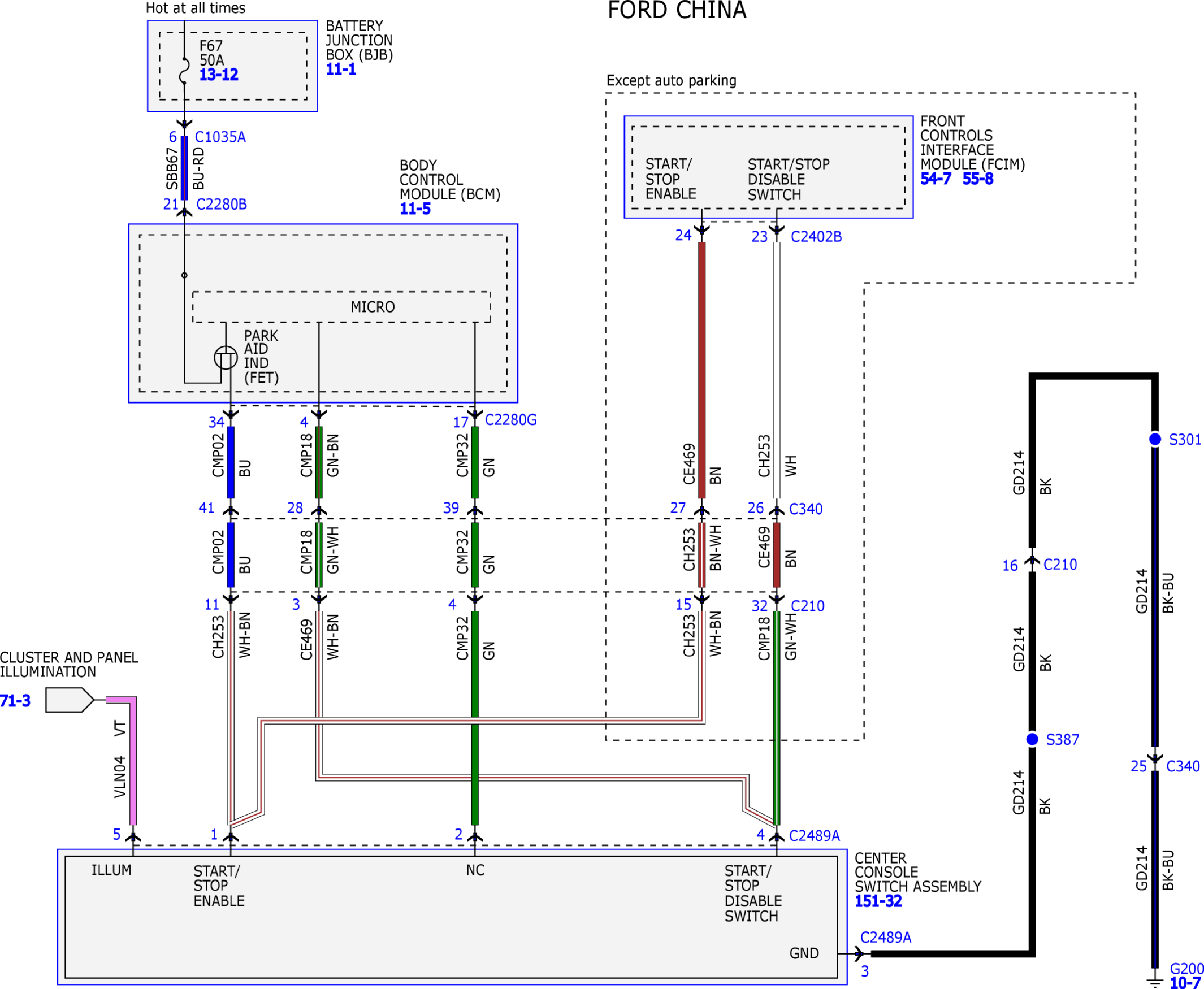

Fig 2: Parking Aid Wiring Diagram (2 Of 8)
GFDW79921Courtesy of FORD MOTOR COMPANY

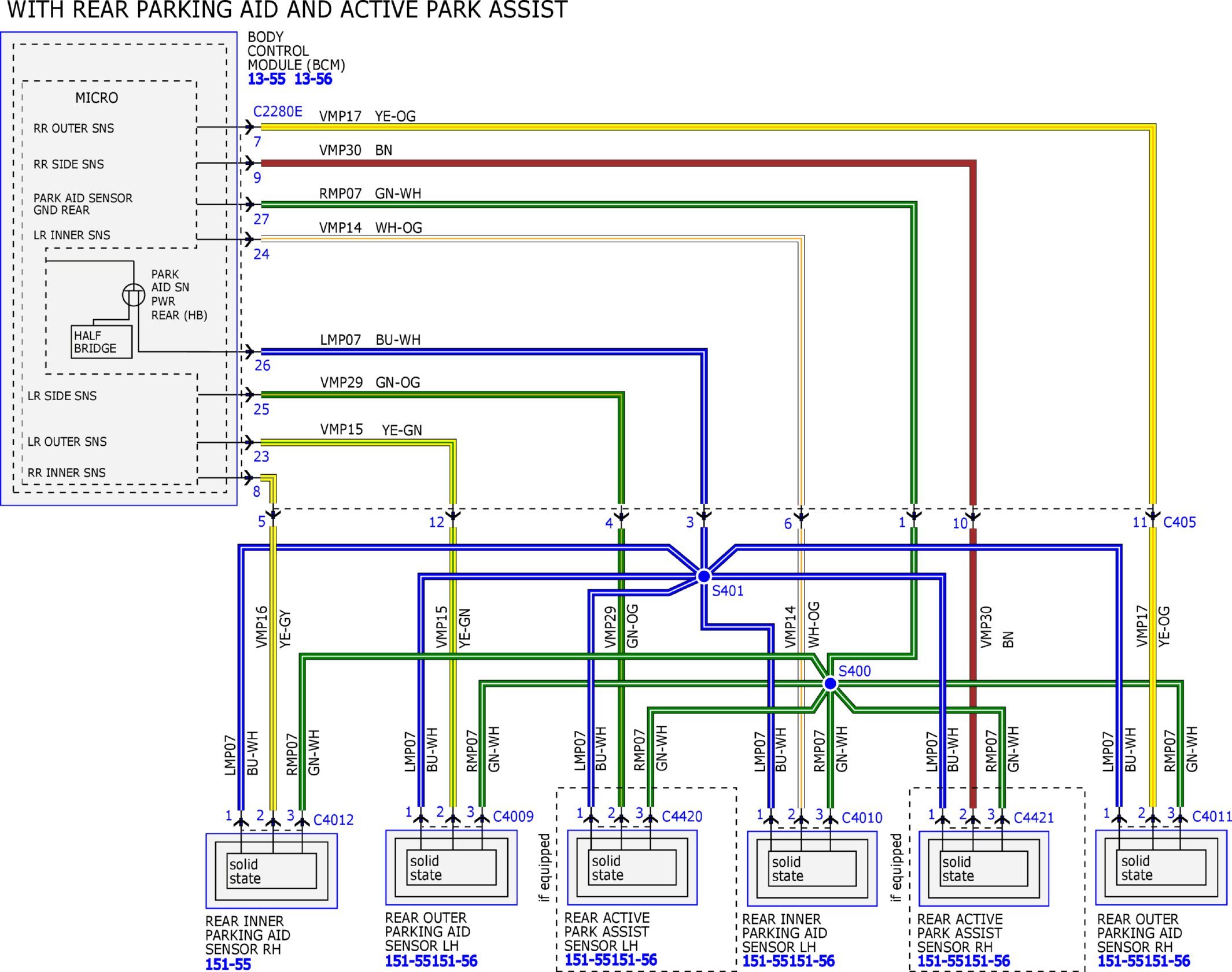

Fig 3: Parking Aid Wiring Diagram (3 Of 8)
GFDW79922Courtesy of FORD MOTOR COMPANY

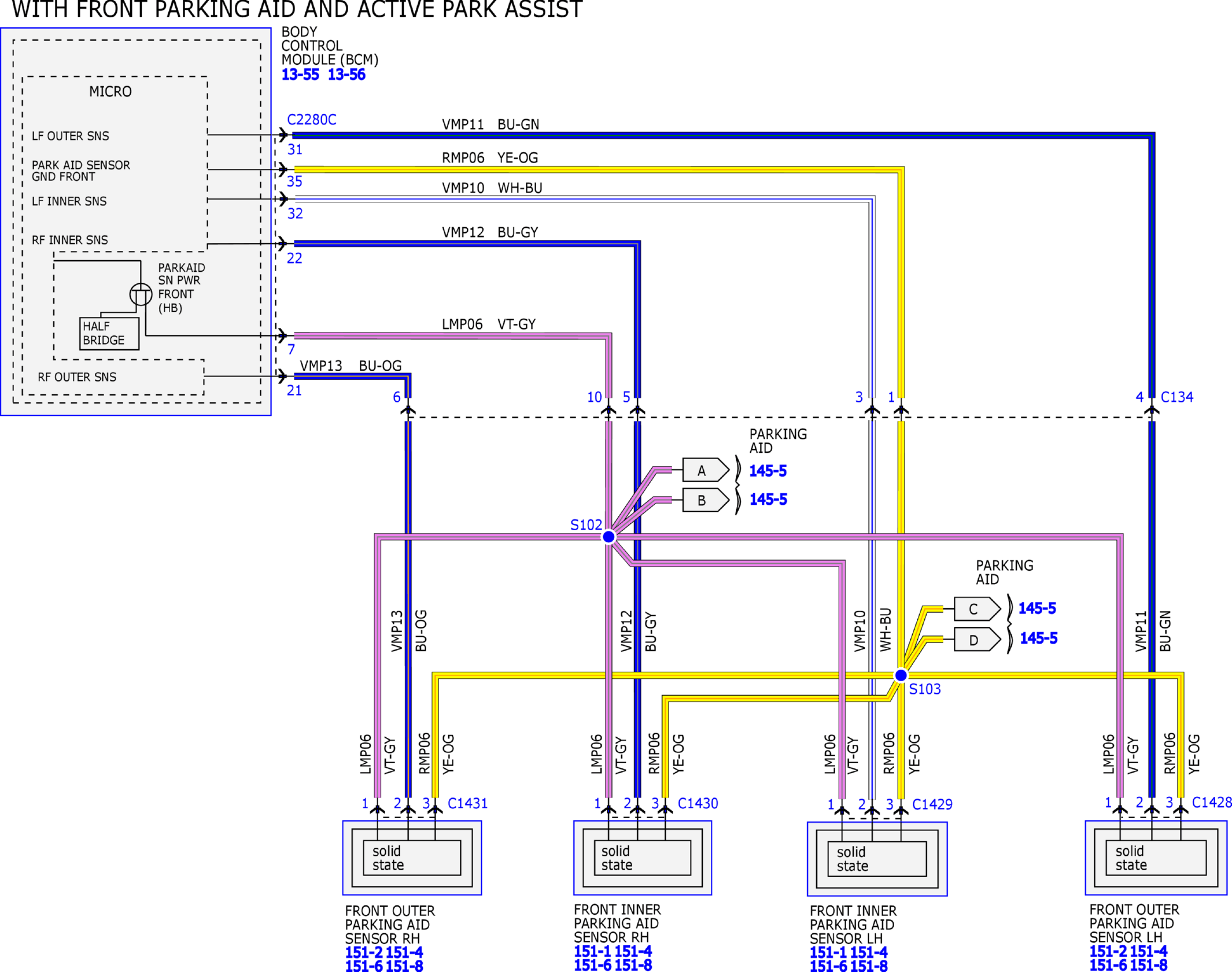

Fig 4: Parking Aid Wiring Diagram (4 Of 8)
GFDW79923Courtesy of FORD MOTOR COMPANY

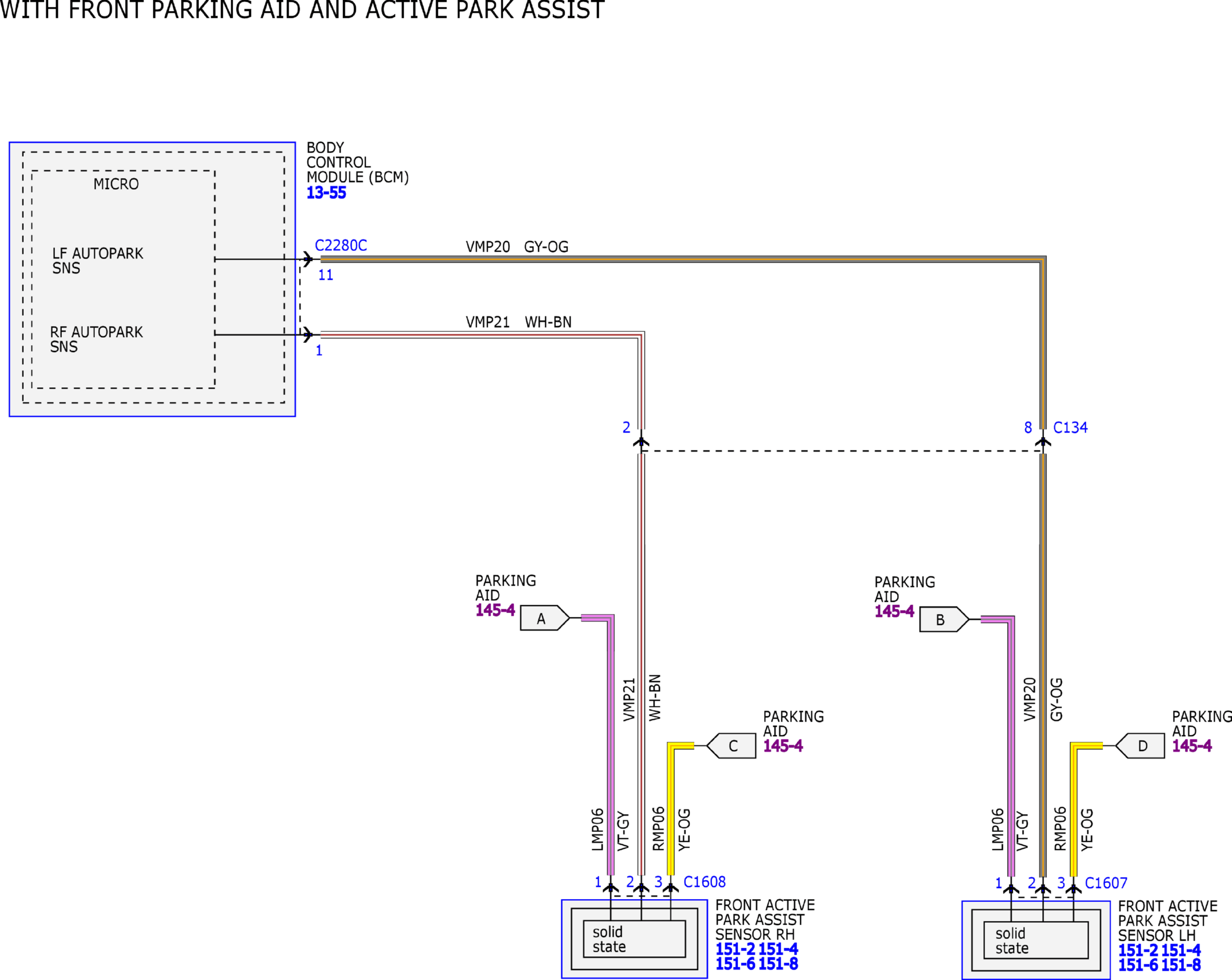

Fig 5: Parking Aid Wiring Diagram (5 Of 8)
GFDW79924Courtesy of FORD MOTOR COMPANY

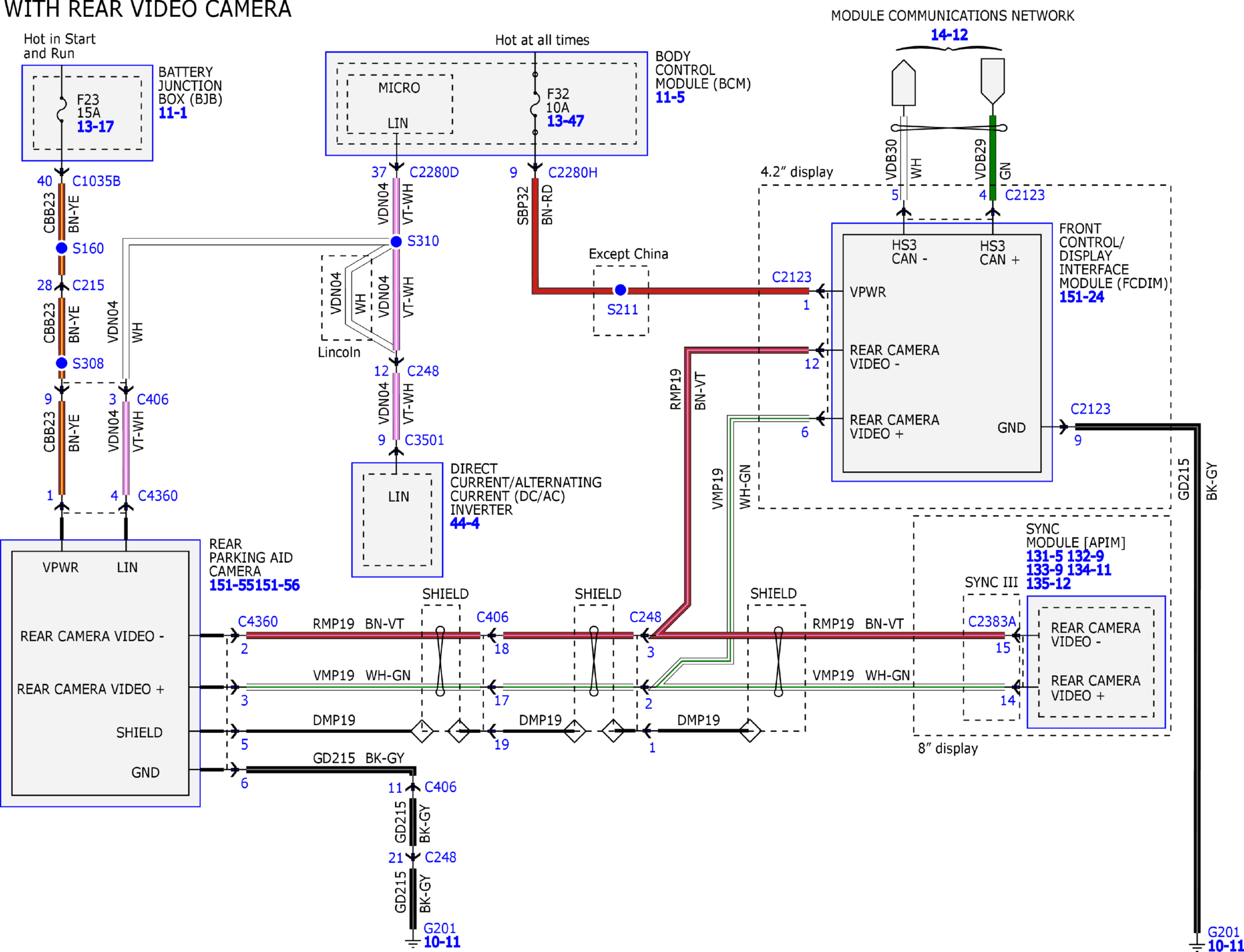

Fig 6: Parking Aid Wiring Diagram (6 Of 8)
GFDW79925Courtesy of FORD MOTOR COMPANY

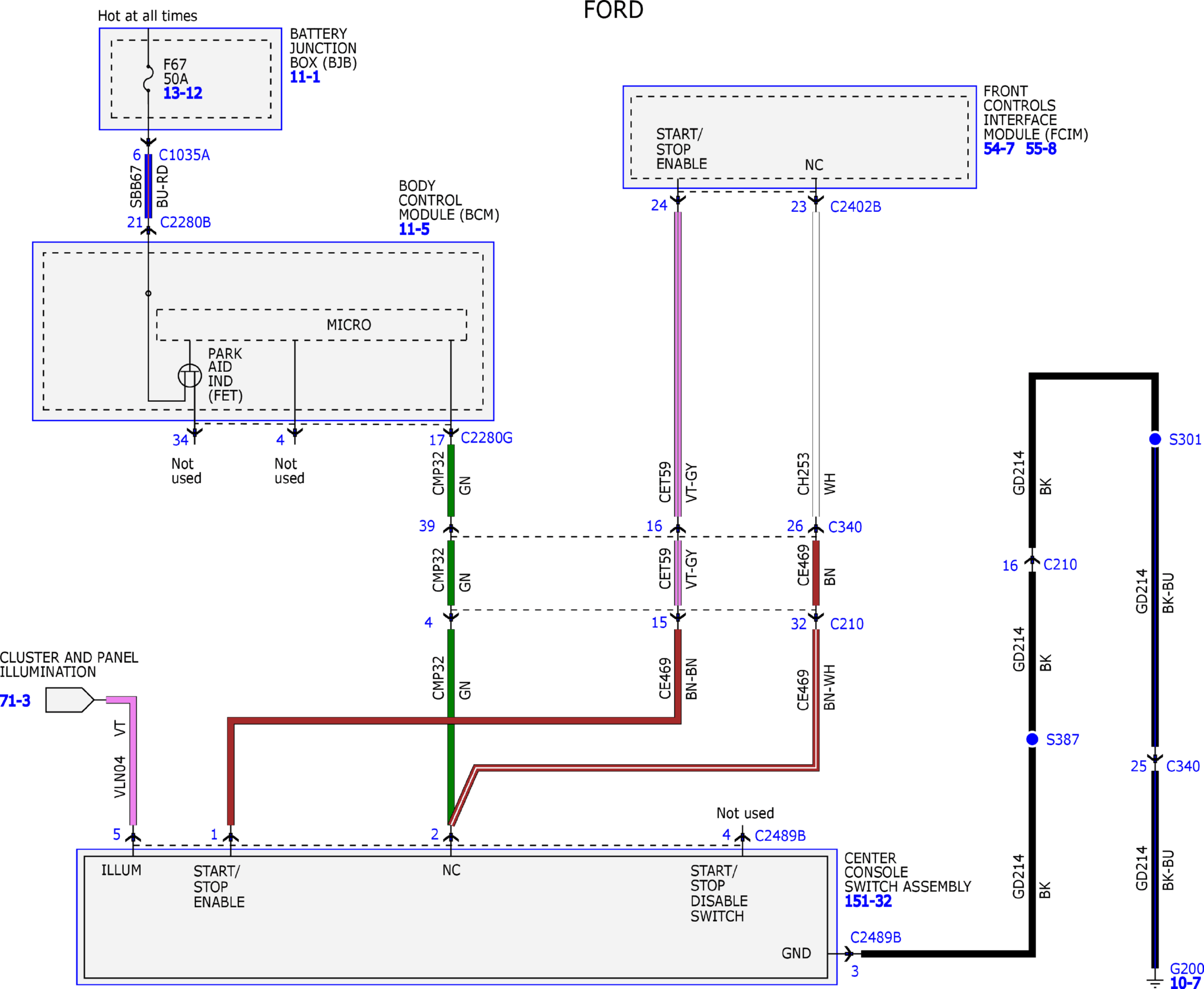

Fig 7: Parking Aid Wiring Diagram (7 Of 8)
GFDW79926Courtesy of FORD MOTOR COMPANY
Fig 8: Parking Aid Wiring Diagram (8 Of 8)
GFDW79927Courtesy of FORD MOTOR COMPANY
