Horn/Cigar Lighter

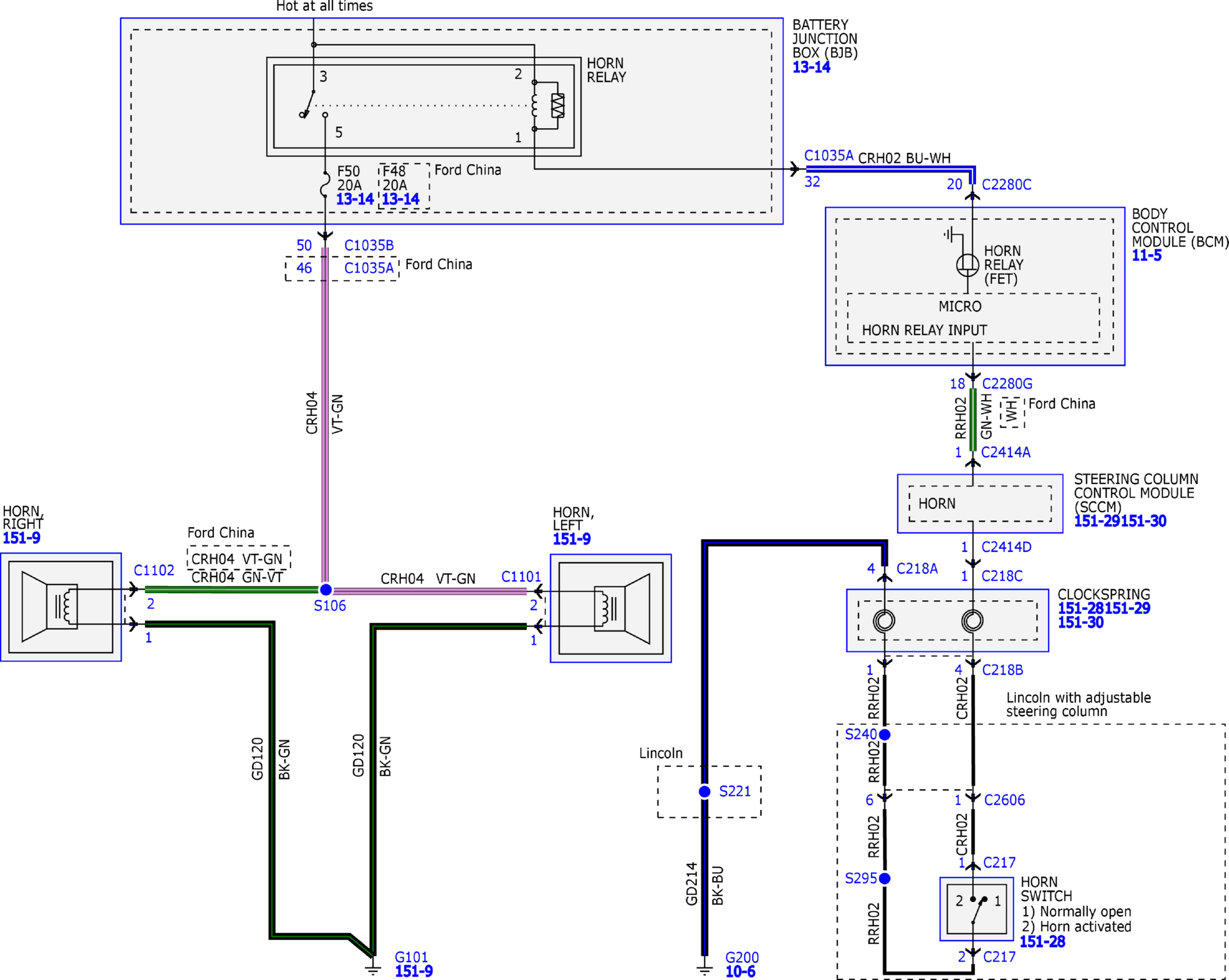

Fig 1: Horn/Cigar Lighter Wiring Diagram (1 Of 4)
GFDW79869Courtesy of FORD MOTOR COMPANY

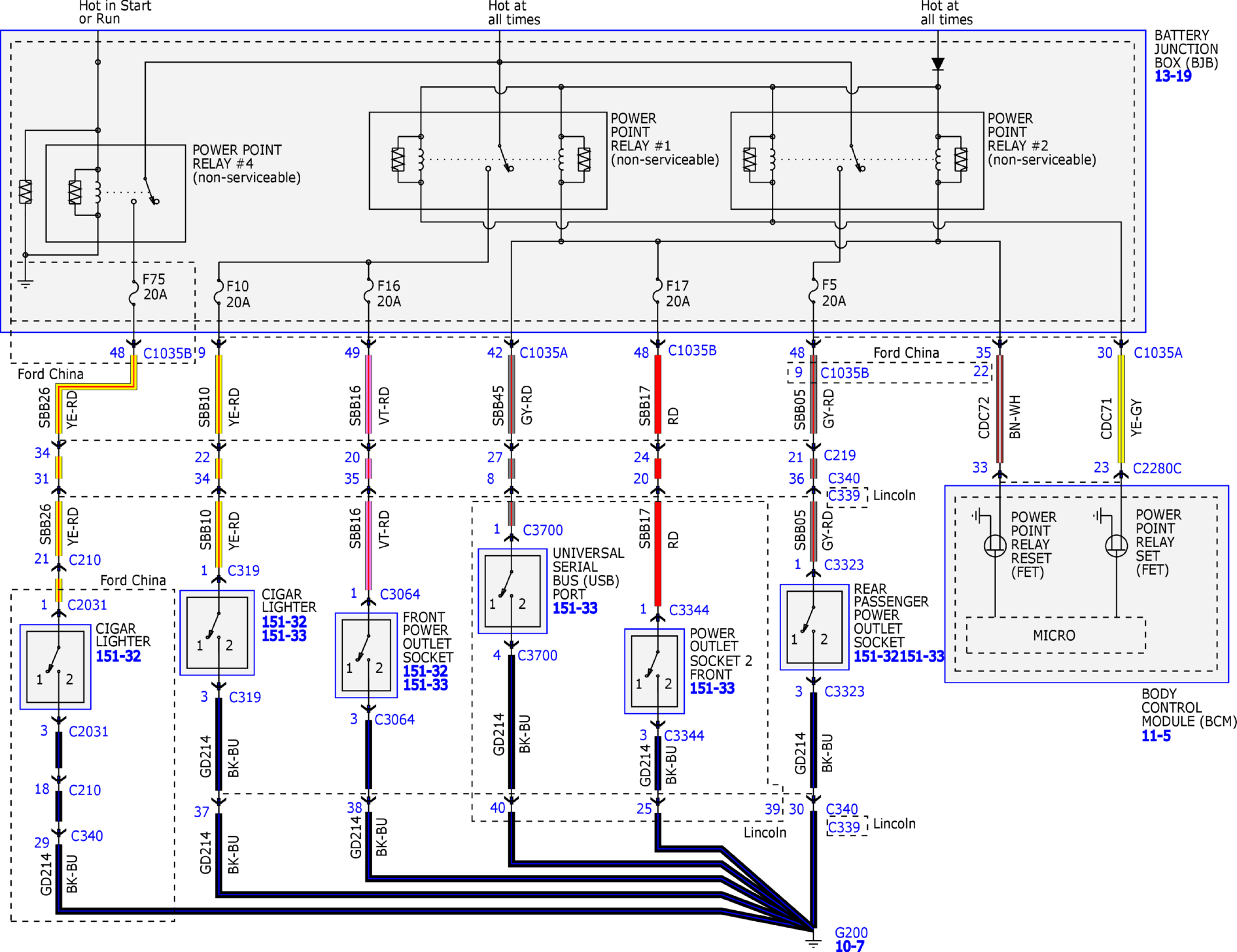

Fig 2: Horn/Cigar Lighter Wiring Diagram (2 Of 4)
GFDW79870Courtesy of FORD MOTOR COMPANY

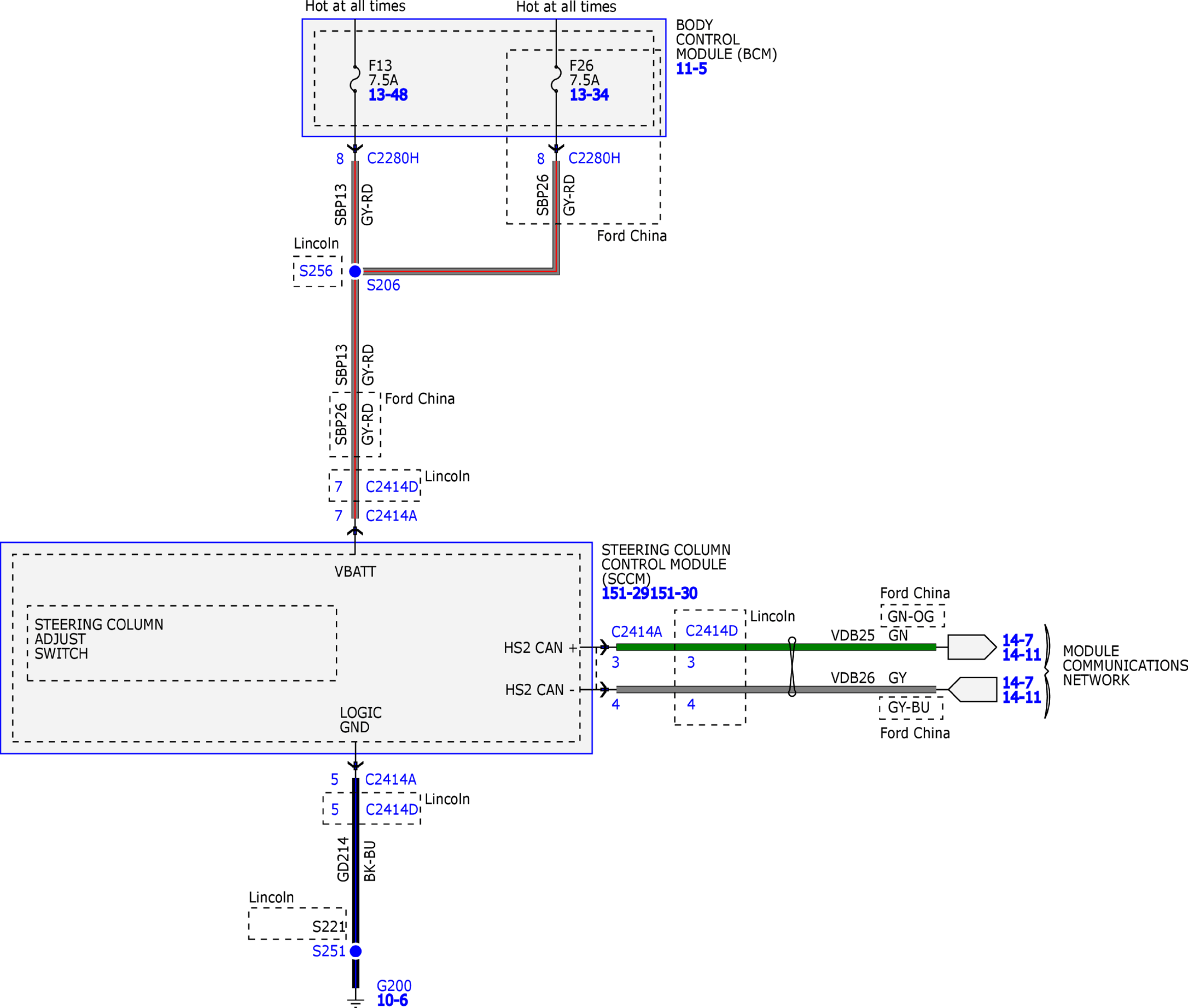

Fig 3: Horn/Cigar Lighter Wiring Diagram (3 Of 4)
GFDW79871Courtesy of FORD MOTOR COMPANY

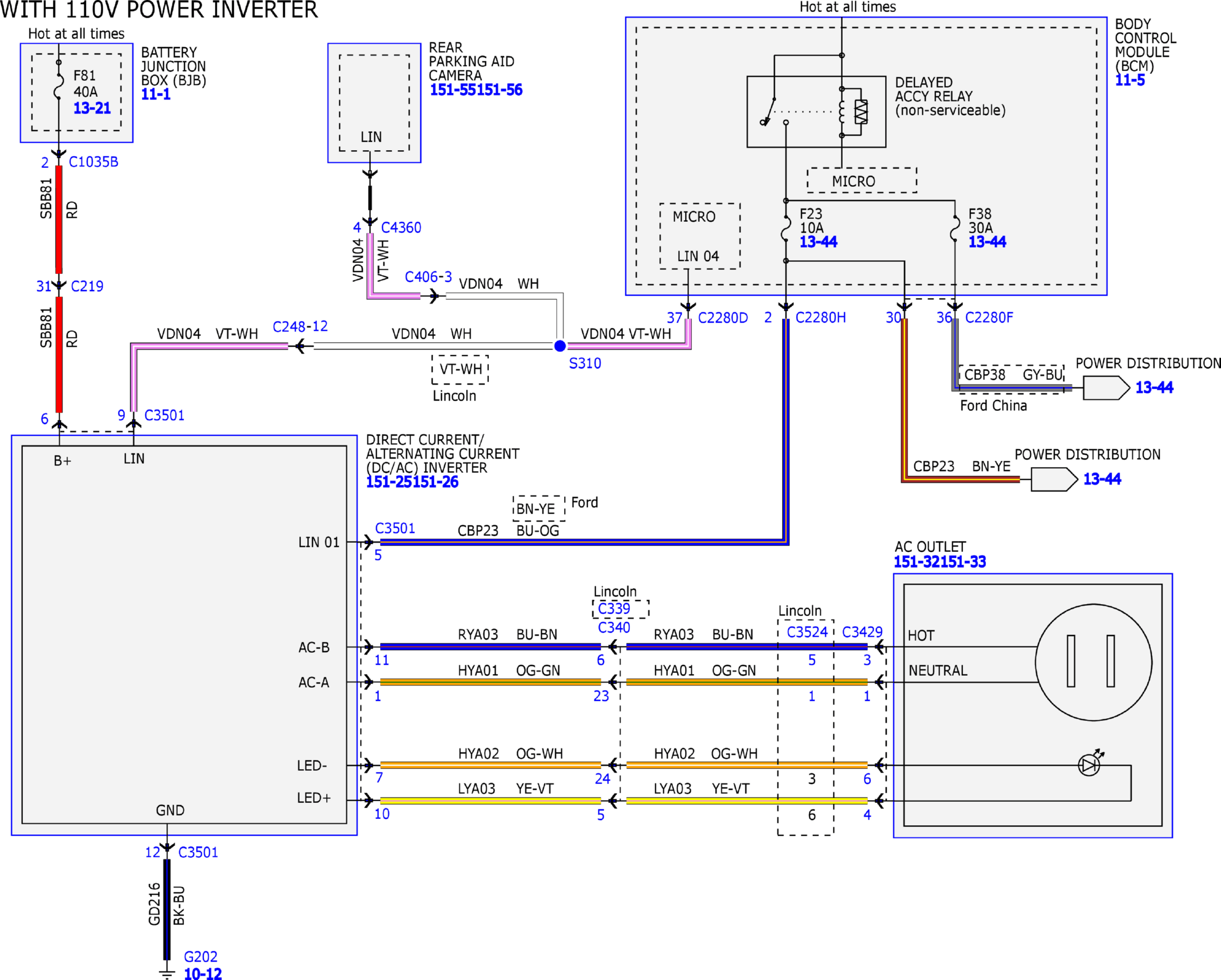

Fig 4: Horn/Cigar Lighter Wiring Diagram (4 Of 4)
GFDW79872Courtesy of FORD MOTOR COMPANY
