Cluster And Panel Illumination

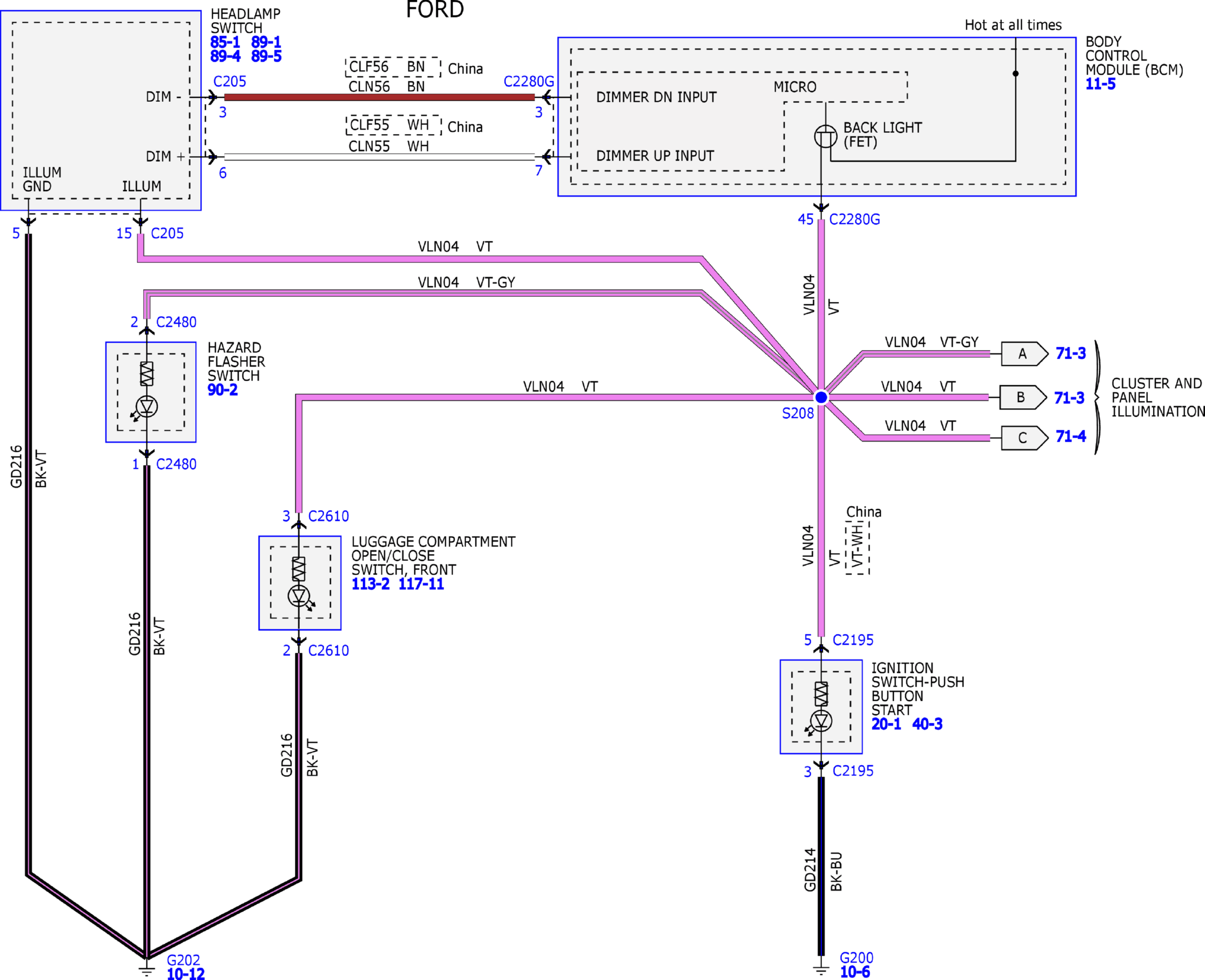

Fig 1: Cluster and Panel Illumination Wiring Diagram (1 Of 3)
GFDW79779Courtesy of FORD MOTOR COMPANY

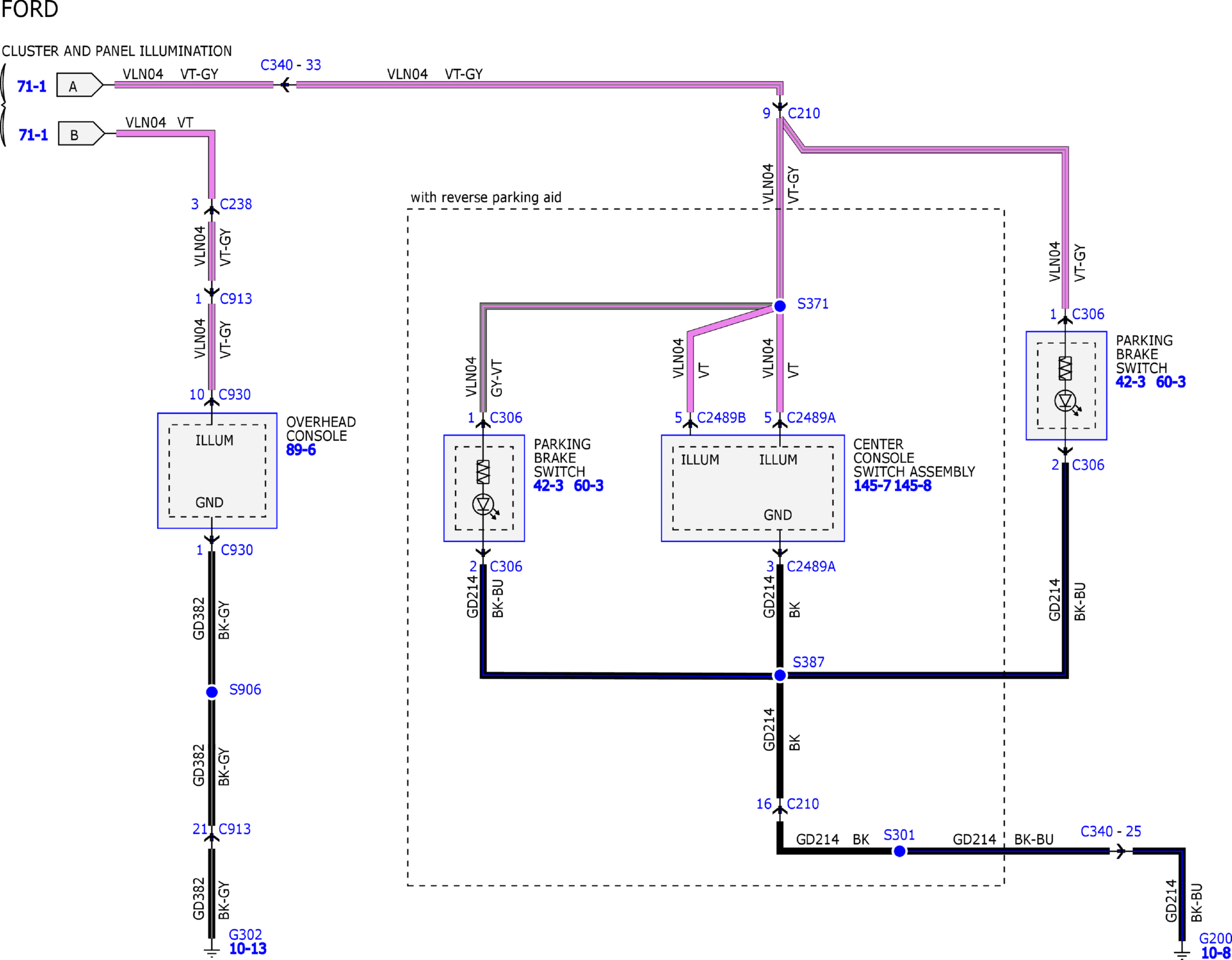

Fig 2: Cluster and Panel Illumination Wiring Diagram (2 Of 3)
GFDW79781Courtesy of FORD MOTOR COMPANY

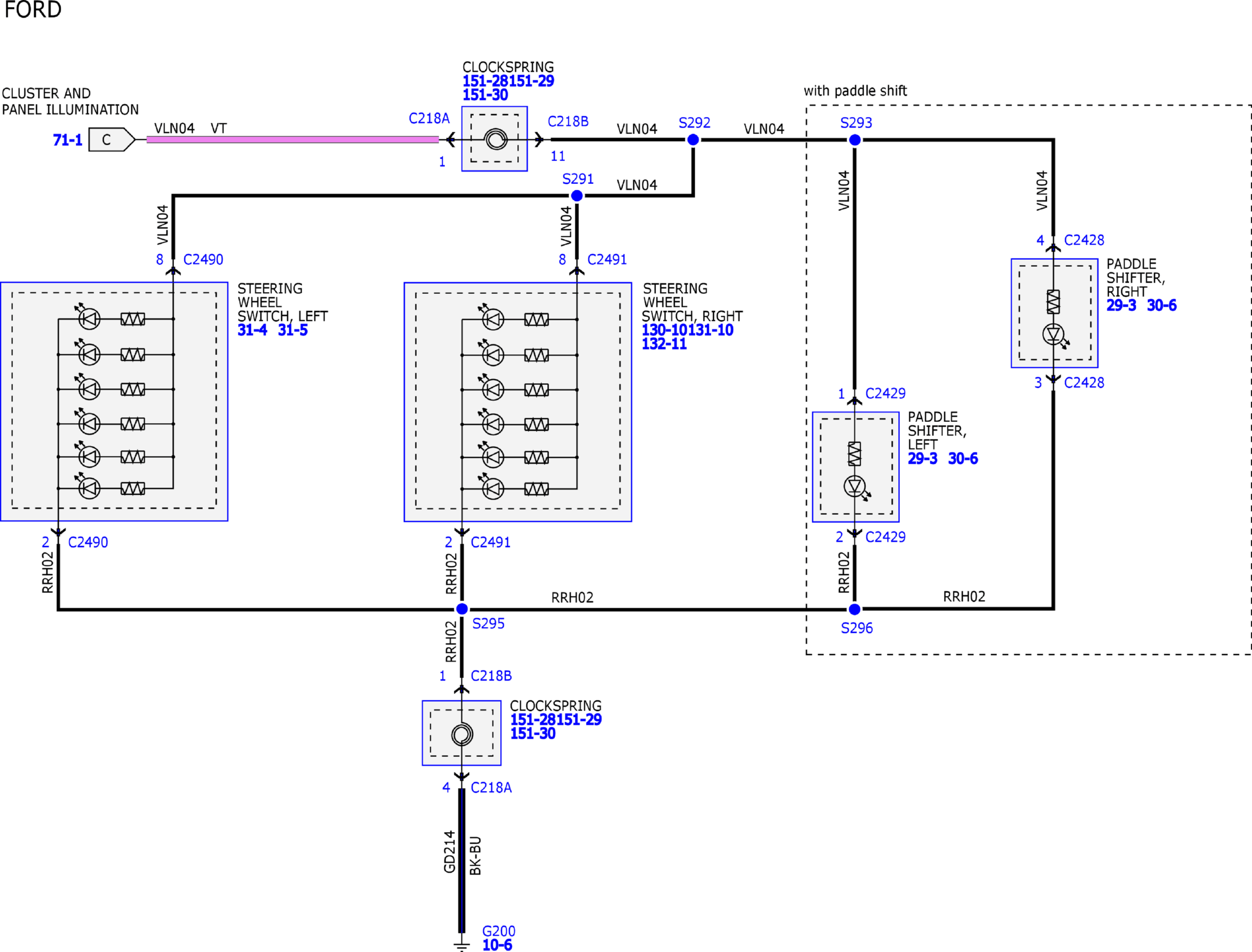

Fig 3: Cluster and Panel Illumination Wiring Diagram (3 Of 3)
GFDW79782Courtesy of FORD MOTOR COMPANY
