All Wheel Drive (AWD)

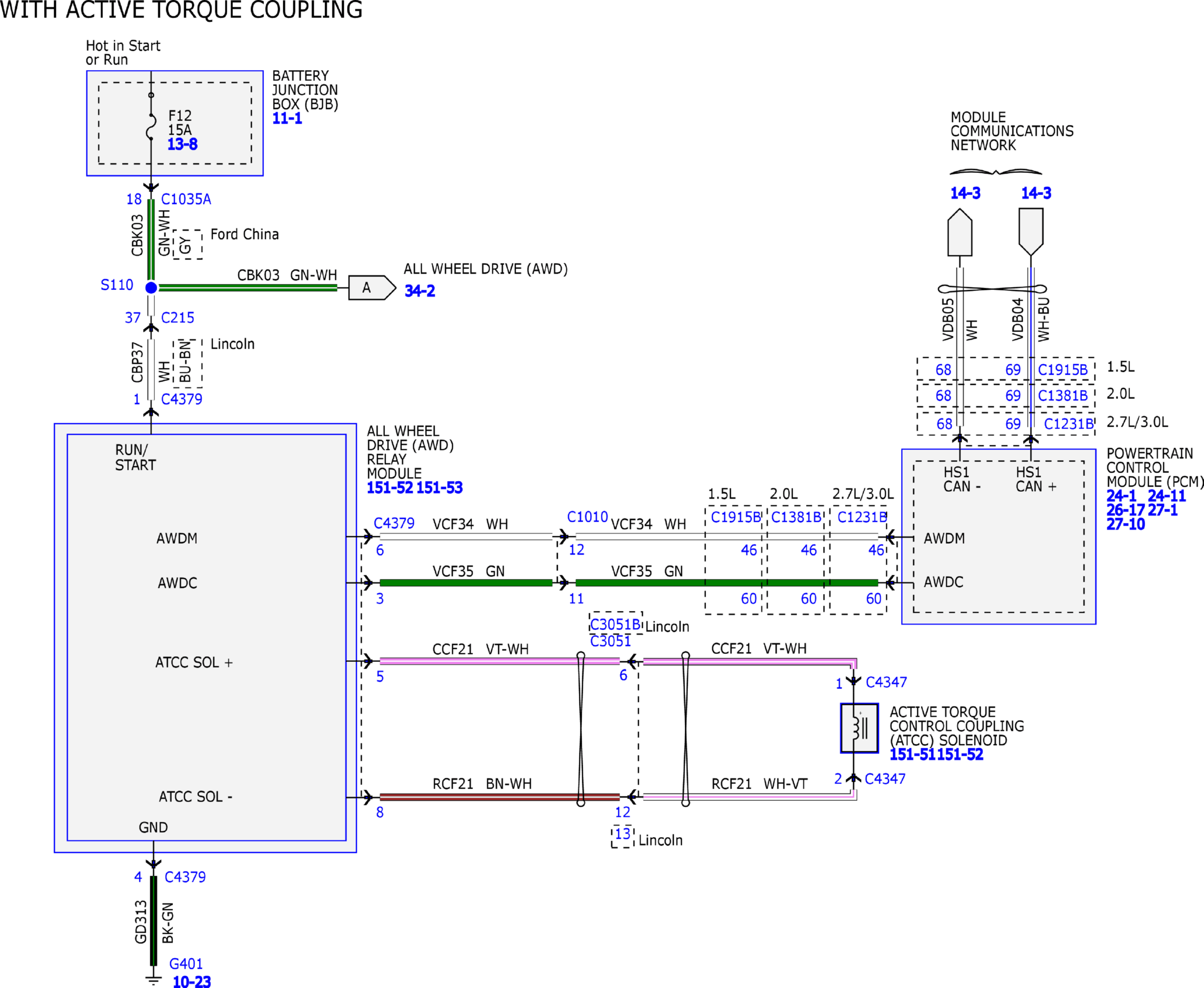

Fig 1: All Wheel Drive (AWD) Wiring Diagram (1 Of 3)
GFDW79668Courtesy of FORD MOTOR COMPANY

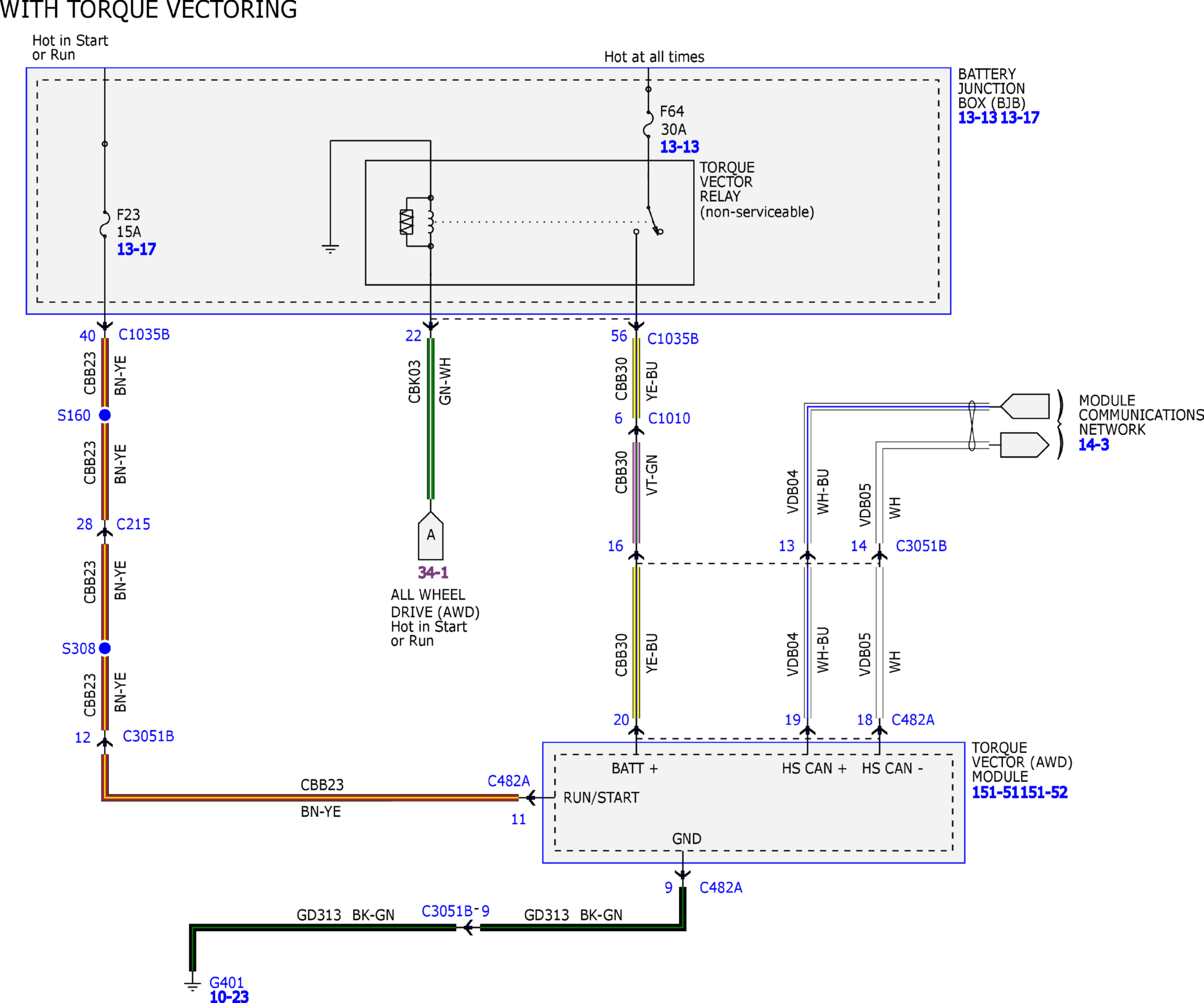

Fig 2: All Wheel Drive (AWD) Wiring Diagram (2 Of 3)
GFDW79669Courtesy of FORD MOTOR COMPANY

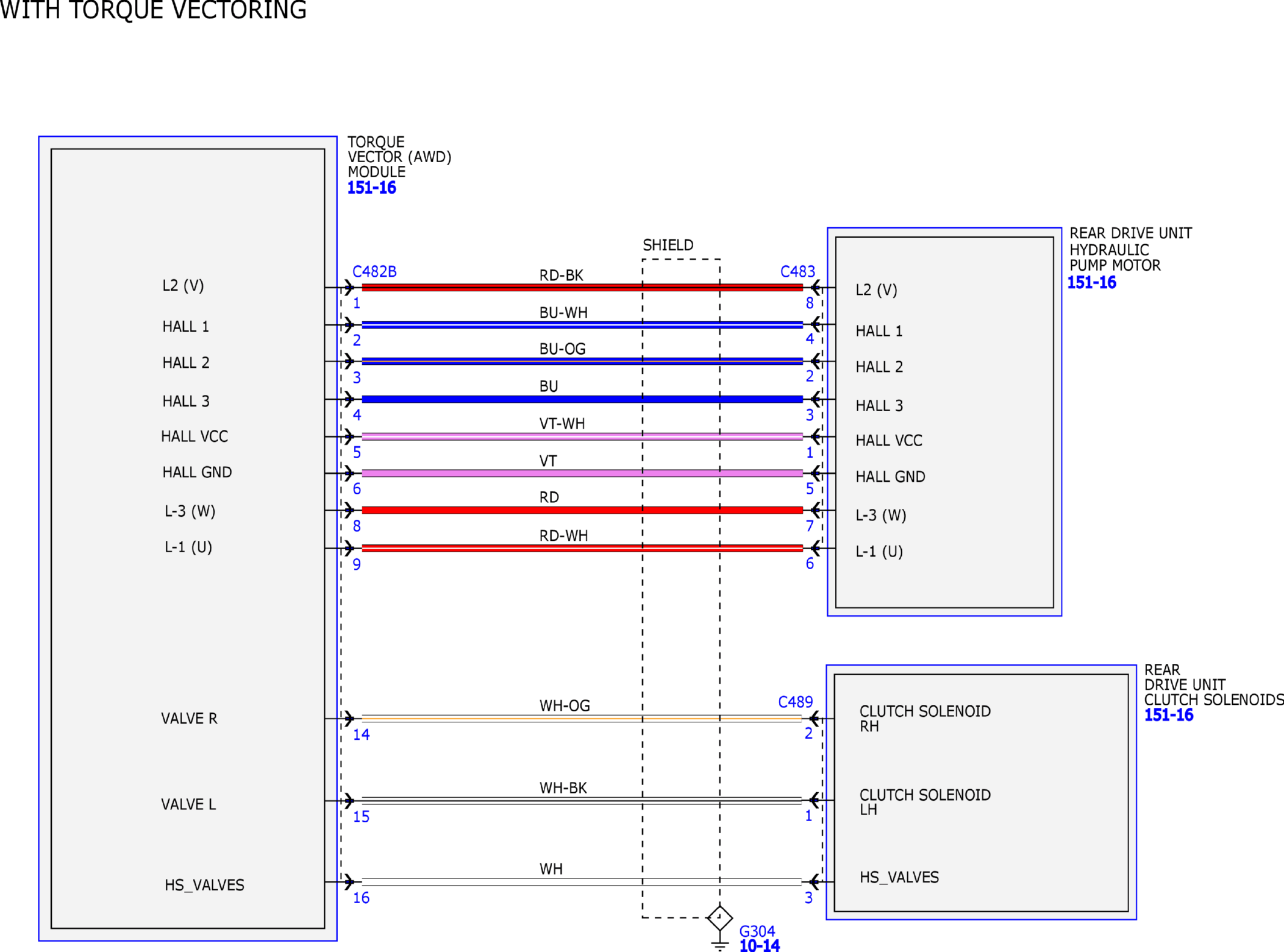

Fig 3: All Wheel Drive (AWD) Wiring Diagram (3 Of 3)
GFDW79670Courtesy of FORD MOTOR COMPANY
