Connector End View (C914) - RAIN SENSOR MODULE
Connector: C914
Description
RAIN SENSOR MODULE
Color
Harness
17C712
Base Part #
#N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CRW13 (GN) | 20 | SWITCH - REAR WIPER | |
| 2 | VDN05 (YE) | 22 | CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL MODULE 1 [OBSOLETE - REPLACED BY VX107] | Automatic windshield wiper |
| 2 | VDN05 (YE-GY) | 22 | CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL MODULE 1 [OBSOLETE - REPLACED BY VX107] | |
| 3 | GD383 (BK-WH) | 22 | GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT |
| Available Pigtail Kits | |

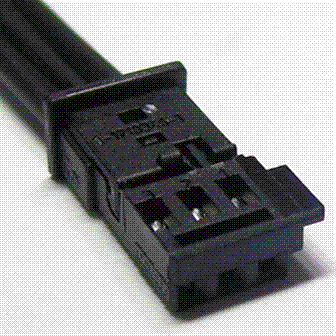

| Pigtail Kit Part Number WPT-1096 |
Service Part Number: AU2Z-14S411-ZA Gauge: 18 Pin material: Tin (greased) Cavities: 3 Vehicle Uses Sensor - Rain |
