Connector End View (C913) - INLINE
Inline: C913
Description
INLINE
Color
Base Part #
Service Pigtail
See Below

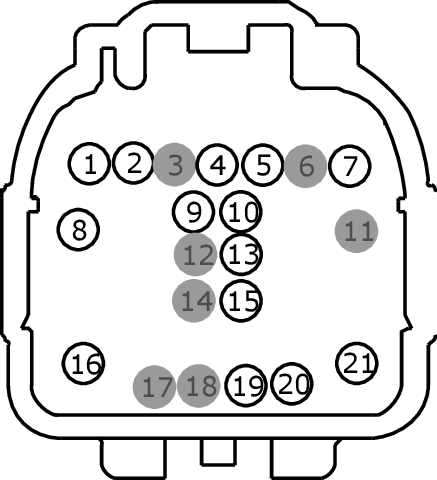

MALE
Harness 14A005

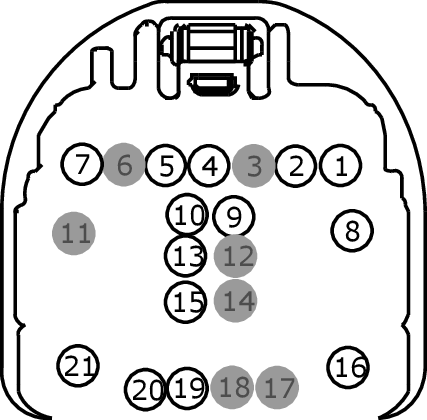

FEMALE
Harness 14335
| Pin | Circuit | Gauge | Qualifier |
| 1 | VLN04 (VT-GY) | 20 | 14A005 |
| 1 | VLN04 (VT-GY) | 22 | |
| 2 | SBP32 (VT-RD) | 20 | 14A005 |
| 2 | SBP32 (VT-RD) | 22 | 14335 |
| 3 | * | * | |
| 4 | VMM23 (BN) | 26 | 14A005 |
| 4 | VMM23 (BN-VT) | 22 | 14335 |
| 5 | RMM23 (GN) | 26 | 14A005 |
| 5 | RMM23 (WH) | 26 | 14A005 |
| 5 | RMM23 (WH-GN) | 22 | 14335 |
| 6 | * | * | |
| 7 | GD382 (BK) | 26 | 14335 |
| 7 | GD382 (BK-GY) | 22 | 14A005 |
| 8 | VLN33 (GY-VT) | 22 | |
| 9 | VPL56 (BU) | 26 | 14335 |
| 9 | VPL56 (BU-GY) | 22 | 14A005 |
| 10 | CPR31 (BN) | 26 | 14A005 |
| 10 | CPR31 (VT-BN) | 22 | 14335 |
| 10 | CPR31 (VT-WH) | 26 | 14A005 |
| 11 | * | * | 14335 |
| 11 | CPR87 (VT) | 20 | 14A005 |
| 12 | * | * | |
| 13 | CPR38 (BU) | 26 | 14A005 |
| 13 | CPR38 (WH-BU) | 22 | 14335 |
| 14 | * | * | |
| 15 | CPR40 (YE) | 26 | 14A005 |
| 15 | CPR40 (YE-OG) | 22 | 14335 |
| 16 | CLN09 (YE-GN) | 22 | |
| 17 | * | * | |
| 18 | * | * | |
| 19 | VDB06 (GY) | 26 | |
| 20 | VDB07 (VT) | 26 | |
| 21 | GD382 (BK-GY) | 22 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1425 |
Service Part Number: FU2Z-14S411-RA Gauge: 14 16 20 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
