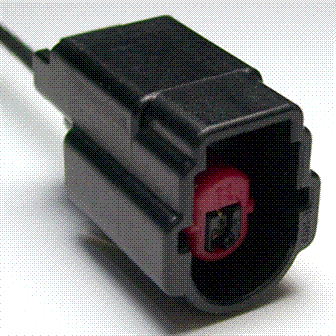

Connector End View (C1196) - IGNITION TRANSFORMER CAPACITOR

Connector: C1196

Description

IGNITION TRANSFORMER CAPACITOR

Color

Harness

12C508

Base Part #

#N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK04 (VT)	18	FUSE - 4 OR CIRCUIT BREAKER (VPWR 4)

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1253

Courtesy of FORD MOTOR COMPANY

Service Part Number:

6U2Z-14S411-KB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Capacitor - Ignition/Radio
