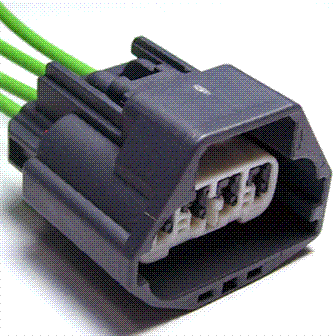

Connector End View (C1140) - MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR
Connector: C1140
Description
MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR
Color
Harness
12C508
Base Part #
#N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VE803 (BU-GN) | 20 | SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP) + | |
| 2 | LE423 (GN-VT) | 20 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1) | |
| 3 | * | * | Not Used | |
| 4 | RE405 (GN-WH) | 20 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1293 |
Service Part Number: 3U2Z-14S411-UC Gauge: 16 Pin material: Silver Cavities: 4 Vehicle Uses Control - Electronic Throttle Sensor - Fuel Rail Temperature Sensor - Fuel Tank Pressure Transducer Sensor - Manifold Absolute Pressure (MAP) Sensor - Manifold Pressure/Intake Temperature Sensor - Throttle Position |
