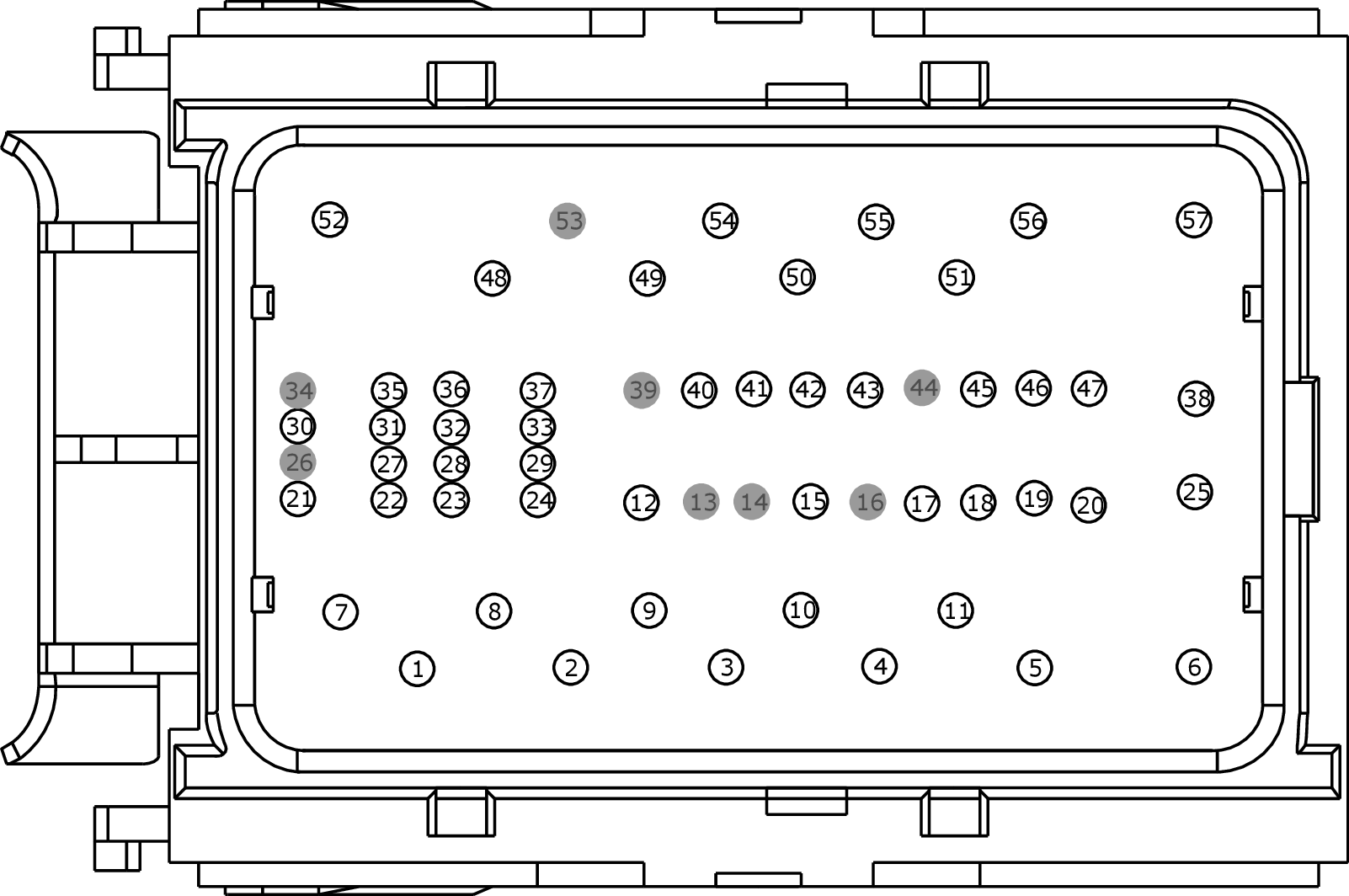

Connector End View (C1035A) - BATTERY JUNCTION BOX (BJB)
Connector: C1035A
Description
BATTERY JUNCTION BOX (BJB)
Color
Harness
12A581
Base Part #
#N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CRW03 (VT-WH) | 14 | RELAY - FRONT WIPER | Ford China |
| 1 | SBB83 (GN-RD) | 14 | FUSE - 83 OR CIRCUIT BREAKER | |
| 2 | CDC25 (BN-GN) | 12 | RELAY - STARTER | |
| 2 | CRW25 (BU-GY) | 14 | RELAY - FRONT WIPER PARK | Ford China |
| 3 | CH402 (YE-GN) | 10 | RELAY - FRONT BLOWER | Ford China |
| 4 | CRD06 (BN-YE) | 10 | RELAY - HEATER REAR WINDOW | Ford China |
| 5 | CEC05 (VT-GY) | 12 | RELAY - ENGINE COOLING FAN | Ford China |
| 5 | GD120 (BK-GN) | 10 | GROUND - FENDER FRONT LEFT | |
| 6 | SBB67 (BU-RD) | 10 | FUSE - 67 OR CIRCUIT BREAKER | |
| 7 | GD120 (BK-GN) | 16 | GROUND - FENDER FRONT LEFT | |
| 8 | SBB01 (VT-RD) | 10 | FUSE - 1 OR CIRCUIT BREAKER | |
| 9 | SBB10 (YE-RD) | 16 | FUSE - 10 OR CIRCUIT BREAKER | |
| 10 | CBB07 (GN-BU) | 14 | FUSE - 7 OR CIRCUIT BREAKER | |
| 11 | CBK02 (GN) | 18 | FUSE - 2 OR CIRCUIT BREAKER (VPWR 2) | Ford China |
| 11 | CBK02 (GN) | 16 | FUSE - 2 OR CIRCUIT BREAKER (VPWR 2) | |
| 12 | CH401 (VT-WH) | 20 | RELAY - A/C CLUTCH | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | SBB47 (WH-RD) | 20 | FUSE - 47 OR CIRCUIT BREAKER | |
| 16 | * | * | Not Used | |
| 17 | CBK04 (VT) | 14 | FUSE - 4 OR CIRCUIT BREAKER (VPWR 4) | |
| 18 | CBK03 (GY) | 16 | FUSE - 3 OR CIRCUIT BREAKER | Ford China |
| 18 | CBK03 (GN-WH) | 16 | FUSE - 12 OR CIRCUIT BREAKER | |
| 19 | CBB19 (BN-WH) | 14 | FUSE - 19 OR CIRCUIT BREAKER | |
| 20 | CBB26 (BU-WH) | 20 | FUSE - 26 OR CIRCUIT BREAKER | |
| 21 | CDC54 (WH-GN) | 20 | CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) | |
| 22 | CDC54 (WH-GN) | 20 | CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) | |
| 22 | CDC72 (BN-WH) | 20 | CTRL MOD. - POWER OUTLET DISABLE OR RESET | Ford China |
| 23 | CE237 (BN-WH) | 20 | CTRL MOD. - POWERTRAIN # HOLD PCM RELAY (PCM) | |
| 23 | CE302 (YE-BU) | 20 | CTRL MOD. - POWERTRAIN # POWERTRAIN CONTROL RELAY (PCMRC) | |
| 23 | CH123 (VT-GN) | 20 | CTRL MOD. - BLOWER MOTOR RELAY | Ford China |
| 24 | CEC02 (GN-BU) | 20 | CTRL MOD. - COOLING FAN CONTROL (FC1) | |
| 25 | CEC05 (VT-GY) | 10 | RELAY - ENGINE COOLING FAN | |
| 25 | CEC07 (BN) | 10 | RELAY - ENGINE COOLING FAN HIGH SPEED | Ford China |
| 26 | * | * | Not Used | |
| 27 | CDC12 (YE) | 20 | CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) | |
| 28 | CDC55 (BN-VT) | 20 | RELAY - RUN START | |
| 29 | CEC01 (WH-BU) | 20 | CTRL MOD. - COOLING FAN CONTROL (FC2) | |
| 30 | CDC71 (YE-GY) | 20 | CTRL MOD. - POWER OUTLET ENABLE OR SET | |
| 31 | CH123 (VT-GN) | 20 | CTRL MOD. - BLOWER MOTOR RELAY | |
| 32 | CRH02 (BU-WH) | 20 | SWITCH - HORN | |
| 32 | CRH02 (BU-WH) | 22 | SWITCH - HORN | Ford China |
| 33 | CRD02 (BN-BU) | 20 | CTRL MOD. - RELAY HEATER REAR WINDOW | |
| 34 | * | * | Not Used | |
| 35 | CDC40 (VT-GY) | 20 | RELAY - DELAY ACCESSORY | Ford China |
| 35 | CDC72 (BN-WH) | 20 | CTRL MOD. - POWER OUTLET DISABLE OR RESET | |
| 36 | CE237 (BN-WH) | 20 | CTRL MOD. - POWERTRAIN # HOLD PCM RELAY (PCM) | Ford China |
| 36 | CRD02 (BN-BU) | 20 | CTRL MOD. - RELAY HEATER REAR WINDOW | |
| 37 | CH302 (WH-BN) | 20 | CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR) | Ford China |
| 37 | CH302 (WH-BU) | 20 | CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR) | |
| 38 | CEC07 (BN) | 10 | RELAY - ENGINE COOLING FAN HIGH SPEED | |
| 38 | GD120 (BK-GN) | 12 | GROUND - FENDER FRONT LEFT | Ford China |
| 39 | * | * | Not Used | |
| 40 | SBB47 (WH-RD) | 20 | FUSE - 47 OR CIRCUIT BREAKER | |
| 41 | SBB46 (BN-RD) | 14 | FUSE - 46 OR CIRCUIT BREAKER | |
| 42 | SBB18 (YE-RD) | 16 | FUSE - 18 OR CIRCUIT BREAKER | Ford China |
| 42 | SBB45 (GY-RD) | 18 | FUSE - 45 OR CIRCUIT BREAKER | |
| 43 | CBB20 (YE-VT) | 20 | FUSE - 20 OR CIRCUIT BREAKER | |
| 44 | * | * | Not Used | |
| 45 | CH401 (VT-WH) | 20 | RELAY - A/C CLUTCH | |
| 46 | CBB20 (YE-VT) | 20 | FUSE - 20 OR CIRCUIT BREAKER | |
| 46 | CRH04 (VT-GN) | 18 | CTRL MOD. - RELAY HORN | Ford China |
| 47 | CBB19 (BN-WH) | 14 | FUSE - 19 OR CIRCUIT BREAKER | |
| 47 | CBB25 (WH-OG) | 18 | FUSE - 25 OR CIRCUIT BREAKER | Ford China |
| 48 | SBB05 (GY-RD) | 16 | FUSE - 5 OR CIRCUIT BREAKER | |
| 49 | SBB16 (VT-RD) | 16 | FUSE - 16 OR CIRCUIT BREAKER | |
| 50 | CLF61 (GY-BU) | 20 | CTRL MOD. - DAYTIME RUNNING LIGHT LEFT | |
| 51 | CEC06 (YE-OG) | 10 | RELAY - ENGINE COOLING FAN 2ND | |
| 51 | CEC06 (YE-OG) | 12 | RELAY - ENGINE COOLING FAN 2ND | Ford China |
| 51 | GD126 (YE-OG) | 10 | GROUND - FLOOR CROSS MEMBER REAR LEFT (OBSOLETE) | |
| 52 | SBB82 (YE-RD) | 10 | FUSE - 82 OR CIRCUIT BREAKER | |
| 53 | * | * | Not Used | |
| 54 | SBB74 (YE-RD) | 10 | FUSE - 74 OR CIRCUIT BREAKER | Ford China |
| 54 | SBB74 (YE-RD) | 12 | FUSE - 74 OR CIRCUIT BREAKER | |
| 55 | SBB70 (BN-RD) | 12 | FUSE - 70 OR CIRCUIT BREAKER | |
| 56 | SBB69 (GY-RD) | 12 | FUSE - 69 OR CIRCUIT BREAKER | |
| 56 | SBB69 (GY-RD) | 14 | FUSE - 69 OR CIRCUIT BREAKER | Ford China |
| 57 | SBB62 (BN-RD) | 10 | FUSE - 62 OR CIRCUIT BREAKER |
