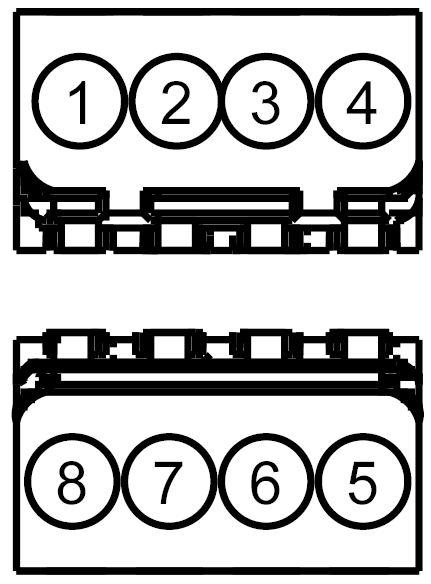

Connector End View (C9229) - SPLICE BLOCK 14
Connector: C9228
Description
SPLICE BLOCK 14
Color
Harness
17C712
Base Part #
#N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CLN09 (YE-GN) | 22 | CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR REAR DRIVER | |
| 2 | CLN09 (YE-GN) | 22 | CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR REAR DRIVER | |
| 3 | GD383 (BK-WH) | 22 | GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT | |
| 4 | GD383 (BK-WH) | 22 | GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT | |
| 5 | CLN09 (YE-GN) | 22 | CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR REAR DRIVER | |
| 6 | CLN09 (YE-GN) | 22 | CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR REAR DRIVER | |
| 7 | GD383 (BK-WH) | 22 | GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT | |
| 8 | GD383 (BK-WH) | 22 | GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT |
