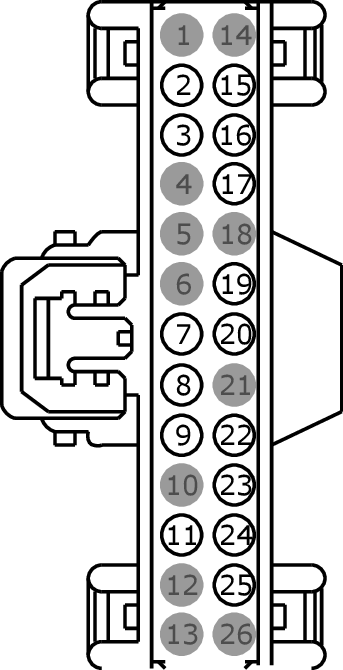

Connector End View (C4174B) - REAR GATE TRUNK MODULE (RGTM)
Connector: C4174B
Description
REAR GATE TRUNK MODULE (RGTM)
Color
Harness
14A005
Base Part #
#N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | CPL44 (YE-OG) | 22 | SWITCH - LIFTGATE/DECKLID/CARGO # AJAR | |
| 3 | CPR63 (GY-YE) | 22 | SWITCH - POWER LIFTGATE/DECKLID # OPEN/CLOSE | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | VPR53 (BU-WH) | 22 | SENSOR - POWER LIFTGATE DRIVE UNIT 1 # HALL 1 (OPEN IF LEAD) | |
| 8 | VPR54 (BU-BN) | 22 | SENSOR - POWER LIFTGATE DRIVE UNIT 1 # HALL 2 (CLOSE IF LEAD) | |
| 9 | RPR56 (GY-VT) | 22 | CTRL MOD. - POWER LIFTGATE # CHIME - | |
| 10 | * | * | Not Used | |
| 11 | CPR89 (BN-BU) | 22 | SWITCH - POWER LIFTGATE/DECKLID # OPEN/CLOSE #2 (REAR) | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | CPL81 (BN-VT) | 22 | CTRL MOD. - DOOR LOCK # LIFTGATE/DECKLID/CARGO AJAR | |
| 16 | CPR72 (GN-BU) | 22 | CTRL MOD. - POWER LIFTGATE # MOTOR STRIKER (-) | |
| 17 | CPR65 (BU-GN) | 22 | LATCH - LIFTGATE # LATCH SWITCH FULL | |
| 18 | * | * | Not Used | |
| 19 | CPR55 (GN-BU) | 22 | CTRL MOD. - POWER LIFTGATE DRIVE UNIT 1 # SENSOR POWER | |
| 20 | RPR55 (WH-BU) | 22 | CTRL MOD. - POWER LIFTGATE DRIVE UNIT 1 # SENSOR RETURN | |
| 21 | * | * | Not Used | |
| 22 | CPR56 (VT-BN) | 22 | CTRL MOD. - POWER LIFTGATE # CHIME + | |
| 23 | VDB07 (VT) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 24 | VDB06 (GY) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 25 | CPL60 (BN-YE) | 22 | SWITCH - LIFTGATE GLASS RELEASE | |
| 26 | * | * | Not Used |
