Connector End View (C3817) - LUMBAR MOTOR ASSEMBLY, DRIVER SEAT
Connector: C3817
Description
LUMBAR MOTOR ASSEMBLY, DRIVER SEAT
Color
Harness
14D232
Base Part #
#N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPS19 (GY-VT) | 20 | SWITCH - DRIVER LUMBAR SOLENOID (UPPER CELL) DEFLATE | |
| 2 | CPS18 (BN-GN) | 20 | SWITCH - DRIVER LUMBAR PUMP | |
| 3 | GD904 (BK-BU) | 20 | GROUND - DRIVER SEAT # SEAT SWITCH | |
| 4 | CPS64 (BN-VT) | 20 | SWITCH - DRIVER LUMBAR SOLENOID LOWER CELL DEFLATE | |
| 5 | CPS65 (WH-GN) | 20 | SWITCH - DRIVER LUMBAR SOLENOID LOWER CELL INFLATE | |
| 6 | * | * | Not Used |

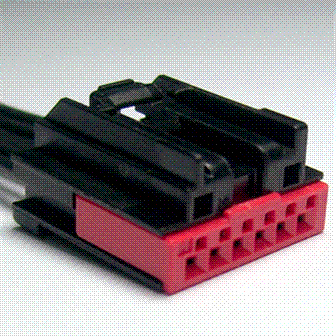

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1471 |
Service Part Number: GU2Z-14S411-PA Gauge: 20 Pin material: Tin Cavities: 6 Vehicle Uses Sensor - EATC In Car Temperature Switch - Seat Lumbar Transceiver - Passive Anti-Theft (PATS) |
