Connector End View (C3512A) - USB HUB
Connector: C3512A
Description
USB HUB
Color
Harness
14B079
Base Part #
#N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | LME89 (YE-BU) | 22 | CTRL MOD. - MEDIA CONNECTIVITY POWER | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | RME89 (WH-BU) | 22 | CTRL MOD. - MEDIA CONNECTIVITY GROUND |

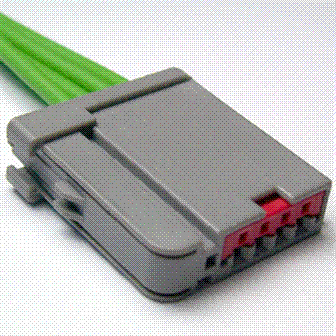

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1239 |
Service Part Number: CU2Z-14S411-AA Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses Sensor - Compass |
