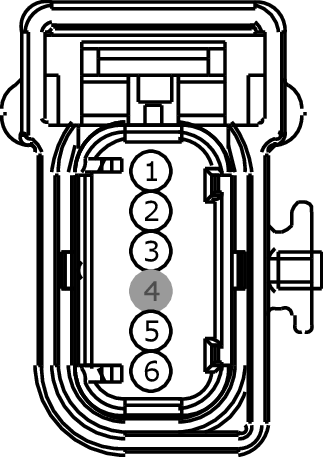

Connector End View (C3201) - SAFETY BELT BUCKLE DRIVER
Connector: C3201
Description
SAFETY BELT BUCKLE DRIVER
Color
Harness
14D231
Base Part #
#N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VR210 (BU-BN) | 20 | SENSOR - SEAT BELT TENSION FRONT PASSENGER OUTBOARD | |
| 2 | LR142 (YE-BU) | 20 | CTRL MOD. - SENSOR SEAT BELT TENSION FRONT PASSENGER OUTBOARD + | |
| 3 | GD901 (BK) | 20 | GROUND - PASSENGER SEAT # RESTRAINTS CLEAN | |
| 4 | * | * | Not Used | |
| 5 | CR201 (GN-BU) | 20 | SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT DRIVER SIDE | |
| 6 | GD901 (BK) | 20 | GROUND - PASSENGER SEAT # RESTRAINTS CLEAN |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1329 |
Service Part Number: DU2Z-14S411-EA Gauge: 20 Pin material: Tin Cavities: 6 Vehicle Uses Antenna - Keyless Entry Handle - Decklid Switch - Keyless Entry Switch - Seatbelt |
