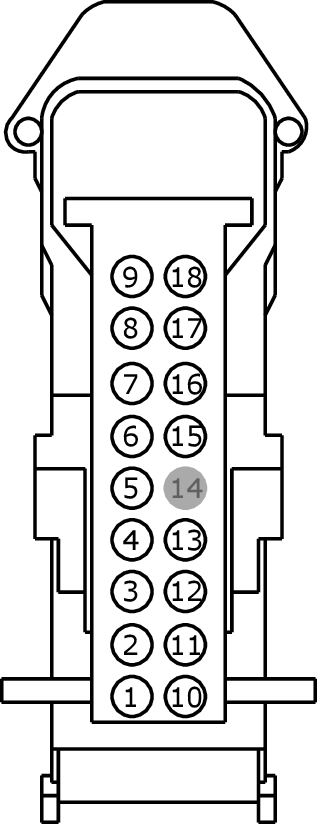

Connector End View (C2503) - GEAR SHIFT MODULE (GSM)
Connector: C2503
Description
GEAR SHIFT MODULE (GSM)
Color
Harness
14401
Base Part #
#N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | SBP12 (GN-RD) | 22 | FUSE - 12 OR CIRCUIT BREAKER | |
| 2 | VDB26 (GY-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW | |
| 3 | VDB25 (GN-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH | |
| 4 | CPL30 (BU-BN) | 22 | SWITCH - LATCH DRIVER OR LEFT FRONT # UNLOCK | Lincoln |
| 4 | CPL30 (BN-BU) | 18 | SWITCH - LATCH DRIVER OR LEFT FRONT # UNLOCK | |
| 5 | CPK35 (YE) | 22 | CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 + | |
| 6 | CPK36 (VT) | 22 | CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED | |
| 7 | CPK34 (BN-VT) | 22 | CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 + | |
| 8 | CET83 (BU-OG) | 20 | SWITCH - SHIFT-BY-WIRE OVERRIDE 2 (OVERRIDE_SW_2) | Lincoln |
| 8 | CET83 (BU-OG) | 22 | SWITCH - SHIFT-BY-WIRE OVERRIDE 2 (OVERRIDE_SW_2) | |
| 9 | GD383 (BK-WH) | 20 | GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT | |
| 10 | VET77 (GY-YE) | 18 | ACTUATOR - GEAR SHIFT # PWM OUT 2 (PWM2) | |
| 11 | VET76 (OG-GN) | 18 | CTRL MOD. - GEAR SHIFT # PWM OUT 1 (PWM1) | |
| 11 | VET76 (GN-OG) | 18 | CTRL MOD. - GEAR SHIFT # PWM OUT 1 (PWM1) | Lincoln |
| 12 | CET53 (OG-BU) | 22 | CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK | |
| 12 | CET53 (BU-OG) | 22 | CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK | Lincoln |
| 13 | VLN78 (VT-OG) | 22 | CTRL MOD. - PUSH TO START SWITCH PULSING ILLUMINATION | |
| 14 | * | * | Not Used | |
| 15 | CPL26 (GN-VT) | 22 | SWITCH - LATCH DRIVER OR LEFT FRONT # AJAR | |
| 16 | CET82 (GN-VT) | 20 | SWITCH - SHIFT-BY-WIRE OVERRIDE 1 (OVERRIDE_SW_1) | Lincoln |
| 16 | CET82 (VT-GN) | 22 | SWITCH - SHIFT-BY-WIRE OVERRIDE 1 (OVERRIDE_SW_1) | |
| 17 | VET78 (WH-VT) | 18 | ACTUATOR - GEAR SHIFT # PWM OUT 3 (PWM3) | |
| 18 | GD383 (BK-WH) | 20 | GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1399 |
Service Part Number: EU2Z-14S411-LA Gauge: 20 Pin material: Tin (greased) Cavities: 18 Vehicle Uses Module - Gear Shift |
