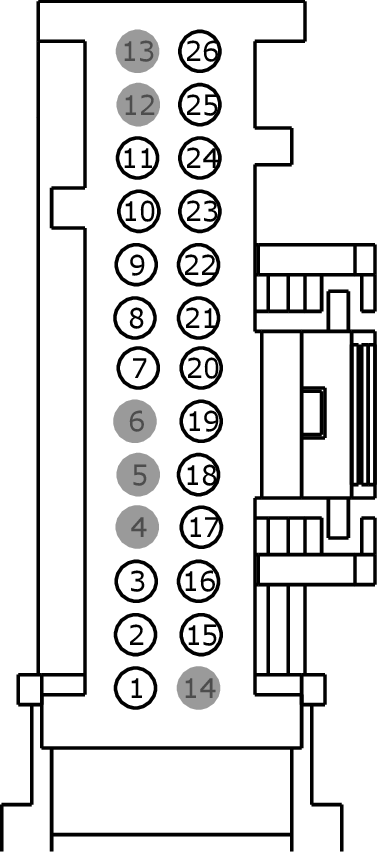

Connector End View (C2402A) - FRONT CONTROLS INTERFACE MODULE (FCIM)
Connector: C2402A
Description
FRONT CONTROLS INTERFACE MODULE (FCIM)
Color
Harness
14401
Base Part #
#N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | GD216 (BK-VT) | 20 | GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT | Ford China |
| 1 | GD216 (BK-GY) | 20 | GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT | |
| 2 | RH111 (GY) | 22 | CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS | Ford China |
| 2 | RH111 (GY) | 26 | CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS | |
| 3 | LH111 (BN-WH) | 22 | CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS | |
| 3 | LH111 (BN-WH) | 26 | CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS | Lincoln |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | CRD02 (BN-BU) | 22 | CTRL MOD. - RELAY HEATER REAR WINDOW | |
| 8 | CH239 (BU-WH) | 26 | CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 2 / OPEN (IF PLUS) | |
| 8 | CH239 (BU) | 26 | CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 2 / OPEN (IF PLUS) | Ford China |
| 9 | CH238 (YE) | 26 | CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 1 / CLOSE (IF PLUS) | |
| 10 | CH237 (VT-WH) | 26 | CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COMMON | |
| 11 | CH123 (VT-GN) | 22 | CTRL MOD. - BLOWER MOTOR RELAY | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | VH451 (WH-GN) | 22 | SENSOR - AIR QUALITY | |
| 16 | CH206 (YE-BU) | 26 | CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COMMON | |
| 17 | VDB06 (OG) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | Ford |
| 17 | VDB06 (GY-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | Ford China |
| 17 | VDB06 (GY) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | Lincoln |
| 18 | VDB07 (VT) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | Ford |
| 18 | VDB07 (VT) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | Lincoln |
| 19 | VH406 (VT) | 26 | SENSOR - A/C EVAPORATOR TEMPERATURE (ACET) | |
| 20 | CH202 (BU-WH) | 26 | CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 1 / FLOOR (IF PLUS) | |
| 21 | CH203 (GN) | 26 | CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 2 / PANEL (IF PLUS) | |
| 22 | CH201 (BN) | 26 | CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COMMON | |
| 23 | VH101 (WH) | 26 | CTRL MOD. - CLIMATE # BLOWER MOTOR CONTROL | |
| 24 | CH208 (GN-WH) | 26 | CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2 / OPEN (IF PLUS) | |
| 25 | CH207 (BU-OG) | 26 | CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1 / CLOSE (IF PLUS) | |
| 26 | SBP12 (GN-RD) | 20 | FUSE - 12 OR CIRCUIT BREAKER |
