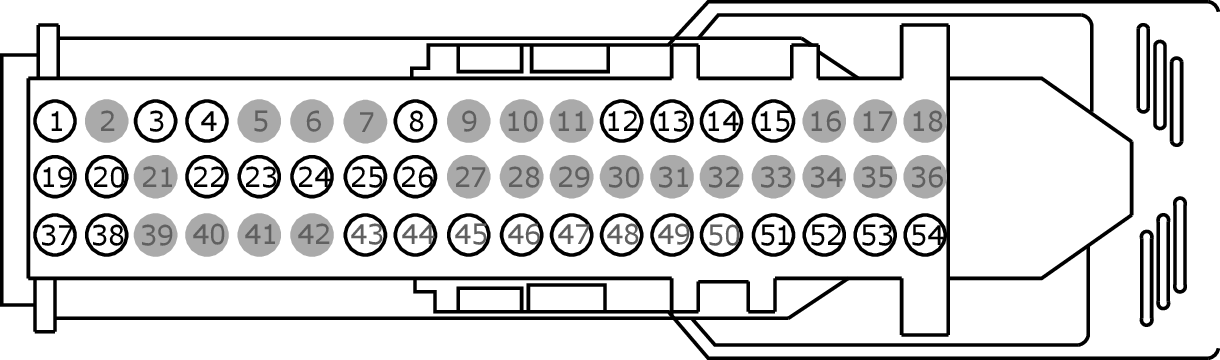

Connector End View (C2383A) - SYNC MODULE [APIM]
Connector: C2383A
Description
SYNC MODULE [APIM]
Color
Harness
14401
Base Part #
#N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | SBP32 (VT-RD) | 20 | FUSE - 32 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | VME80 (GY-BU) | 22 | CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (+) | |
| 4 | RME80 (GN-VT) | 22 | CTRL MOD. - MULTIMEDIA GATEWAY MODULE # ALERT 1 (-) | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | * | * | Not Used | |
| 8 | LME89 (YE-BU) | 22 | CTRL MOD. - MEDIA CONNECTIVITY POWER | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | VMM23 (BN-VT) | 22 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL + | |
| 13 | RMM23 (WH-GN) | 22 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # MICROPHONE PHONE/VOICE CONTROL - | |
| 14 | VMP19 (WH-GN) | 22 | CAMERA - PARKING AID REAR VIDEO + | |
| 15 | RMP19 (BN-VT) | 22 | CAMERA - PARKING AID REAR VIDEO - | |
| 16 | * | * | Not Used | |
| 17 | * | * | Not Used | |
| 18 | * | * | Not Used | |
| 19 | VDB29 (GN) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH | |
| 20 | VDB30 (WH) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW | |
| 21 | * | * | Not Used | |
| 22 | DME52 (*) | 20 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO D | |
| 23 | VME52 (BU) | 22 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO LEFT + | |
| 24 | RME52 (GY-OG) | 22 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO LEFT - | |
| 25 | VME53 (VT) | 22 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO RIGHT + | |
| 26 | RME53 (BN-WH) | 22 | CTRL MOD. - BLUETOOTH/MULTIMEDIA GATEWAY MODULE # AUDIO RIGHT - | |
| 27 | * | * | Not Used | |
| 28 | * | * | Not Used | |
| 29 | * | * | Not Used | |
| 30 | * | * | Not Used | |
| 31 | * | * | Not Used | |
| 32 | * | * | Not Used | |
| 33 | * | * | Not Used | |
| 34 | * | * | Not Used | |
| 35 | * | * | Not Used | |
| 36 | * | * | Not Used | |
| 37 | GD215 (BK-GY) | 20 | GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT | |
| 38 | RME89 (WH-BU) | 22 | CTRL MOD. - MEDIA CONNECTIVITY GROUND | |
| 39 | * | * | Not Used | |
| 40 | * | * | Not Used | |
| 41 | * | * | Not Used | |
| 42 | * | * | Not Used | |
| 43 | * | * | Not Used | |
| 44 | * | * | Not Used | |
| 45 | * | * | Not Used | |
| 46 | * | * | Not Used | |
| 47 | * | * | Not Used | |
| 48 | * | * | Not Used | |
| 49 | * | * | Not Used | |
| 50 | * | * | Not Used | |
| 51 | VME90 (GY) | 26 | CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (+) (SDL-H) | |
| 52 | VME91 (WH) | 26 | CTRL MOD. - SATELLITE DIGITAL RADIO DATA LINK (-) (SDL-L) | |
| 53 | VDB04 (BU) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 54 | VDB05 (WH) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
