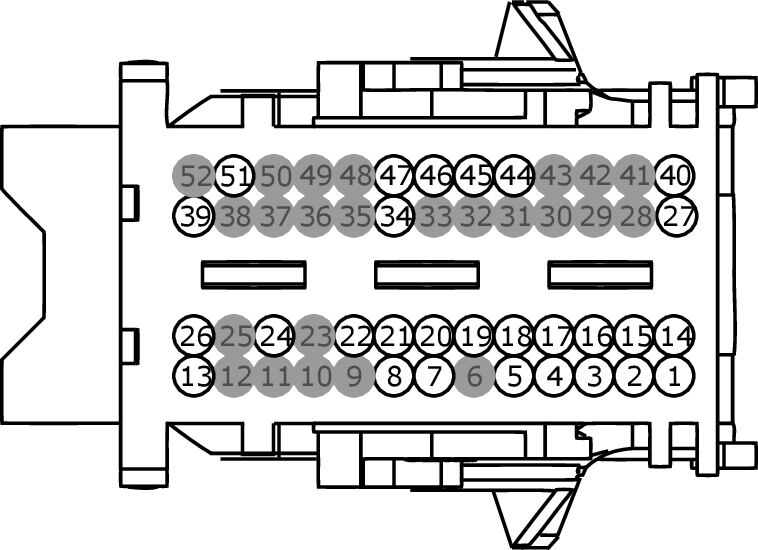

Connector End View (C2280G) - BODY CONTROL MODULE (BCM)
Connector: C2280G
Description
BODY CONTROL MODULE (BCM)
Color
Harness
14401
Base Part #
#N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPL45 (BN) | 22 | SWITCH - LIFTGATE/DECKLID RELEASE | Lincoln |
| 1 | CPR63 (GY-YE) | 22 | SWITCH - POWER LIFTGATE/DECKLID # OPEN/CLOSE | |
| 2 | CLN34 (YE) | 26 | CTRL MOD. - DOOR WARNING LAMP DRIVER + | Lincoln |
| 2 | CLS34 (GY) | 26 | SWITCH - PARK LAMPS | |
| 3 | CLF56 (BN) | 26 | CTRL MOD. - AUTOMATIC HIGH BEAM # SWITCH INDICATOR | Lincoln |
| 3 | CLN56 (BN) | 26 | DIMMER - IP/SWITCH ILLUMINATION # DIM DOWN | |
| 4 | CMP18 (GN) | 26 | SWITCH - PARKING AID | Ford China |
| 4 | CMP18 (GN-BN) | 22 | SWITCH - PARKING AID | |
| 5 | CPK35 (YE) | 22 | CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 + | Lincoln |
| 5 | CPK35 (YE) | 26 | CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 + | |
| 6 | * | * | Not Used | |
| 7 | CLF55 (WH) | 26 | SWITCH - AUTOMATIC HIGH BEAM | Ford China |
| 7 | CLN55 (WH) | 26 | DIMMER - IP/SWITCH ILLUMINATION # DIM UP | |
| 8 | CLF57 (BN-WH) | 26 | SWITCH - FOG LAMPS REAR (USE CLS48 GOING FORWARD) | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | VDN07 (WH) | 26 | CTRL MOD. - LIN BUS # MULTICONTOUR SEAT TRIPLE VALVE MODULE [OBSOLETE - REPLACED BY VPSD7] | Ford China |
| 13 | VDN07 (WH-VT) | 22 | CTRL MOD. - LIN BUS # MULTICONTOUR SEAT TRIPLE VALVE MODULE [OBSOLETE - REPLACED BY VPSD7] | |
| 13 | VDN07 (VT-WH) | 22 | CTRL MOD. - LIN BUS # MULTICONTOUR SEAT TRIPLE VALVE MODULE [OBSOLETE - REPLACED BY VPSD7] | Lincoln |
| 14 | CPL24 (YE-BU) | 22 | SWITCH - FUEL FILLER DOOR # RELEASE | |
| 15 | CLF24 (YE-BU) | 26 | SWITCH - HEADLAMP ON | |
| 15 | CLF24 (YE) | 26 | SWITCH - HEADLAMP ON | Ford China |
| 16 | CLF23 (VT) | 26 | SWITCH - HEADLAMP OFF | |
| 17 | CMP32 (GN) | 22 | SWITCH - ACTIVE PARK ASSIST (AUTOPARK) | |
| 18 | RRH02 (WH) | 26 | CTRL MOD. - SWITCH HORN | Ford China |
| 18 | RRH02 (GN-WH) | 26 | CTRL MOD. - SWITCH HORN | |
| 19 | CLS32 (BN-YE) | 26 | SWITCH - HAZARD | Lincoln |
| 19 | CLS32 (BN-YE) | 22 | SWITCH - HAZARD | |
| 20 | CLF21 (GY-BN) | 26 | SWITCH - FOG LAMPS FRONT | |
| 21 | CLF19 (VT-WH) | 26 | SWITCH - AUTOLAMP (1) ON | |
| 22 | RLF14 (GY-BN) | 22 | SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) - | |
| 22 | RLF14 (GY) | 22 | SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) - | Ford China |
| 22 | RLF14 (GY-BN) | 26 | SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) - | |
| 23 | * | * | Not Used | |
| 24 | VLF14 (BU) | 26 | SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) + | |
| 25 | * | * | Not Used | |
| 26 | VPL56 (BU-WH) | 26 | RECEIVER - REMOTE RF | |
| 27 | RPK05 (YE-OG) | 22 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT) - | Ford China |
| 27 | RPK05 (YE-OG) | 26 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT) - | |
| 28 | * | * | Not Used | |
| 29 | * | * | Not Used | |
| 30 | * | * | Not Used | |
| 31 | * | * | Not Used | |
| 32 | * | * | Not Used | |
| 33 | * | * | Not Used | |
| 34 | CMP02 (BU) | 26 | CTRL MOD. - PARKING AID # INDICATOR STATUS | |
| 35 | * | * | Not Used | |
| 36 | * | * | Not Used | |
| 37 | * | * | Not Used | |
| 38 | * | * | Not Used | |
| 39 | CPK36 (VT) | 26 | CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED | |
| 39 | CPK36 (VT) | 22 | CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED | Lincoln |
| 40 | VPK05 (BN-GN) | 22 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT) + | |
| 40 | VPK05 (BN-GN) | 26 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 1 (FRONT) + | Ford China |
| 41 | * | * | Not Used | |
| 42 | * | * | Not Used | |
| 43 | * | * | Not Used | |
| 44 | VLN78 (VT-OG) | 22 | CTRL MOD. - PUSH TO START SWITCH PULSING ILLUMINATION | |
| 45 | VLN04 (VT) | 22 | CTRL MOD. - IP/SWITCH ILLUMINATION | |
| 45 | VLN04 (BU-WH) | 26 | CTRL MOD. - IP/SWITCH ILLUMINATION | Lincoln |
| 45 | VLN04 (VT) | 26 | CTRL MOD. - IP/SWITCH ILLUMINATION | |
| 46 | CET53 (BU-OG) | 22 | CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK | |
| 47 | CE436 (VT-OG) | 22 | CTRL MOD. -WAKE UP PCM | |
| 48 | * | * | Not Used | |
| 49 | * | * | Not Used | |
| 50 | * | * | Not Used | |
| 51 | CPK34 (BN-VT) | 22 | CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 + | Ford China |
| 51 | CPK34 (BN-VT) | 20 | CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 + | |
| 51 | CPK34 (BN-VT) | 22 | CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 + | Lincoln |
| 52 | * | * | Not Used |
