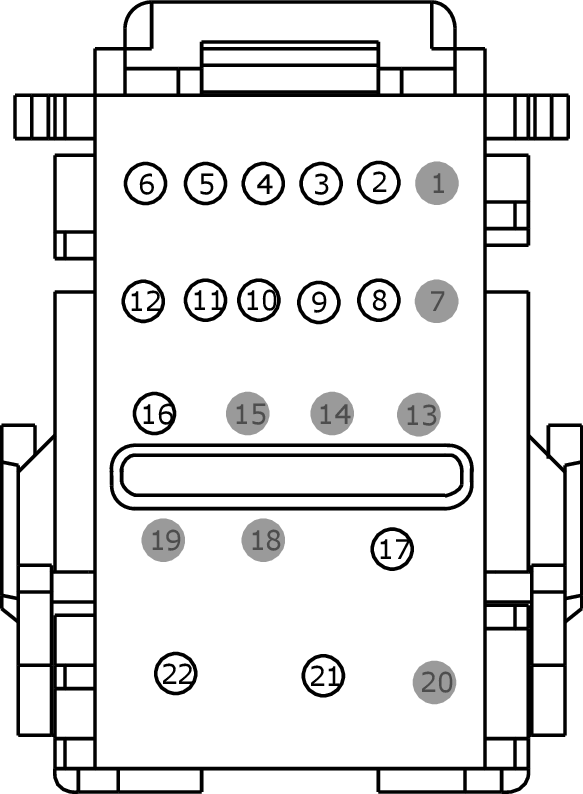

Connector End View (C2280B) - BODY CONTROL MODULE (BCM)
Connector: C2280B
Description
BODY CONTROL MODULE (BCM)
Color
Harness
12A581
Base Part #
#N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | CLF05 (BU-GN) | 20 | CTRL MOD. - BEAM LOW RIGHT | |
| 3 | CLS05 (BU-GY) | 20 | CTRL MOD. - PARK | |
| 4 | CLF04 (BN-BU) | 20 | CTRL MOD. - BEAM LOW LEFT | |
| 5 | CLF34 (YE-OG) | 20 | CTRL MOD. - FOG LAMPS FRONT RIGHT OR COMMON | |
| 5 | CLS07 (BN-YE) | 20 | CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT | Lincoln |
| 6 | CLF03 (VT-OG) | 20 | CTRL MOD. - BEAM HIGH RIGHT | |
| 7 | * | * | Not Used | |
| 8 | CDC43 (YE-BU) | 18 | RELAY - ELECTRICAL STEERING COLUMN LOCK | |
| 9 | VDB05 (WH) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 10 | VDB04 (WH-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 11 | CLF02 (GY-BN) | 20 | CTRL MOD. - BEAM HIGH LEFT | |
| 12 | CLF29 (BN) | 20 | CTRL MOD. - FOG LAMPS FRONT (LEFT) | |
| 12 | CLS06 (BN-YE) | 20 | CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT | Lincoln |
| 13 | * | * | Not Used | |
| 14 | * | * | Not Used | |
| 15 | * | * | Not Used | |
| 16 | CLN09 (YE-GN) | 20 | RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING) | |
| 17 | SB101 (RD) | 10 | FUSE - 1 OR CIRCUIT BREAKER | |
| 17 | SBF03 (BU-RD) | 10 | FUSE - 3 | |
| 18 | * | * | Not Used | |
| 19 | * | * | Not Used | |
| 20 | * | * | Not Used | |
| 21 | SBB67 (BU-RD) | 10 | FUSE - 67 OR CIRCUIT BREAKER | |
| 22 | SBB62 (BN-RD) | 10 | FUSE - 62 OR CIRCUIT BREAKER |
