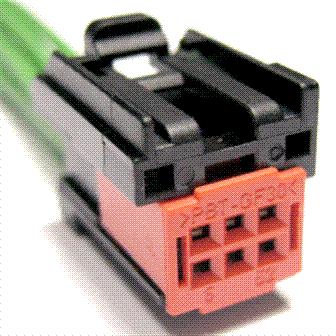

Connector End View (C2195) - IGNITION SWITCH-PUSH BUTTON START
Connector: C2195
Description
IGNITION SWITCH-PUSH BUTTON START
Color
Harness
14401
Base Part #
#N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPK34 (BN-VT) | 20 | CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 1 + | |
| 2 | CPK36 (VT) | 26 | CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED | |
| 3 | GD214 (BK-BU) | 20 | GROUND - INSTRUMENT PANEL STRUCTURE | |
| 4 | SBP18 (YE-RD) | 22 | FUSE - 18 OR CIRCUIT BREAKER | |
| 4 | SBP29 (YE-RD) | 22 | FUSE - 29 OR CIRCUIT BREAKER | China |
| 5 | VLN04 (VT) | 26 | CTRL MOD. - IP/SWITCH ILLUMINATION | |
| 5 | VLN04 (VT-WH) | 26 | CTRL MOD. - IP/SWITCH ILLUMINATION | China |
| 6 | CPK35 (YE) | 26 | CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 + |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1164 |
Service Part Number: 8U2Z-14S411-JB Gauge: 18 Pin material: Silver Cavities: 6 Vehicle Uses Switch - Deck Lid / Hatch Release Switch - Deck Lid / Lift Gate Ajar Switch - Hazard Warning Switch - Heated Back Light (Rear Defrost) Switch - Power Liftgate Switch - Reverse Park Aid Switch - Start/Stop Switch - Sunshade Switch - Traction Control |
