Connector End View (C1755) - EXHAUST GAS TEMPERATURE (EGT) SENSOR

Connector: C1755

Description

EXHAUST GAS TEMPERATURE (EGT) SENSOR

Color

Harness

14A280

Base Part #

#N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LE145 (WH-VT)	20	CTRL MOD. - POWERTRAIN # EXHAUST GAS TEMPERATURE SENSOR BANK 1 POST CAT +
2	RE407 (YE-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)

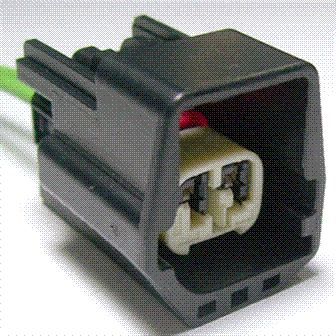

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1448

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-AUA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Switch - Deck Lid / Lift Gate (ANTI-THEFT)
