Connector End View (C1728) - CRANKSHAFT POSITION (CKP) SENSOR

Connector: C1728

Description

CRANKSHAFT POSITION (CKP) SENSOR

Color

Harness

12C508

Base Part #

#N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	LE135 (GY-VT)	20	CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP) +
2	RE135 (GN-BN)	20	CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKPN) -
3	VE711 (YE-VT)	20	SENSOR - CRANKSHAFT POSITION (CKPP) +

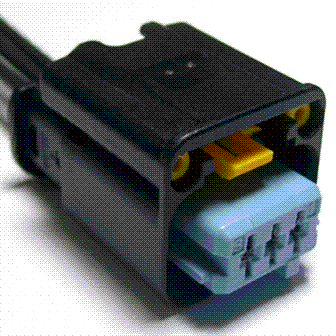

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1431

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-AAA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Sensor - Crank Shaft Position
