Connector End View (C1657) - ENGINE OIL PRESSURE (EOP) SENSOR

Connector: C1657

Description

ENGINE OIL PRESSURE (EOP) SENSOR

Color

Harness

12C508

Base Part #

#N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CMC14 (BN-YE)	18	SENSOR - LOW LEVEL ENGINE OIL
2	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2
3	LE458 (BU-WH)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2)

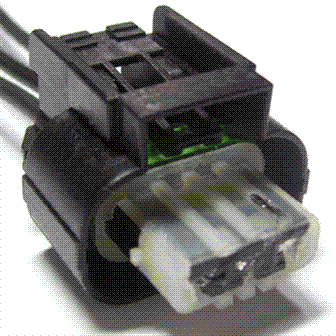

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1066

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-GA

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Sensor - Fuel Rail Pressure
