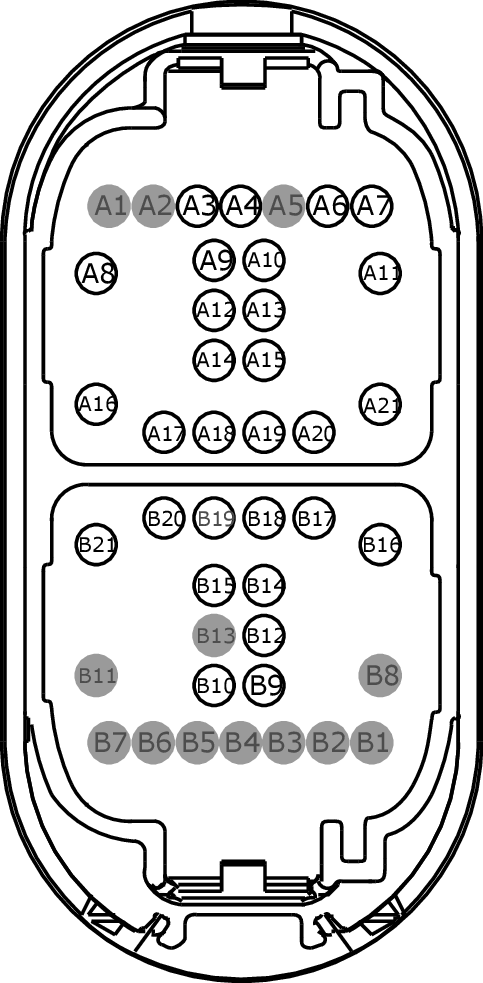

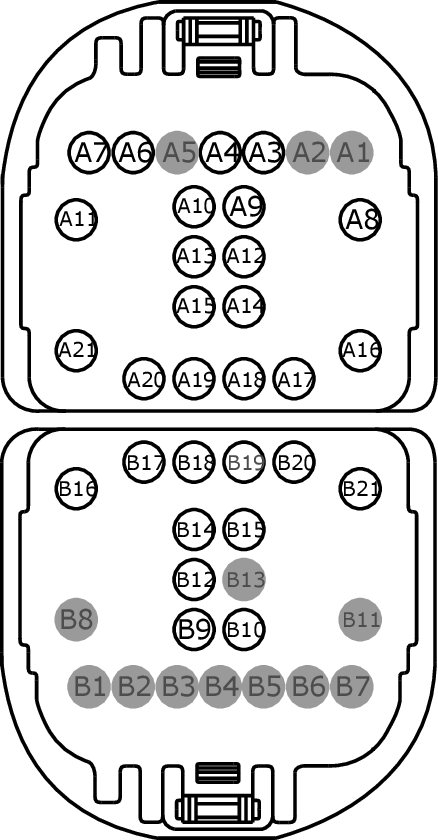

Connector End View (C313) - INLINE
Inline: C313
Description
INLINE
Color
Base Part #
Service Pigtail
See Below
MALE
Harness 14633
FEMALE
Harness 14633
| Pin | Circuit | Gauge | Qualifier |
| A1 | * | * | 14633 |
| A2 | * | * | 14633 |
| A3 | CLN25 (VT) | 22 | |
| A4 | CPL77 (BU) | 22 | |
| A5 | * | * | 14633 |
| A6 | VLN73 (GY-BN) | 22 | |
| A7 | CBX07 (GN-RD) | 22 | |
| A8 | CPL13 (BN-GN) | 14 | |
| A9 | CPL36 (GN) | 22 | |
| A10 | RPK39 (VT) | 22 | |
| A10 | RPK39 (VT-OG) | 22 | |
| A11 | CPL11 (GY-BN) | 14 | |
| A12 | CPL89 (BN) | 22 | |
| A12 | CPL89 (BN-BU) | 22 | |
| A12 | VME82 (GY-YE) | 18 | |
| A13 | RME82 (BN-YE) | 18 | |
| A13 | VPK46 (GY) | 22 | |
| A14 | CPL42 (GY-YE) | 22 | |
| A15 | VDN09 (WH) | 22 | |
| A15 | VDN09 (WH-GN) | 22 | |
| A16 | SBP29 (GY-RD) | 12 | |
| A17 | VME09 (WH-GN) | 18 | |
| A18 | RME09 (BN-YE) | 18 | |
| A19 | VME39 (GN-BN) | 20 | |
| A20 | RME39 (GY-BN) | 20 | |
| A21 | GD382 (BK-GY) | 12 | |
| B1 | * | * | 14633 |
| B2 | * | * | 14633 |
| B3 | * | * | 14633 |
| B4 | * | * | 14633 |
| B5 | * | * | 14633 |
| B6 | * | * | 14633 |
| B7 | * | * | 14633 |
| B8 | * | * | 14633 |
| B9 | VLN73 (GY-BN) | 22 | |
| B10 | CBX07 (GN-RD) | 22 | |
| B11 | * | * | 14633 |
| B12 | VLN04 (VT-GY) | 22 | |
| B13 | * | * | 14633 |
| B14 | VPK46 (GY) | 22 | |
| B15 | CPL77 (BU-GN) | 22 | |
| B16 | CPL11 (GN-BN) | 14 | |
| B17 | CLN25 (VT) | 22 | |
| B18 | CPL89 (BN-BU) | 22 | |
| B19 | * | * | 14633 |
| B20 | VPK03 (YE) | 22 | |
| B21 | CPL13 (BN-GN) | 14 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1425 |
Service Part Number: FU2Z-14S411-RA Gauge: 14 16 20 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
| Pigtail Kit Part Number WPT-1482 |
Service Part Number: GU2Z-14S411-GB Gauge: 14 16 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
