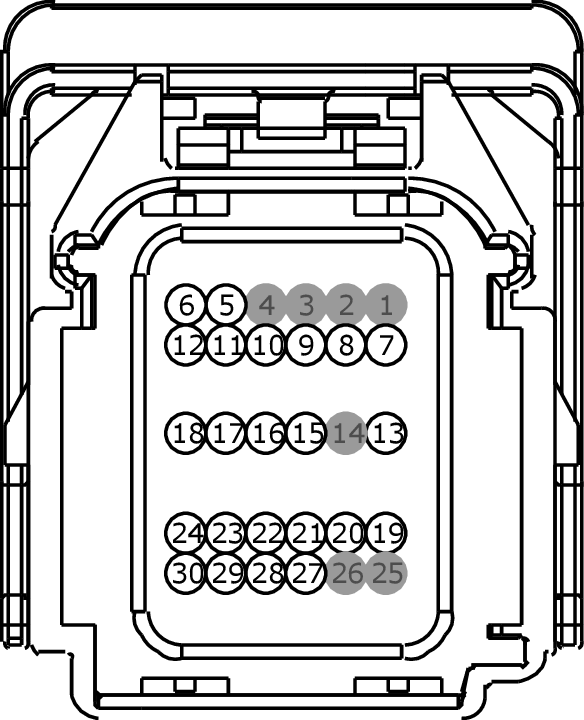

Connector End View (C310A) - RESTRAINTS CONTROL MODULE (RCM)

Connector: C310A

Description

RESTRAINTS CONTROL MODULE (RCM)

Color

Harness

14401

Base Part #

#N/A

Service Pigtail

Not Available

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	*	*	Not Used
3	*	*	Not Used
4	*	*	Not Used
5	CR139 (VT-WH)	20	CTRL MOD. - AIR BAG DRIVER KNEE +
6	RR139 (YE)	20	CTRL MOD. - AIR BAG DRIVER KNEE -
7	CR144 (GY-OG)	20	CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING +
8	RR144 (VT-GN)	20	CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING -
9	RR168 (BU-WH)	20	CTRL MOD. - PYROTECHNIC STEERING COLUMN -
10	CR168 (WH-GN)	20	CTRL MOD. - PYROTECHNIC STEERING COLUMN +
11	CR169 (VT)	20	CTRL MOD. - AIR BAG PASSENGER KNEE +
12	RR169 (GY-VT)	20	CTRL MOD. - AIR BAG PASSENGER KNEE -
13	CR116 (GN-WH)	22	CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATE +
14	*	*	Not Used
15	VR214 (WH-BU)	20	SENSOR - IMPACT FRONT 2ND
16	RR130 (GN-BU)	20	CTRL MOD. - SENSOR IMPACT FRONT 2ND
17	RR129 (YE-GY)	20	CTRL MOD. - SENSOR IMPACT FRONT 1ST -
18	VR213 (VT-GN)	20	SENSOR - IMPACT FRONT 1ST
19	CR194 (VT-WH)	18	CTRL MOD. - EXTENDED POWER # RESTRAINTS CONTROL MODULE POWER
20	RR116 (BN-GN)	22	CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATE -
21	RR102 (WH)	20	CTRL MOD. - AIR BAG DRIVER 2 -
22	CR102 (BU)	20	CTRL MOD. - AIR BAG DRIVER 2 +
23	CR104 (YE-GY)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 2 +
24	RR104 (WH-BU)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 2 -
25	*	*	Not Used
26	*	*	Not Used
27	RR103 (VT-GN)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 1 -
28	CR103 (GY-BU)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 1 +
29	CR101 (VT-BN)	20	CTRL MOD. - AIR BAG DRIVER 1+
30	RR101 (YE-GN)	20	CTRL MOD. - AIR BAG DRIVER 1 -
