Connector End View (C291) - INLINE
Inline: C291
Description
INLINE
Color
Base Part #
Service Pigtail
See Below

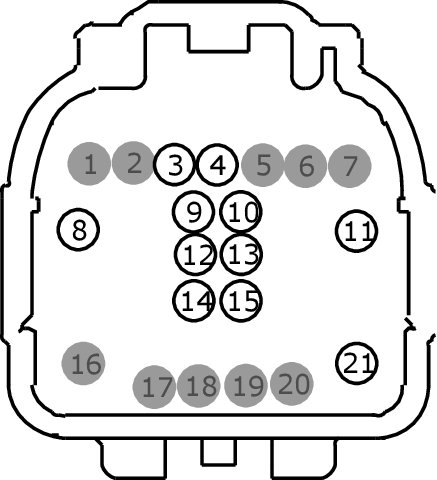

MALE
Harness 14A005

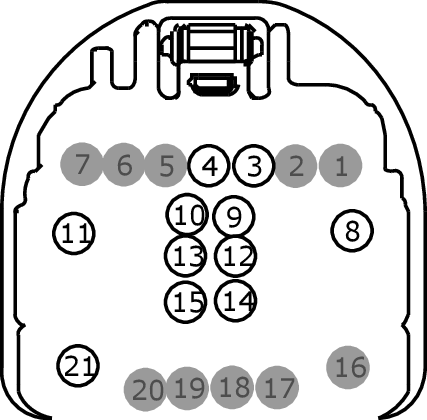

FEMALE
Harness 14401
| Pin | Circuit | Gauge | Qualifier |
| 1 | * | * | |
| 2 | * | * | |
| 3 | VME80 (VT) | 20 | 14A005 |
| 3 | VME80 (VT-GN) | 22 | 14401 |
| 4 | RME80 (BU-GY) | 20 | 14A005 |
| 4 | RME80 (BU-GY) | 22 | 14401 |
| 5 | * | * | |
| 6 | * | * | |
| 7 | * | * | |
| 8 | DME52 (*) | 20 | |
| 9 | VDB04 (BU) | 26 | |
| 10 | VDB05 (WH) | 26 | |
| 11 | LME89 (YE-BU) | 22 | |
| 12 | VME53 (VT-GN) | 20 | 14A005 |
| 12 | VME53 (VT-GN) | 22 | 14401 |
| 13 | RME53 (BN-WH) | 20 | 14A005 |
| 13 | RME53 (BN-WH) | 22 | 14401 |
| 14 | VME52 (BU) | 20 | 14A005 |
| 14 | VME52 (BU) | 22 | 14401 |
| 15 | RME52 (GY-OG) | 20 | 14A005 |
| 15 | RME52 (GY-OG) | 22 | 14401 |
| 16 | * | * | |
| 17 | * | * | |
| 18 | * | * | 14A005 |
| 18 | CPL24 (YE-BU) | 22 | 14401 |
| 19 | * | * | |
| 20 | * | * | |
| 21 | RME89 (WH-BU) | 22 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1425 |
Service Part Number: FU2Z-14S411-RA Gauge: 14 16 20 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
