Connector End View (C268) - INLINE
Inline: C268
Description
INLINE
Color
Base Part #
Service Pigtail
See Below

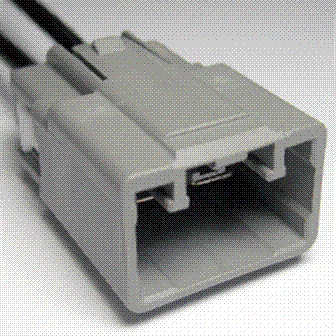

MALE
Harness 18B518

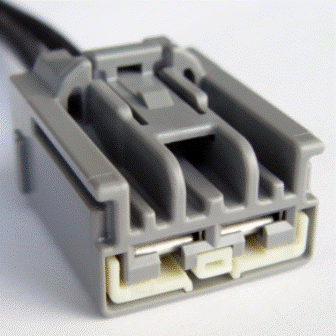

FEMALE
Harness 14401
| Pin | Circuit | Gauge | Qualifier |
| 1 | CH402 (YE-GN) | 10 | |
| 2 | GD216 (BK-VT) | 10 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1190 |
Service Part Number: 3U2Z-14S411-EFAB Gauge: 10 Pin material: Tin (greased) Cavities: 2 Vehicle Uses: Terminal - Rear Window Defroster Grid |
| Pigtail Kit Part Number WPT-1486 |
Service Part Number: 3U2Z-14S411-PB Gauge: 12 Pin material: Tin Cavities: 2 Vehicle Uses: Inverter - DC to AC Module - Heated Seat Module - Lighting Control Module - Seat Memory Module - Variable Speed Blower Controller Motor - Heater/AC Blower (Auxiliary) Motor - Heater/AC Blower (Front) Radio - Amplifier Relay - Blower Motor Relay - Trailer Tow Resistor - Blower Motor (Front) Switch - Heater / A/C Blower (Front) Terminal - Rear Window Defroster Grid Trailer Tow - Vehicle Side |
| Pigtail Kit Part Number WPT-236 |
Service Part Number: 3U2Z-14S411-PA Gauge: 10 Pin material: Tin Cavities: 2 Vehicle Uses: Mirror - Vanity Module - Seat Memory Motor - Heater/AC Blower (Auxiliary) Motor - Heater/AC Blower (Front) Radio - Amplifier Resistor - Blower Motor (Front) Switch - Heater / A/C Blower (Front) |
