Connector End View (C219) - INLINE

Inline C219

Description

INLINE

Color

Base Part #

Service Pigtail

Not Available

MALE

Harness 12A581

FEMALE

Harness 14401

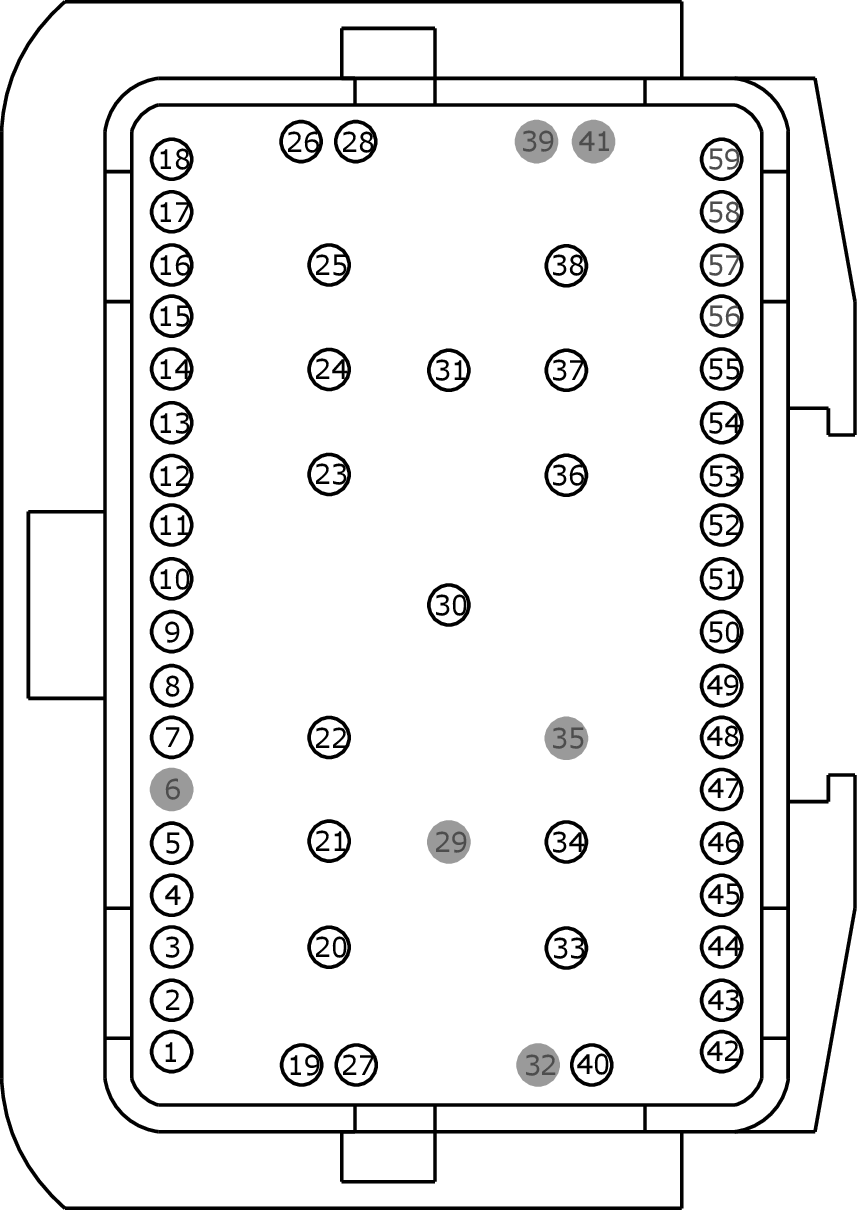

GFDW79088Courtesy of FORD MOTOR COMPANY

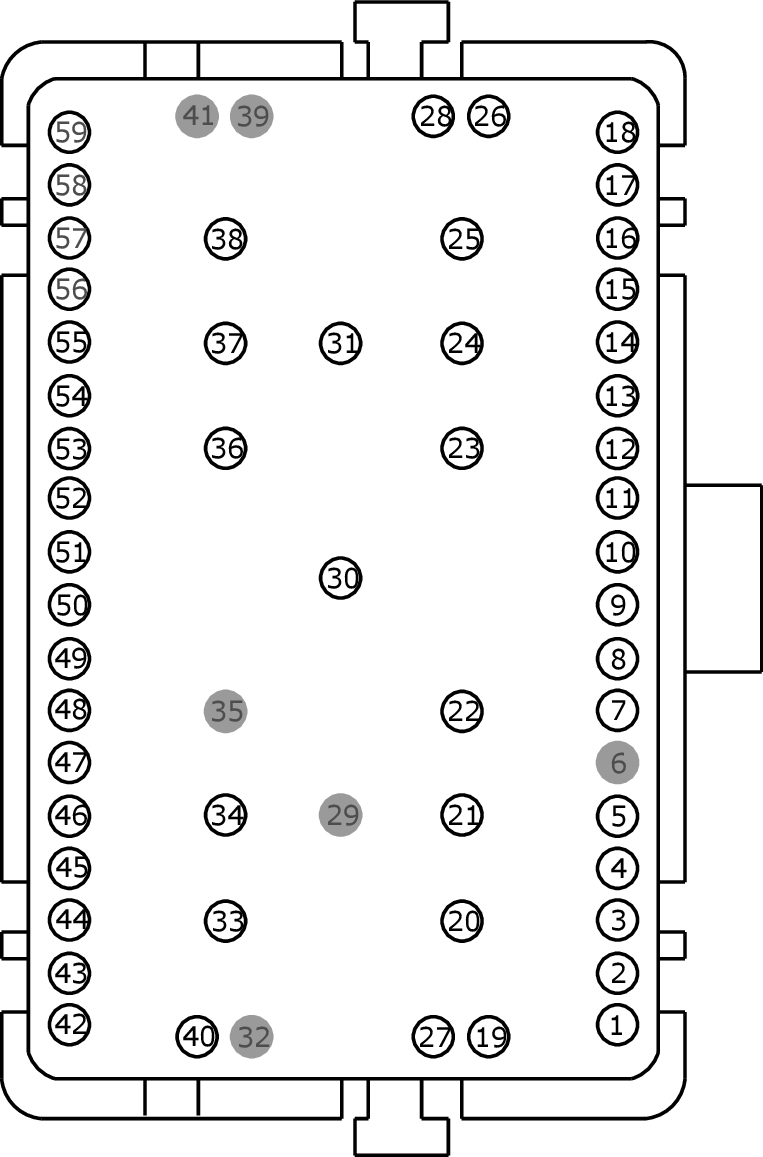

GFDW79089Courtesy of FORD MOTOR COMPANY
Pin  Circuit  Gauge  Qualifier
1 LEF15 (GN-WH) 22 14401
1 LLF15 (WH-GN) 20 12A581
1 LLF15 (WH-GN) 22 14401
2 RLF15 (BN-GN) 22 14401
2 RLF15 (GN-BU) 20
3 VLF15 (GN) 20 12A581
3 VLF15 (GN) 22 14401
4 CBB20 (YE) 20 14401
4 VLF32 (YE) 20
4 VLF32 (YE) 22 14401
5 DLF32 (*) 20
6 * * 14401
6 CDC43 (YE-BU) 18 12A581
7 CRW15 (BN-WH) 20 14401
7 CRW15 (BN-WH) 20 14401
7 CRW15 (BN-WH) 20 14401
7 CRW15 (BN-WH) 22 14401
7 CRW15 (BN-WH) 22
8 CET59 (GY-VT) 22 12A581
8 CET59 (VT-GY) 22 14401
9 CET42 (GN-VT) 20 12A581
9 CET42 (GN-VT) 22 14401
9 CET42 (GN-VT) 22 14401
9 CET42 (GN-VT) 22 14401
9 CET42 (GN-WH) 22 14401
9 CET42 (GN-WH) 22 14401
10 CET43 (GY) 20 12A581
10 CET43 (GY) 22 14401
11 VR213 (VT-GN) 20
12 RR129 (YE-GY) 20
13 VR214 (WH-BU) 20
14 RR130 (GN-BU) 20
15 VLF33 (BU) 20
16 DLF33 (*) 20
17 VET76 (GN-OG) 18 14401
17 VET76 (GN-OG) 18
17 VET76 (GN-OG) 22 14401
18 VET78 (GN-OG) 18 12A581
18 VET78 (VT-WH) 22 14401
18 VET78 (WH-VT) 18 14401
18 VET78 (WH-VT) 18
19 VET77 (GY-YE) 18
20 SBB16 (VT-RD) 16
21 SBB05 (GY-RD) 16
22 SBB10 (YE-RD) 16
23 SBB65 (RD) 14
23 SBB65 (RD) 16 14401
24 SBB17 (RD) 16
25 CDC35 (BU-WH) 20 12A581
25 CPK34 (BN-VT) 20 14401
25 CPK34 (BN-VT) 20 14401
25 CPK34 (BN-VT) 22 14401
25 CPK34 (BN-VT) 22 14401
26 CMC20 (VT) 20 12A581
26 CMC20 (VT) 22 14401
27 SBB45 (GY-RD) 18
28 CRD02 (BN-BU) 20 12A581
28 CRD02 (BN-BU) 22 14401
29 * *
30 CH402 (YE-GN) 10
31 SBB81 (RD) 10
32 * *
33 CBB23 (BN-YE) 18 12A581
33 CBB23 (BN-YE) 20 14401
33 CBB23 (BN-YE) 22 14401
34 CRD02 (BN-BU) 20 14401
34 CRD02 (BU-BN) 20 12A581
34 SBB26 (YE-RD) 16
35 * *
36 GD216 (BK-VT) 20
37 CCB08 (VT-WH) 20 12A581
37 CCB08 (VT-WH) 22 14401
38 VH451 (WH-GN) 18 12A581
38 VH451 (WH-GN) 22 14401
39 * *
40 CH123 (VT-GN) 20 12A581
40 CH123 (VT-GN) 22 14401
41 * *
42 CRD21 (WH-BN) 20 12A581
42 CRD21 (WH-BN) 22 14401
43 CRD22 (GY-YE) 20 12A581
43 CRD22 (WH-BN) 22 14401
44 VDN05 (YE-GY) 22
45 RE406 (GY-VT) 20 12A581
45 RE407 (VT) 22 14401
45 RE407 (VT) 22 14401
45 RE407 (YE-VT) 20 12A581
45 RE407 (YE-VT) 22 14401
45 RE407 (YE-VT) 22 14401
46 CCB20 (BU-WH) 20
46 CCB20 (BU-WH) 22 14401
47 CCB21 (GN-VT) 20
47 CCB21 (GN-VT) 22 14401
48 CCB22 (BN) 26 14401
48 CCB22 (WH-BN) 20
49 CCB23 (VT) 26 14401
49 CCB23 (VT-GN) 20
50 CCB24 (WH) 26 14401
50 CCB24 (WH-OG) 20
51 CCB25 (BN) 20
51 CCB25 (BN) 22 14401
52 CBB20 (YE-VT) 20
53 VLF22 (VT-GN) 20
54 VDB25 (GN) 26 14401
54 VDB25 (GN) 26 14401
54 VDB25 (GN-OG) 20 12A581
54 VDB25 (GN-OG) 22 14401
54 VDB25 (GN-OG) 22 14401
55 VDB26 (GY) 26 14401
55 VDB26 (GY) 26 14401
55 VDB26 (GY) 26 14401
55 VDB26 (GY-BU) 20 12A581
55 VDB26 (GY-BU) 22 14401
55 VDB26 (GY-BU) 22 14401
56 * * 12A581
56 CBB55 (BN-BU) 20 14401
57 * * 12A581
57 CYT30 (GN-VT) 22 14401
57 CYT30 (GY-VT) 22 14401
58 * * 12A581
58 CBP21 (BU-GY) 22 14401
59 * *
