Connector End View (C210) - INLINE
Inline: C210
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available

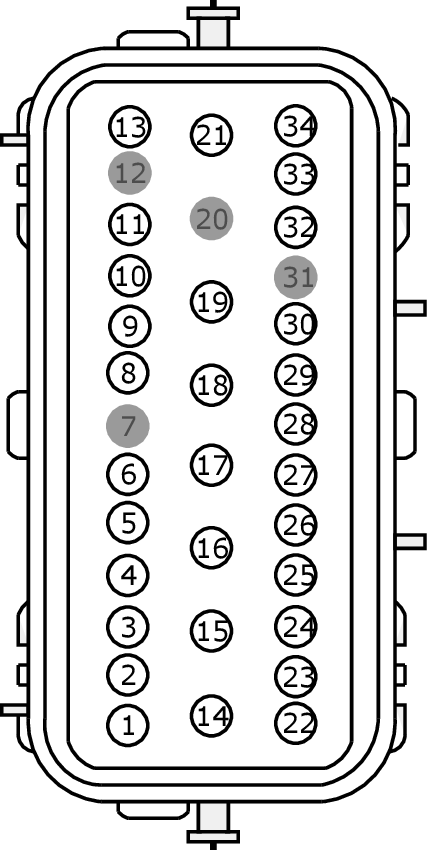

MALE
Harness 14B560

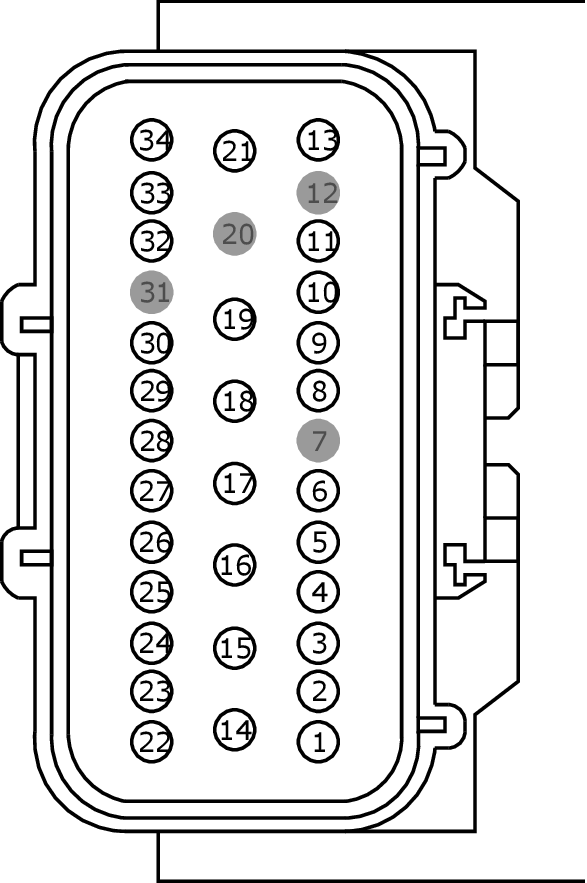

FEMALE
Harness 14B079
| Pin | Circuit | Gauge | Qualifier |
| 1 | CCB21 (GN-VT) | 22 | |
| 2 | CBX07 (GN-RD) | 22 | 14B079 |
| 2 | CBX07 (RD) | 22 | 14B560 |
| 2 | CBX07 (RD) | 26 | 14B560 |
| 3 | CE469 (WH-BN) | 22 | 14B560 |
| 3 | CMP18 (GN-WH) | 22 | 14B079 |
| 3 | CMP18 (GN-WH) | 26 | 14B560 |
| 4 | CMP32 (GN) | 22 | |
| 4 | CMP32 (GN) | 26 | 14B560 |
| 5 | CCB22 (WH) | 22 | 14B079 |
| 5 | CCB22 (WH-BN) | 22 | 14B560 |
| 6 | CCB24 (OG) | 22 | 14B079 |
| 6 | CCB24 (WH-OG) | 22 | 14B560 |
| 7 | * | * | |
| 8 | CCB20 (BU-WH) | 22 | |
| 9 | VLN04 (VT) | 22 | 14B560 |
| 9 | VLN04 (VT) | 26 | 14B560 |
| 9 | VLN04 (VT-GY) | 22 | |
| 10 | VDN07 (WH) | 22 | 14B560 |
| 10 | VDN07 (WH) | 26 | 14B560 |
| 10 | VDN07 (WH-VT) | 22 | 14B079 |
| 11 | CH253 (WH-BN) | 22 | 14B560 |
| 11 | CMP02 (BU) | 22 | 14B079 |
| 11 | CMP02 (BU) | 26 | 14B560 |
| 12 | * | * | 14B079 |
| 12 | CPK35 (YE) | 22 | 14B560 |
| 13 | CCB23 (VT) | 22 | 14B079 |
| 13 | CCB23 (VT-GN) | 22 | 14B560 |
| 14 | CCB25 (BN) | 20 | 14B560 |
| 14 | CCB25 (BN) | 22 | 14B079 |
| 15 | CE469 (BN-WH) | 22 | 14B560 |
| 15 | CE469 (WH-BN) | 22 | 14B560 |
| 15 | CET59 (GY-VT) | 22 | 14B560 |
| 15 | CET59 (VT-GY) | 22 | 14B079 |
| 15 | CH253 (BN-WH) | 20 | 14B079 |
| 15 | CH253 (BN-WH) | 22 | |
| 15 | CH253 (WH-BN) | 20 | 14B560 |
| 16 | GD214 (BK) | 20 | |
| 16 | GD214 (BK) | 22 | 14B560 |
| 16 | GD214 (BK-BU) | 20 | 14B079 |
| 16 | GD214 (BK-BU) | 22 | 14B079 |
| 17 | GD383 (BK-WH) | 20 | |
| 18 | GD214 (BK-BU) | 16 | |
| 18 | VPK05 (BN-GN) | 20 | |
| 19 | RPK05 (OG-YE) | 20 | 14B560 |
| 19 | RPK05 (YE-OG) | 20 | 14B079 |
| 20 | * | * | |
| 21 | SBB26 (YE-RD) | 16 | |
| 22 | CET53 (OG-BU) | 22 | |
| 23 | SBP12 (GN-RD) | 22 | |
| 24 | VET77 (GY-YE) | 18 | |
| 25 | VET76 (GN-OG) | 18 | 14B079 |
| 25 | VET76 (OG-GN) | 18 | |
| 26 | VET78 (VT-WH) | 18 | 14B079 |
| 26 | VET78 (WH-VT) | 18 | |
| 27 | CPL26 (GN-VT) | 22 | 14B560 |
| 27 | CPL26 (VT-GN) | 22 | 14B079 |
| 28 | CPL30 (BN-BU) | 18 | |
| 29 | CET82 (GN-VT) | 20 | 14B079 |
| 29 | CET82 (VT-GN) | 22 | 14B560 |
| 30 | CET83 (BU-OG) | 20 | 14B079 |
| 30 | CET83 (BU-OG) | 22 | 14B560 |
| 31 | * | * | |
| 32 | CE469 (BN) | 22 | 14B079 |
| 32 | CE469 (BN-WH) | 22 | 14B560 |
| 32 | CE469 (BN-WH) | 26 | 14B560 |
| 32 | CE469 (WH) | 26 | 14B560 |
| 32 | CMP18 (GN-WH) | 22 | 14B560 |
| 32 | CYT30 (GY-VT) | 22 | 14B560 |
| 32 | CYT30 (VT-GY) | 22 | 14B079 |
| 33 | VDB26 (GY-BU) | 22 | |
| 34 | VDB25 (GN-OG) | 22 |
