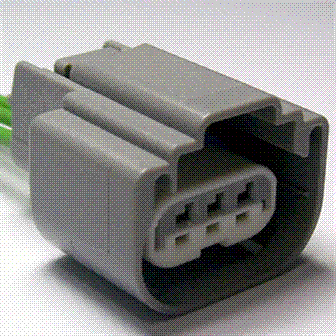

Connector End View (C149) - BRAKE BOOSTER VACUUM SENSOR
Connector: C149
Description
BRAKE BOOSTER VACUUM SENSOR
Color
Harness
12A581
Base Part #
#N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VCA38 (BN-VT) | 20 | SENSOR - BRAKE VACUUM SIGNAL 1 | |
| 2 | RCA37 (WH-BU) | 20 | CTRL MOD. - SENSOR BRAKE VACUUM - | |
| 3 | LCA37 (YE-OG) | 20 | CTRL MOD. - SENSOR BRAKE VACUUM + |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1337 |
Service Part Number: 9U2Z-14S411-AB Gauge: 16 Pin material: Silver Cavities: 3 Vehicle Uses Sensor - Brake Booster Travel Sensor - Brake Pressure Sensor - Brake Vacuum Sensor - Manifold Absolute Pressure (MAP) Sensor - Occupant Classification |
| Pigtail Kit Part Number WPT-1500 |
Service Part Number: 9U2Z-14S411-AC Gauge: 16 Pin material: Silver Cavities: 3 Vehicle Uses Lamp - Headlamp - High/Low Beam Sensor - Brake Booster Travel Sensor - Brake Pressure Sensor - Brake Vacuum Sensor - Delta Pressure Feedback EGR Sensor - Fuel Tank Pressure Transducer Sensor - Manifold Absolute Pressure (MAP) Sensor - Occupant Classification |
