Connector End View (C132) - AMBIENT AIR TEMPERATURE (AAT) SENSOR

Connector: C132

Description

AMBIENT AIR TEMPERATURE (AAT) SENSOR

Color

Harness

15K867

Base Part #

#N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE750 (GN-BU)	22	SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT)
1	VE750 (GN-BU)	18	SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT)	Lincoln
2	RE407 (YE-VT)	22	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)
2	RE407 (YE-VT)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)	Lincoln

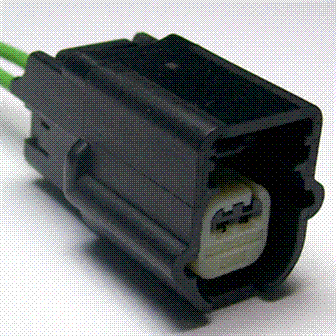

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1306

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-AGB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Sensor - Ambient Temp

Sensor - Side Impact
