Connector End View (C108) - KNOCK SENSOR 2 (KS2)

Connector: C108

Description

KNOCK SENSOR 2 (KS2)

Color

Harness

12C508

Base Part #

#N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE802 (BN-BU)	20	SENSOR - KNOCK 2ND BANK 1ST (KS2P) [KSL2+]
2	RE324 (BN-GN)	20	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 1ST (KS2N) [KSL2-]

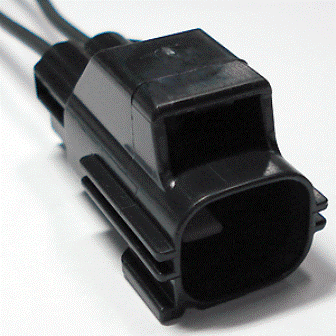

Available Pigtail Kits

Pigtail Kit Part Number

WPT-994

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-AXB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Sensor - Cam Shaft Position

Sensor - Knock
